Keysight Technologies 8904A FOR RENT

Multifunction Synthesizer

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: 8904A-RENT2

Mfg Part #: 8904A

$167.00 USD

Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Keysight Technologies Products

Overview :

Keysight 8904A Highlights

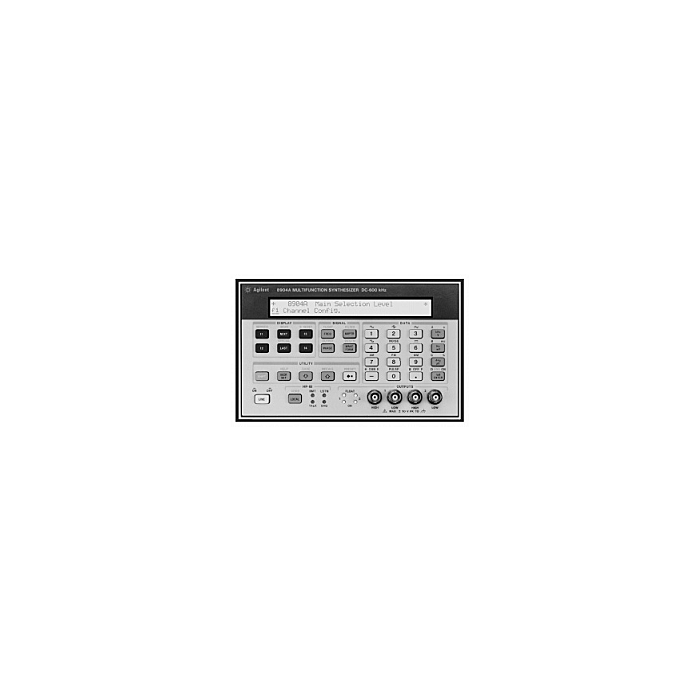

The Keysight 8904A multifunction synthesizer generates accurate sinewaves from 0 Hz to 600 kHz with 0.1 Hz resolution. The 8904A also has five other standard functions: square, triangle, ramp, from 0 Hz to 50 kHz plus dc, and Gaussian white noise. All waveform values in the 8904A are digitally calculated in real time by Keysight Technologies' Digital Waveform Synthesis IC yielding 12-bit digital accuracy. Full GPIB programmability is also included standard on the 8904A.

  • Sine to 600 kHz, square, ramp, triangle to 50 kHz
  • 12 bit direct digital synthesis
  • Tone, DTMF, digital, Hop Ram sequence modes
  • One or two outputs
  • One to four internal channels
  • AM, FM, Phi-M, DSBSC, and pulse modulation
  • Unit to unit phase synchronization
  • Option 001 adds three more identical internal synthesizers (channels) which can either modulate the first synthesizer or be summed to the output. Option 005 allows multiple 8904As to be phase synchronized for applications
