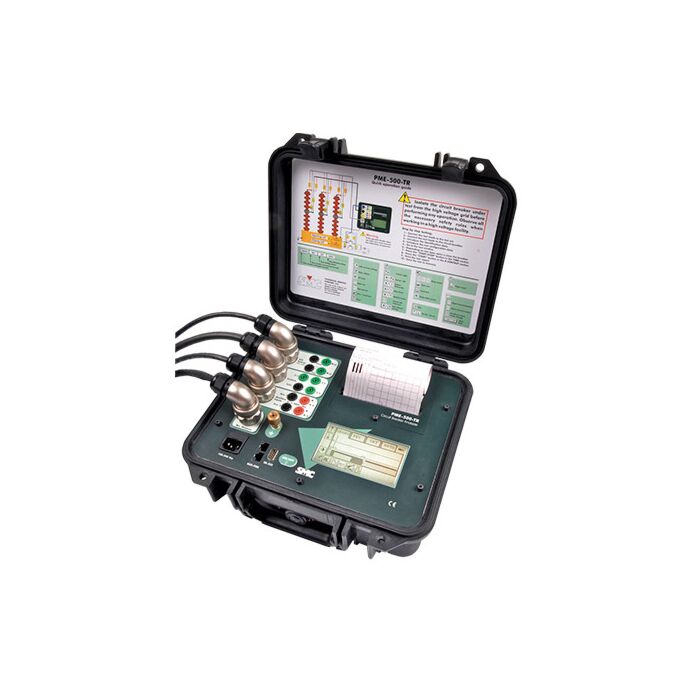

SMC PME-500-TR

High Voltage Circuit Breaker Analyzer ( 5 Meter Leads)

The PME-500-TR represents a breakthrough in the concept of testing, timing and condition-based analysis of medium- and high-voltage circuit breakers and combinations with disconnectors.

Order #: PME-500-TR

Mfg Part #: PME-500-TR

$9,435.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All SMC Products

Compare Products in this Series

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
SMC PME-500-TR TCP SMC PME-500-TR TCP

Thermal Chart Paper (200 foot roll)

Order #: PME-500-TR-TCP

Usually ships in 7-10 days

$15.00 USD
Add Items to Cart Add to Quote

SMC PME-TMP-SNS3 SMC PME-TMP-SNS3

Temperature probe - 3-meter cable

Order #: PME-TMP-SNS3

Usually ships in 7-10 days

$1,270.00 USD
Add Items to Cart Add to Quote

SMC PME-TMP-SNS10 SMC PME-TMP-SNS10

Temperature probe - 10-meter cable

Order #: PME-TMP-SNS10

Usually ships in 7-10 days

$1,450.00 USD
Add Items to Cart Add to Quote

SMC PME-20-PH SMC PME-20-PH

Phase Angle Meter

Order #: PME-20-PH

Usually ships in 7-10 days

$2,550.00 USD
Add Items to Cart Add to Quote

SMC PME-TCE SMC PME-TCE

Travel Analysis Option

Order #: PME-TCE

Usually ships in 7-10 days

$3,150.00 USD
Add Items to Cart Add to Quote

SMC PRIME 600 SMC PRIME 600

MicroOhmmeter

Order #: PRIME-600

Usually ships in 7-10 days

$7,645.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

Ultra-fast, error-free connections to the circuit breaker, and an intuitive, easy to learn graphical touch screen interface with multi-language menus, dramatically reduce the test time while increasing the analysis accuracy.

The built-in battery supplies power for 10 hours, eliminating the need for a generator in a shut-down substation, and provides clean, pure DC current for accurate four-wire contact resistance measurement of the three main contacts in a single test.

An optional plug-in module allows the integration of motion information like travel, speed, acceleration and contact sweep in the test report.

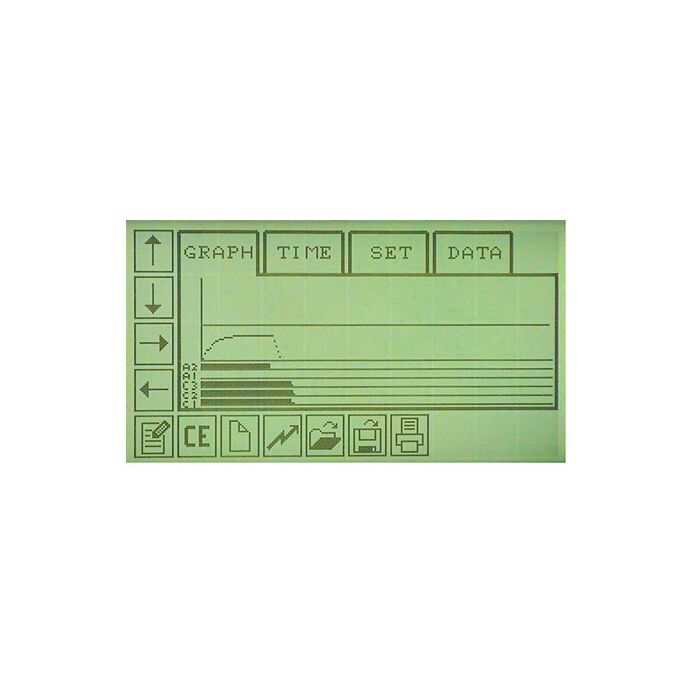

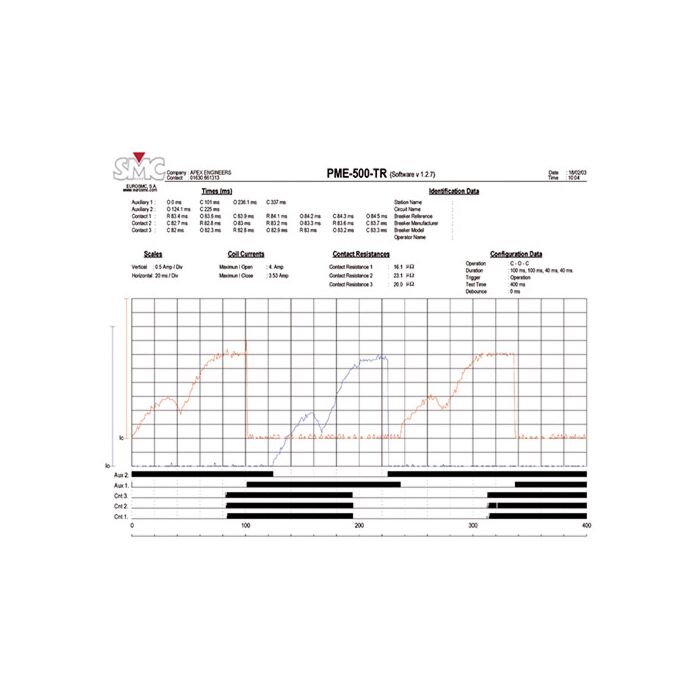

Test results are immediately displayed in tabular and graphical forms, and can be directly output by the built-in thermal printer, saved in flash memory for future reutilization and downloaded later on to a personal computer for archiving and export to various data interchange formats.

CHARACTERISTICS

  • 5 time measurement inputs.
  • Programmable test sequences:
  • C, O, C-O, O-C, C-O-C, O-C-O
  • Pure DC injection for contact resistance measurement.
  • Test sequence can also be triggered remotely.
  • Bult-in thermal graphic printer.
  • Non-volatile storage of up to 60 tests.
  • Results can be downloaded to a Windows PC.
  • Built-in rechargeable batteries up to 10-hour autonomy.
  • LCD touch-sensitive control panel with multi-language menus and graphical results display.
  • Test leads & accessories, PC software, transport bag, calibration certificate and user’s manual included.
  • Weight: 8 kg.

APPLICATIONS

  • Open- and Close-time measurement in main and auxiliary contacts.
  • Graphical and numerical evaluation of coil currents.
  • Three-phase, 4-wire measurement of contact resistance.
  • Substation’s auxiliary DC supply condition evaluation.
