Calibration Kit for Capacitive Coupling Clamp

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: CA HFK-RENT2

Mfg Part #: CA HFK

$111.00 USD

Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

Overview :

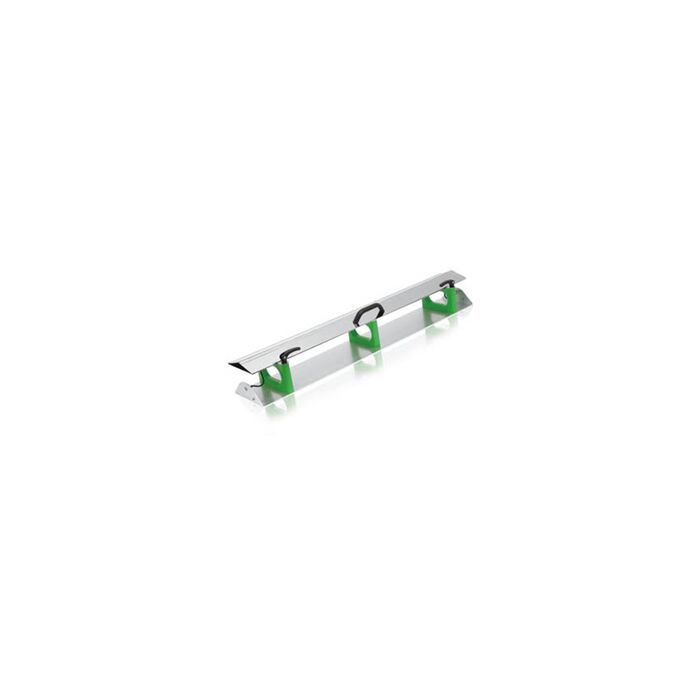

Emtest CA HFK Highlights

  • Flexible Transducer Plate 1050 x 120mm and Support Adapter
  • With CA MCF: Calibration adapter for fast transient pulses.
  • The HFK is used to couple EFT/burst pulses to I/O lines as required in different European and international standards for immunity testing

The coupling of the Electrical Fast Transients EFT/burst to signal lines can usually not be achieved by discrete capacitive coupling without interfering with the signal flow. It is often impossible to contact the required circuit (direct), e. g. coaxial or shielded cables. In this case the coupling is realized by the capacitive coupling clamp. The interference simulator can be connected on both sides of the coupling clamp. The IEC 61000-4-4 Ed 3.0 published 2012 recomends the calibration of the capacitive coupling clamp into a 50ohm coaxial load with the normative calibration kit CA HFK.
