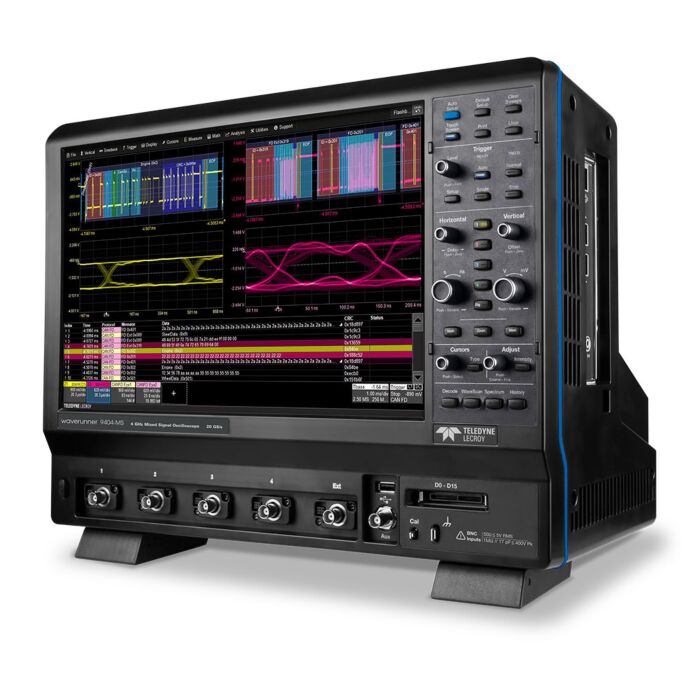

Lecroy WAVERUNNER 9104 for Rent, Oscilloscope, 1GHz Bandwidth, 4-Input Channels, 20 GS/s
1GHz Bandwidth,4-Input Channels 20 GS/s

Order #: WAVERUNNER 9104-RENT2

Mfg #: WAVERUNNER 9104-RENT2

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Lecroy WAVERUNNER 9104 for Rent, Oscilloscope, 1GHz Bandwidth, 4-Input Channels, 20 GS/s

1GHz Bandwidth,4-Input Channels 20 GS/s

Order #: WAVERUNNER 9104-RENT2

Mfg #: WAVERUNNER 9104-RENT2

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Key Features

  • 500 MHz - 4 GHz bandwidths
  • Up to 40 GS/s sample rate
  • 15.4" capacitive touch screen
  • MAUI with OneTouch
  • Powerful, Deep Toolbox
  • Exceptional Serial Data Tools
  • 16 digital channels with 1.25 GS/s
  • Huge Applied Offset Range
  • Optional Application Packages

MAUI with OneTouch

MAUI - Most Advanced User Interface puts all the power and capabilities of the oscilloscope right at your fingertips. Designed for touch, built for simplicity, and made to solve. MAUI with OneTouch incorporates drag, drop and flick to provide unsurpassed efficiency in oscilloscope operation.

Powerful, Deep Toolbox

Our waveshape analysis tools and application packages provide unparalleled insight. Combine our powerful, deep toolbox with up to 64 Mpts/ch of acquisition memory and the most powerful motherboard in its class - an Intel® CoreTM i5-6500 Quad (core), 3.2 GHz, with up to 16 GB of RAM.

Exceptional Serial Data Tools

Up to 29 standards supported - all with the industry's best serial decoder. Many are provided with high performance triggers, unique measure and graph tools for validation efficiency (including a software serial DAC), and eye diagrams and physical layer testing tools. Access the most complete set of serial data analysis tools (SDAIII) to form eye diagrams and decompose jitter into Tj, Rj, Dj and beyond.

Powerful Mixed Signal Capabilities

Teledyne LeCroy's WaveRunner 9000-MS mixed signal oscilloscope combines the high-performance analog channels of the WaveRunner 9000 with the flexibility of 16 digital inputs. In addition, the many triggering and decoding options turn the WaveRunner 9000-MS into an all-in-one analog, digital, serial debug machine.

Huge Applied Offset Range

A 16-bit offset DAC permits ±10 V offset at 20 mV/div, ±4 V at 5 mV/div, and an amazing ±1.6 V offset at the highest sensitivity (1 mV/div). Such large applied offsets make it easy to acquire and view small signal variations (e.g. ripple, noise, transient interference) on DC or sensor signals. They also provide extended offset ranges for many of Teledyne LeCroy's high voltage probes.

"M" Models for Maximum Sample Rate and Memory

An industry leading 40 GS/s sample rate allows for a detailed edge reconstruction even for signals with the fastest rise times. Long memory allows for maximum sample rate to be maintained in longer timebases. 64 Mpts of memory is ideal for debugging long term behavior on high speed serial data buses.

WaveRunner 8000-R 2U Form Factor Models

WaveRunner 8254M-R and WaveRunner 8404M-R oscilloscopes utilize the WaveRunner 9000 acquisition system to provide a high-performance, 4 GHz oscilloscope in a convenient, low-profile form factor.

Transcat Rentals - Rent Equipment from the Industry Leader
   Try Before You Buy
   Save Time & Money
   Weekly and Monthly Rentals
   Access Our Large Inventory
   Long-term Discounts and Rent-to-Buy Options Available

Shop all Rentals

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

Vertical System

DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±(1%) FS, offset at 0 V


Vertical - Analog Channels

Analog Bandwidth (Max) 1 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) 1 GHz
(≥2 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) 500 MHz (typical)
Rise Time (10-90%, 50 Ω) 415 ps (typical)
Rise Time (20-80%, 50 Ω) 290 ps (typical)
Input Channels 4
Vertical Resolution 8 bits; up to 11 bits with enhanced resolution (ERES)
Effective Number of Bits (ENOB) 6.9
Vertical Noise Floor (1 mV/div) 165 uVms
Vertical Noise Floor (2 mV/div) 165 uVms
Vertical Noise Floor (5 mV/div) 177 uVrms
Vertical Noise Floor (10 mV/div) 247 uVrms
Vertical Noise Floor (20 mV/div) 406 uVrms
Vertical Noise Floor (50 mV/div) 0.95 mVrms
Vertical Noise Floor (100 mV/div) 1.83 mVrms
Vertical Noise Floor (200 mV/div) 4.18 mVrms
Vertical Noise Floor (500 mV/div) 9.58 mVrms
Vertical Noise Floor (1 V/div) 18.52 mVrms
Sensitivity 50 Ω: 1 mV-1 V/div, fully variable;
1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±(1%) F.S, offset at 0 V
Channel-Channel Isolation DC up to rated BW: 40 dB (>100:1),
(For any two ProBus input channels, same v/div settings, typical)
Offset Range 50 Ω
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±10 V @ 20 mV - 1 V/div

1 MΩ
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±16 V @ 20 mV - 100 mV/div
±80 V @ 102 mV - 1.0 V/div
±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy ±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)
Maximum Input Voltage 50 Ω: 5V RMS ± 10V peak
1 MΩ: 400 V max. (DC + peak AC < 10 kHz)
Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance 50 Ω+/-2% or 1 MΩ||17pF, 10 MΩ || 9.5 pF with supplied Probe
Bandwidth Limiters 20MHz, 200MHz
Rescaling Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.


Horizontal - Analog Channels

Timebases Internal timebase common to 4 input channels; an external clock may be applied at the EXT input
Acquisition Modes Real-time, Roll, Random Interleaved Sampling (RIS), Sequence
Time/Division Range 20 ps/div - 1.6 ks/div
RIS available at ≤ 10 ns/div;
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s
Clock Accuracy <=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Sample Clock Jitter up to 10µs Acquired Time Range:
100fsrms (Internal Timebase Reference)

up to 10ms Acquired Time Range:
360fsrms (Internal Timebase Reference)
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input) 10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output) 10MHz, 3.0 dBm +/-1 dBm, sinewave synchronized to reference being used (internal or external reference)
External Clock DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.


Acquisition - Analog Channels

Sample Rate (Single-shot) 10 GS/s on 4Ch
20 GS/s on 2 Ch
Sample Rate (Repetitive) 200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Memory Length (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
16M / 32M / 32M
(5,000)
Intersegment Time 1 µs
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES) From 8.5 to 11 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
Interpolation Linear or Sin x/x (2 pt and 5 pt)


Triggering System

Modes Normal, Auto, Single, and Stop
Sources Any input channel, Ext, Ext/10, Line or Fast Edge; slope and level unique to each source (except line trigger)
Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter ≤ 3.5 ps RMS (typical)
<0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range ±4.1 div from center (typical)
External Trigger Level Range Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs 2 div @ < 1 GHz
1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling, ≥ 10 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input) 2 div @ <1 GHz
1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger 1.0 GHz @ ≥ 10 mV/div
(minimum triggerable width 750 ps)


Trigger Types

Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Width Triggers on positive or negative glitches with selectable widths.
Minimum width 500 ps, maximum width: 20 s
Glitch Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Window Triggers when signal exits a window defined by adjustable thresholds
Pattern Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don
