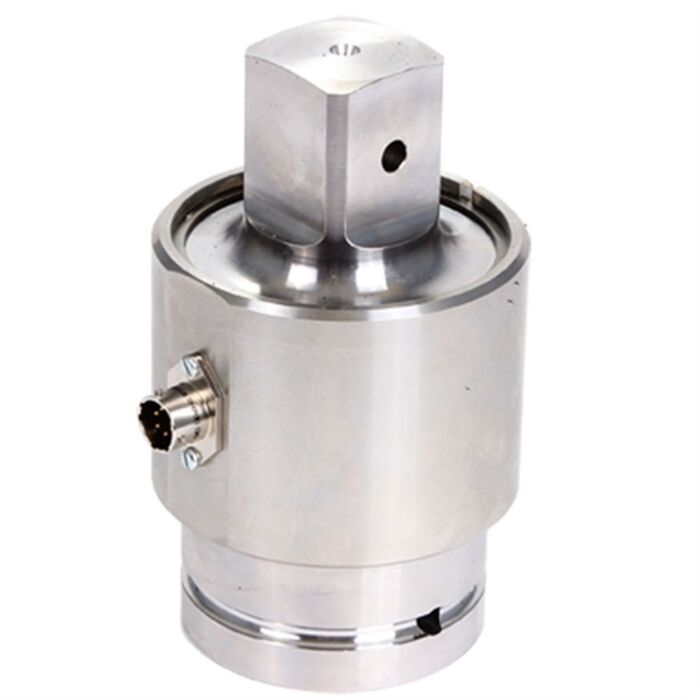

Norbar Torque Tools 50703.LOG

Smart Static Transducer 2500Nm,1-1/2"M/F Drive

Order #: 50703.LOG

Mfg #: 50703.LOG

Special Price $4,164.00 Regular Price $4,382.33
The accuracy and quality of the Norbar Static Torque Transducer has made them the first choice of many calibration laboratories thoughout the world.
Availability: Item ships in about 2 - 3 Weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Accuracy: ±0.5%
  • Operates between: 250.0 - 2500.0 N·m
  • Weight: 4.6 Kg
  • Temp Range Operating: -10°C to +50°C
  • Temp Range Storage: -20°C to +70°C
  • Thermal Effect On Span: < +/- 0.03%/°C
  • Thermal Effect On Zero: < +/- 0.01%/°C
  • Torsional Deflection: < 1°
  • Fatigue: > 10 exp 7 cycles
  • Maximum Torsion Capacity: 150%
  • Connector: 6 Way Mil Spec
  • Drive 1: 1 1/2" Male Square
  • Drive 2: 1 1/2" Female Square
  • Robust, heat treated, alloy steel torsion shaft design.
  • Designed to ignore non torsional forces.
  • Operates in clockwise and anti-clockwise directions.
  • Calibrated in clockwise direction as standard. Anti-clockwise calibration provided on request.
  • 'SMART' transducers have a built in memory circuit which contains essential information about the transducer. This information can be read by Norbar's 'Pro-Log' instrument meaning that when the transducer is connected, it is immediately recognized and ready for use. When ordering for a Pro-Log, use part code suffix '.LOG' (eg. 50659.LOG) if you require a torque units calibration certificate.
  • 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
  • Calibration up to 100,000 N·m with UKAS Certificate.
