NOSHOK 604-MFS
600 Series 1/2" NPTM - 1/2" NPT F SS Hard Seat Block & Bleed V
Order #: 604-MFS
Mfg #: 604-MFS
Special Price
$270.36
Regular Price
$281.63
NOSHOK 604-MFS
600 Series 1/2" NPTM - 1/2" NPT F SS Hard Seat Block & Bleed V
Order #: 604-MFS
Mfg #: 604-MFS
Special Price
$270.36
Regular Price
$281.63
Availability: Call for availability
Product Highlights

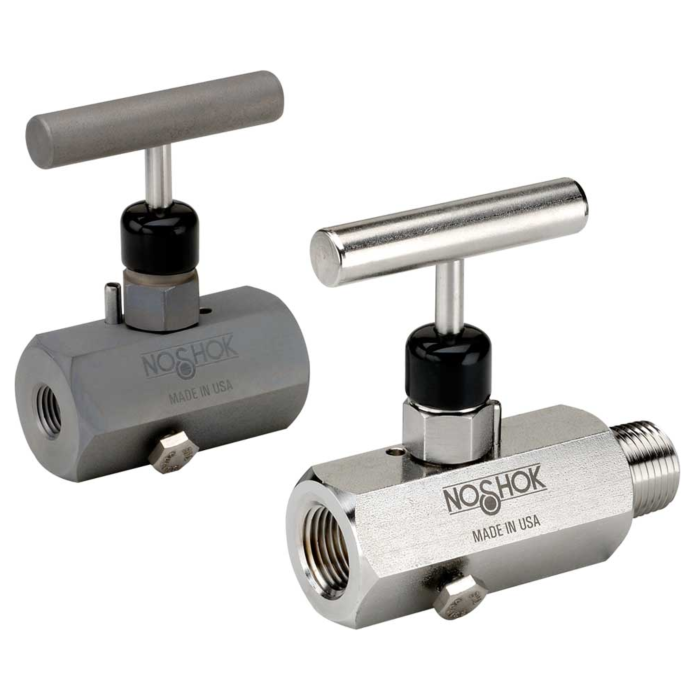

- 1/2" NPT M - F Hard Seat 316SS Block & Bleed Valve
- Block & bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- 10,000 PSI pressure rating @ 200°F
- Blow-out proof stem provides a secondary stem seal in the full open position
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Grafoil® packing optional
- All stems are 316 stainless steel
- All stem threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Vinyl dust cap for bonnet and stem (non-packing)
- 0.090" bleed hole located on the bottom is controlled by a 1/4"-20 UNF-2A bleed screw
