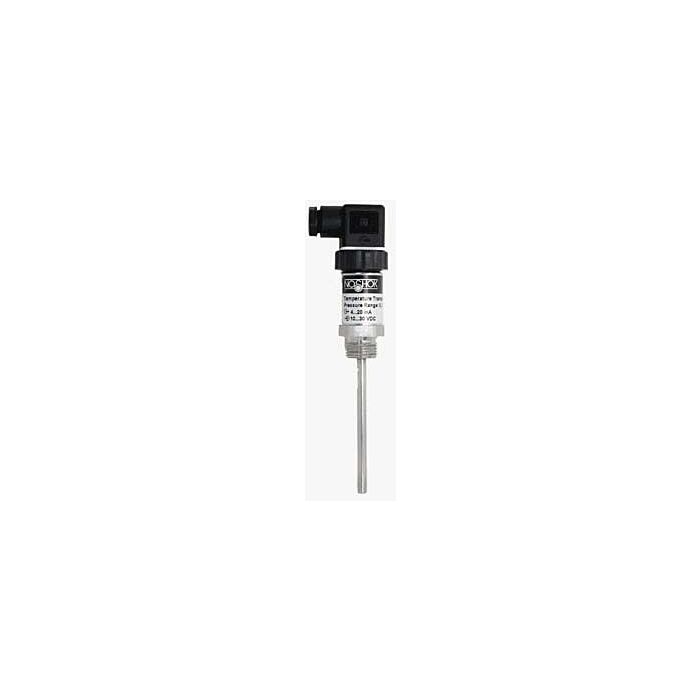

NOSHOK 800-25/125-1-1-8-8-040-6

Order # 800-25/125-1-1-8-8-040-6 | Mfg # 800-25/125-1-1-8-8-040-6
Save 4%
$321.33
$308.47
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Output signal : 4 mA to 20mA - 2 wire, 10 Vdc to 30 Vdc - 3 wire
  • Temperature ranges : Standard ranges from -40 °F to 1000 °F
  • Accuracy : Class B (±0.5 % Full Scale)
  • Sensor protection : Burnout protected from 3.3 mA to 23 mA
  • Power supply : 10 Vdc to 30 Vdc for 4 mA to 20 mA, 14 Vdc to 30 Vdc for 0 Vdc to 10 Vdc
  • Wetted materials : 316 stainless steel
  • Case material : 316 stainless steel
  • Ambient Temperature : -40 °F to 185 °F (-40 °C to 85 °C)
  • Storage Temperature : -40 °F to 185 °F (-40 °C to 85 °C)
  • Environmental rating : IP65 according to EN 60529/IEC529
  • Electromagnetic rating : CE compliant to EMC norm EN 61326:1997/A1:1998 RFI, EMI and ESD protection
  • Electrical protection : Reverse polarity, over-voltage and short circuit protection
  • Weight : Approximately 4 oz

Technical Resources

Noshok Platinum Resistance Temperature Transmitter Series 800 Datasheet
