Fluke FiberInspector™ Fiber Scope

Fluke Networks’ FI-7000 FiberInspector Pro allows you to inspect and certify end-faces in 2 seconds so you can get the job done the first time. Automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.

Add the FiberInspector Pro to any unit in the Versiv family of cable testers to add dirt inspection capabilities to your cable and fiber optic certification process.

Why Buy the Fluke FiberInspector Pro from Transcat? Service. Selection. Price.

Transcat is a leading supplier of Fluke Networks Tools, and can offer short or long term rentals on the most popular products. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!





Ordering Guide: Standalone Fiber Inspector or Add-On Versiv Probe

The Fluke Networks FiberInspector Pro can be ordered as both a standalone handheld fiber optic inspection tool, or as an add-on fiber inspection video scope for an existing Versiv mainframe.

ModelDescription

Standalone Fiber Optic Tester - Includes Versiv Mainframe

FI-7000 The FI-7000 FiberInspector Pro contains: Versiv Mainframe, USB Fiber Inspection Video Probe with 4 tips in a box (LC, FC/SC bulkhead, 1.25 and 2.5mm universal), Blank Module to protect the mainframe’s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Versiv Open Source Software CD, Getting Started Guide, Soft Carrying Case.

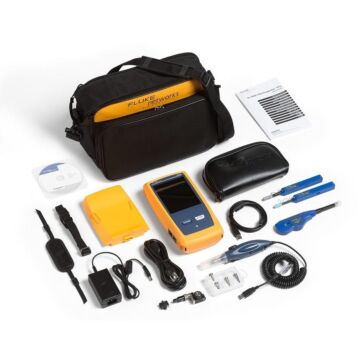

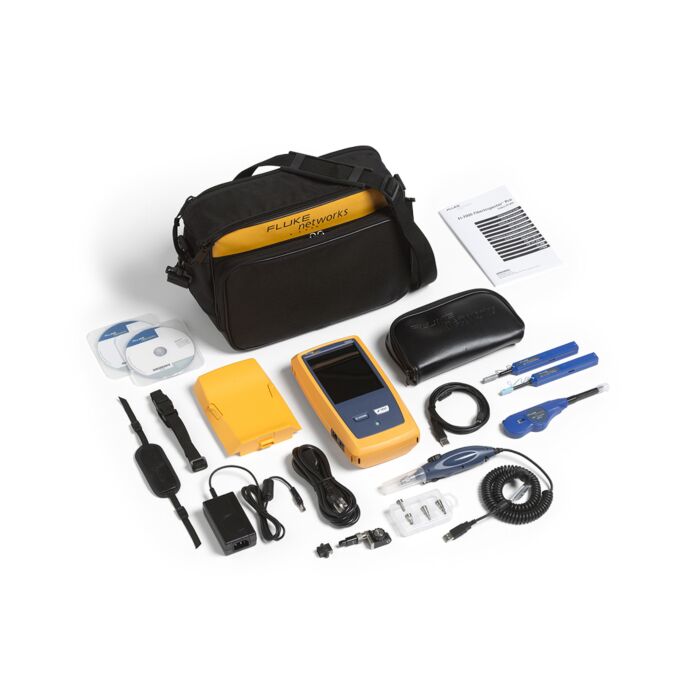

FI-7000-MPO The FI-7000 FiberInspector Pro with MPO tip and cleaning contains: Versiv Mainframe, USB Fiber Inspection Video Probe with 4 tips in a box (LC, FC/SC bulkhead, 1.25 and 2.5mm universal), MPO Fiber Inspection Adapter Tip, OneClick Cleaners for 1.25mm & 2.5mm ferrules and MPO connectors, Blank Module to protect the mainframe’s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Versiv Open Source Software CD, Getting Started Guide, Soft Carrying Case.

Fiber Inspection Probe - Added to Versiv Mainframe for Fiber Optic Scope Functionality

FI-1000 A USB Fiber Inspection Video probe which works with the Versiv products (CertiFiber Pro, OptiFiber Pro, DSX CableAnalyzer and OneTouch AT Network Assistant).
FI-1000-KIT A USB Fiber Inspection Video probe for Versiv products plus tip set (LC, FC/SC bulkhead, 1.25 and 2.5mm universal tips in a box).



Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Fluke Networks FT500 Fluke Networks FT500

Fiber Inspector Mini Video Microscope

Order #: FT500

Usually ships in 7-10 days

$2,085.00 USD
Add Items to Cart Add to Quote

Fluke Networks FT525 Fluke Networks FT525

FiberInspector Mini (r) and Cleaning Kit

Order #: FT525

Usually ships in 7-10 days

$2,315.00 USD
Add Items to Cart Add to Quote

Overview :

Fiber optic connector end-face contamination is a leading cause of fiber failures. Dirt and contaminant cause insertion loss and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time consuming and inaccurate.

Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one fiber optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated fiber optic connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep fiber optic connector end-faces clean. Avoiding this common cause of failure, starts with inspecting the fiber optic connector end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment.

The FI-7000 FiberInspector Pro is a fiber optic inspection scope that allows you to inspect and certify fiber optic connector end-faces in 2 seconds so you can get the job done the first time. This fiber optic inspection scope provides automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.

Product Highlights

  • Automated Pass/Fail certification of fiber optic connector end-faces
  • Graphical indication of problem areas due to contamination, pits, chips, and scratches
  • Certify to industry standards - IEC 61300-3-35
  • Eliminate human subjectivity from fiber optic connector end-face measurements
  • Save fiber optic connector end-face views during certification process

Specifications :

Specifications

Technical Specifications

Inspection Probe specifications
2M pixelsBlue LED
Light sourceBlue LED
Power sourceVersiv mainframe
Field of View (FOV)Horizontal: 425 µm
Vertical: 320 µm
Minimum detectable particle size0.5 µm
DimensionsApproximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip
Weight200 g
Temperature rangeOperating: 32°F to 122°F (0 °C to +50 °C)
Storage: -4°F to +158°F (-20°C to +70°C)
CertificationsCE

General specifications
WeightMainframe with module and battery: 3 lbs, 5 oz (1.28 kg)
DimensionsMainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm)
BatteryLithium ion battery pack, 7.2 volts
Battery lifeEleven hour with Inspection probe attached

Charge Time
Tester OffFour hours to charge from 10% to 90% capacity
Tester OnSix hours to charge from 10% to 90% capacity with the tester on

Environmental specifications
Operating temperature*-18ºC to 45ºC
Non-operating temperature-30ºC to 60ºC
Operating altitude4,000 m (13123 ft)
3200 m (10,500 ft) with ac adapter
Storage altitude12,000 m
EMCEN 61326-1

* Do not keep battery at temperatures below -20°C (-4°F) or above 50°C (122°F) for periods longer than one week to maintain battery capacity.
