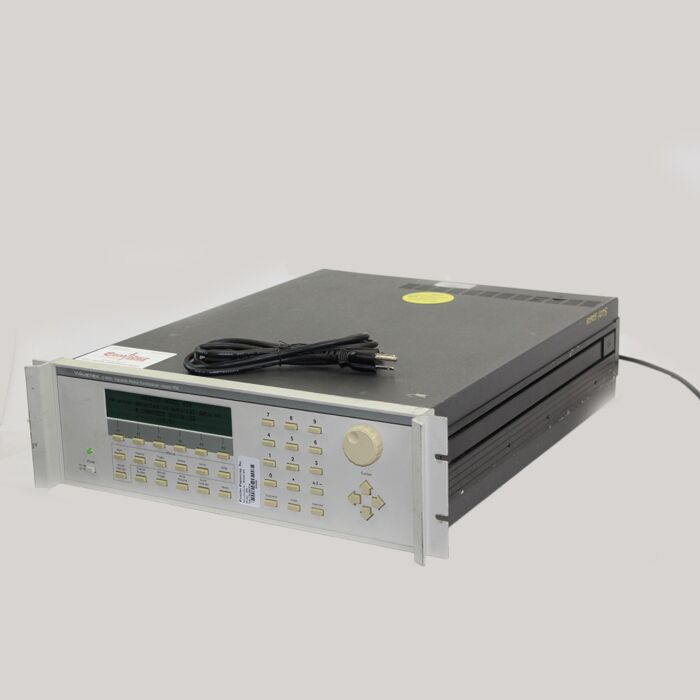

Used Wavetek 650 2MHz Variable Phase Synthesizer, 30MHz, 2 Channel, 200 MSa/s

Product Highlights

Model 650 represents the ultimate in variable phase generator design. The instrument combines superb phase accuracy, synthesizer frequency accuracy, high output amplitude capability and excellent stability. The standard model has two channels which can be expanded to four. As many as ten Model 650's can be cascaded to obtain 40 channels of phase controlled signals. In addition to sine waves, each output can be independently programmed to square, triangle and variable duty-cycle square and ramp waveforms.

• 2 MHz
• Amplitude Accuracy: +/- 0.5% below 100 kHz
• Frequency Accuracy: 5 ppm
• Frequency Resolution: 10 digits or 100 uHz
• At 50 Vp-p, Output Voltage Resolution: 1 mV
