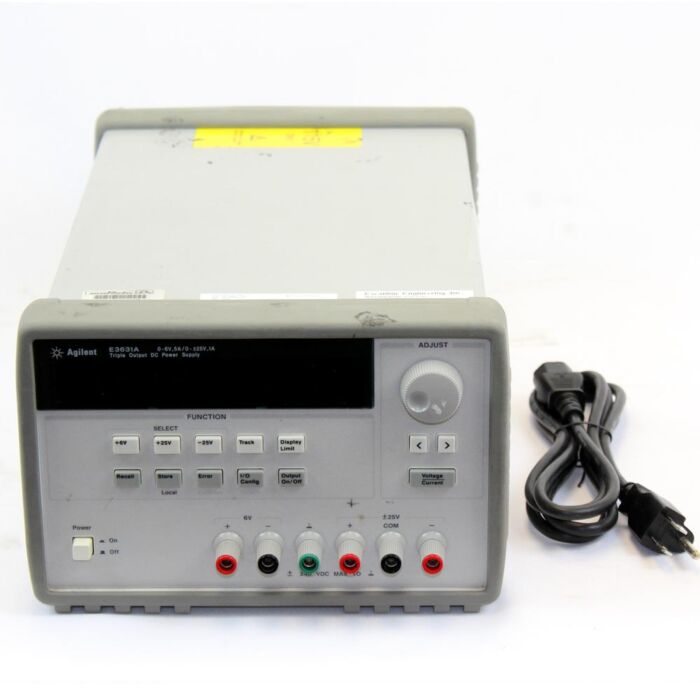

Used Keysight / Agilent E3631A Triple Output DC Power Supply, 6V, 5A and +/-25V, 1A, 80W

Product Highlights

Output Ratings

• Output 1: 0 to 6 V, 0 to 5 A
• Output 2: 0 to +25 V, 0 to 1 A
• Output 3: 0 to -25 V, 0 to 1 A

Programming Accuracy at 25°C ±5°C

• Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
• + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA

Ripple & Noise (20 Hz to 20 MHz)

• Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
• Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms
• Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms

Readback Accuracy at 25°C ±5°C

• Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
• Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
