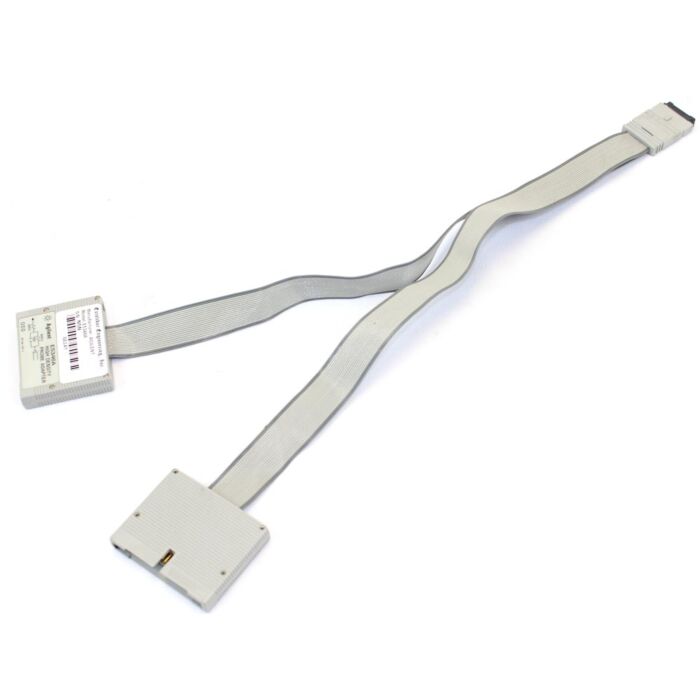

Used Keysight / Agilent E5346A High Density Adaptor Cables

Product Highlights

The Keysight E5336A Mictor probe provides a convenient and reliable connection to your target through a Mictor connector designed into your target. Route your signals of interest to the location containing the Mictor connector and when you are ready to measure these signals simply plug-in the Mictor probe. These probes can be used with a support shroud in environments where accidental unplugging of the probe is a concern. This probe can be used with any Keysight logic analyzer with a 40-pin cable connector.

Signal Access

• 34 channels: 32 single-ended data, 2 single-ended clock

Probe Performance

• 3.0 pF equivalent load capacitance
• Equivalent to the logic analyzer data rate the probe is attached to
• Measure signals with as little as 500 mV p-p signal amplitude

Connectivity

• Provides convenient, reliable connection to target through Mictor connector
• Mictor connector is easy to incorporate into your design, Keysight number 1252-7431 or AMP number 2-767004-2
• Can be used with support shroud

Compatible With:

• Logic analyzers with 40-pin cable connectors Logic Analyzer Cable Connectors
• Support shrouds available for board thickness to 0.12 inches
• 38-pin Mictor footprint
