Fluke 8810A Highlights

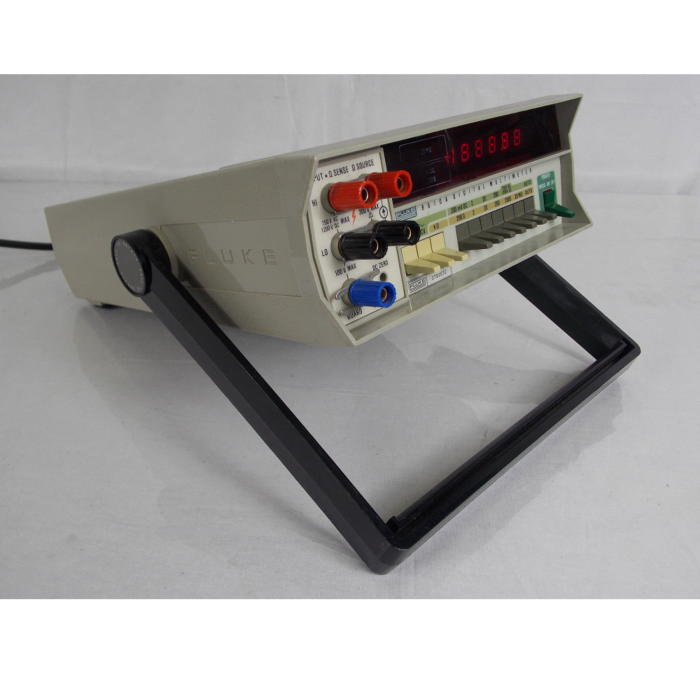

The Fluke 8810A is a low cost, 5½-digit voltmeter/DMM. It is a high precision autoranging meter that offers a number of options. With the basic configuration, the 8810A is a voltmeter. Options add resistance, AC voltage, and TRMS measurement.

• Ranges: ±200 mV, ±2 V, ±20 V, ±200 V, ±1200 V
• DC input resistance: On 200 mV to 20 V range is ≥1000 MΩ, on 200 V to 1200 V range is 10 MΩ
• Normal Mode Noise Rejection: ≥60 dB
• Common Mode Noise Rejection: ≥120 dB
• Resolution: 1 µV on 200 mV range
• Overload protection on 200 mV to 20 V range: ±1000 Vdc, 1400 Vpeak ac
• Overload protection on 200 V, 1200 V range: ±1200 Vdc, 1700 Vpeak ac
• Offset current: <15 pA
• Full autoranging (rated at 600 ms maximum per range change) or manual ranging
• Automatic bipolar, + or - display
• Reading rate: 2.5 readings per second, within the same range
• MTBF: 10,000 hours calculated, minimum
• Maximum Common Mode Voltage: 1000 VDC or peak AC
• Maximum Lo to GUARD Voltage: 100 VDC or peak AC
• Data Output Unit (Option 002)
• Available data: Digits, Polarity, Range
• Data output form: Isolated BCD, with compatible TTL/DTL levels
• Data coding: 8-4-2-1 BCD positive-true parallel
• Drive capability: All outputs an drive a minimum of two TTL loads
• Flags: Busy, not Busy, Overload
• Controls: External trigger, external trigger enable, +5 V reference
• Ohms Converter (Option 007)
• Ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2000 kΩ, 20 MΩ
• Resolution: 1 mΩ on 200 Ω range
• Overvoltage protection: 300 Vrms or dc, applied continously to any range
• Maximum open circuit voltage: 3.3 V
• Response time: 1.0 s maximum to displayed input on 200 Ω to 200 kΩ range
• AC Converter (Option 008)
• Ranges: 2 V, 20 V, 200 V, 750 V
• Input impedance: 2 MΩ shunted by <100 pF
• Resolution: 10 µV on 2 V range
• Overload protection: 750 Vdc or rms sinewave, not to exceed 2 x 107 volts hertz product
• TRMS Converter (Option 009)
• Ranges: 2 V, 20 V, 200 V, and 750 V
• Resolution: 10 µV
• AC input impedance: 1 MΩ in parallel with 100 pF
• Crest factor: 3.0
• Response time: 1.5 s
• Overload protection: 500 Vdc or 750 Vrms or 1100 Vpea
