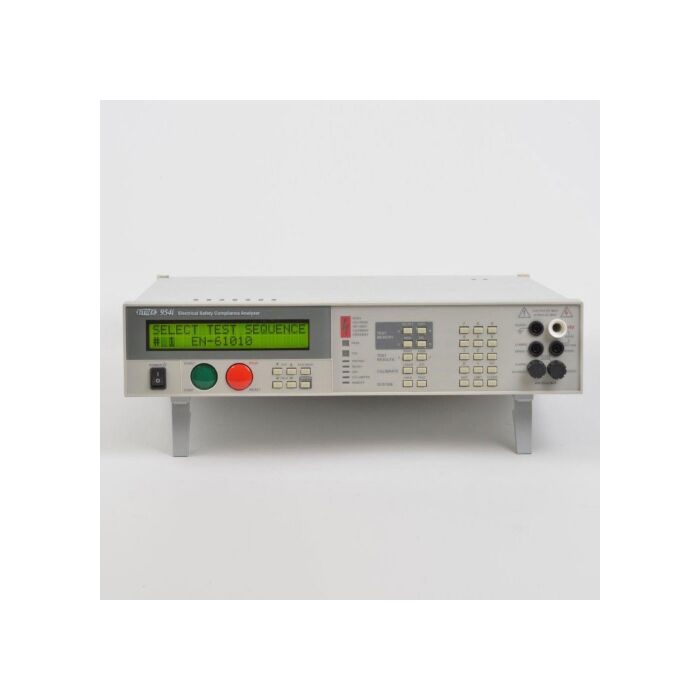

Vitrek 954I

11KVDC 6KVAC/IR/GB/LR Electric Safety Compliance Analyzer

Order #: 954I

Mfg Part #: 954I

$6,195.00 USD

Ships in 2-3 weeks

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Vitrek Products

Compare Products in this Series

Vitrek 951I Vitrek 951I

6KV AC/DC/IR/LR Electrical Safety Compliance Analyzer

Order #: 951I

Ships in 2-3 weeks

$4,550.00 USD
Add Items to Cart Add to Quote

Vitrek 952I Vitrek 952I

6KV AC/DC/IR/GB/LR Electrical Safety Compliance Analyzer

Order #: 952I

Ships in 2-3 weeks

$5,195.00 USD
Add Items to Cart Add to Quote

Vitrek 953I Vitrek 953I

11KVDC 6KVAC/IR/LR Electrical Safety Compliance Analyzer

Order #: 953I

Ships in 2-3 weeks

$5,395.00 USD
Add Items to Cart Add to Quote

Vitrek 955I Vitrek 955I

11KVDC 10KVAC/IR/LR Electrical Safety Compliance Analyzer

Order #: 955I

Ships in 2-3 weeks

$6,195.00 USD
Add Items to Cart Add to Quote

Vitrek 957I Vitrek 957I

15KVDC 6KVAC/IR/LR Electrical Safety Compliance Analyzer

Order #: 957I

Ships in 2-3 weeks

$6,195.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlihgts

  • Highest Level of Operator Safety – features include: GFI High speed shut down for earth ground leakage faults, SFI™ Safety Fault Interlock – High speed shut down output for interruption of safety interlock, TLSS™ Test Lead Safety Sense – Clamps DUT chassis near ground by continuously verifying proper connection of test leads prior to and during HV testing, Recessed start switch prevents inadvertent actuation
  • High Power Output – means better drive capability and increased test throughout. With up to 50mA of sourcing current for DC hipot the 95X Series gets heavy duty jobs done fast – available 100mA & 200mA AC drive tackles even the toughest sourcing requirements
  • Wide Range of built-in Voltage Capabilities – Choose from 6.5KVDC, 11KVDC or 15KVDC and 6KVAC, 10KVAC or up to 30KV RMS AC with external option
  • The Fastest Hipot Testers available – Thanks to our Dual Coldfire® microprocessors combined with Dual DSPs to provide Ramp rates up to 50KV/second, dwell times as low as 20mS and overall test times as fast as 3mS in optional Flash mode
  • Expansive Test Sequence Memory holds up to 100 tests with up to 100 steps per test. Tests can be selected via front panel, Ethernet, RS232, Digital I/O or with optional GPIB
  • Ground Bond Test Capability available in three models with output currents from 100mA to 40Amps RMS and test times from 20mS to 1000 seconds or longer
  • 4-Wire Milli-Ohmmeter Function provides fast, accurate 5 digit resistance measurements with resolution down to 100µΩ and range up to 100K ohms
  • Built-in Phase Angle Measurement – allows the measurement and display of both resistive (in-phase) leakage current and reactive (out-of-phase) leakage current caused by capacitive coupling
  • Multi-Dwell Functionality – permits dwells at different voltage levels without having to return to zero between test steps – dramatically simplifying advanced analysis of dielectric properties
  • Ramp High/Dwell Low Current Limits – permits the user to set separate limits for the ramp and dwell providing faster ramp times and lower leakage test limits
  • Ethernet, RS232, Digital I/O, USB Printer & Scanner Control – All Standard Interfaces – Provides the highest level of test automation. GPIB optional
  • High Voltage Scanner Control – up to 256 point switching capability with available 964i HV Scanners. Route voltages up to 15KV and currents up to 40A for multi-point hipot and ground bond tests
  • Dual Dimensional / Test Specific / Broadband Arc Detection. Where lesser testers allow you to set a single, global, amplitude only arc limit – the technologically advanced 95X Series utilizes time & amplitude based arc limits and uniquely applies them to each desired test
  • Pico-Amp Leakage Measurement insures that even the lowest leakage current levels are accurately detected and tera-ohm range IR readings are stable and precise
  • Test Specific Fixture & Cable Compensation – Automatically calibrate out offset errors caused by lead resistance, fixture capacitance and leakage
  • Multi-Mode IR – Insulation Resistance values up to one Tera-ohm can be obtained with precision in your choice of 3 IR test modes – end on time, end on pass or end on fail
  • Continuously Variable IR Test Voltage – Unlike most IR testers which limit you to 3 or 4 discrete test voltages, the 950i Series allows you to select the test voltage you need. Starting as low as 20V all the way to 6.5KV, 11KV or 15KVDC
  • Capacitance Test Modes – For AC & DC hipot and IR provide tightly controlled charge and discharge profiles for superior results on critical solar panel tests and other highly capacitive loads
  • Light Weight Switching Power Supply Design – Better reliability, easier on your back. Compare the 8.2 kg 95X to whatever you've been using
  • 400Hz AC Voltage Withstand Testing provides aviation frequency specific test results for a more effective analysis of dielectric properties on avionic components
  • Solar Panel Testing Simplified – Designed with PV testing in mind, the 950i Series uses pico-amp resolution to detect minute defects in solar cells
  • 3 Year Extended Warranty – 1 year standard, total of 3 years extended warranty with registration and annual factory calibration. Built-in reliability you can count on for years to come
  • Safety Tested per EN 61010-1. EMC compliant to EN 61326-1

Each Unit Includes

  • Alligator test leads
  • NIST traceable calibration certificate with no data
  • power cord and operator's manual
