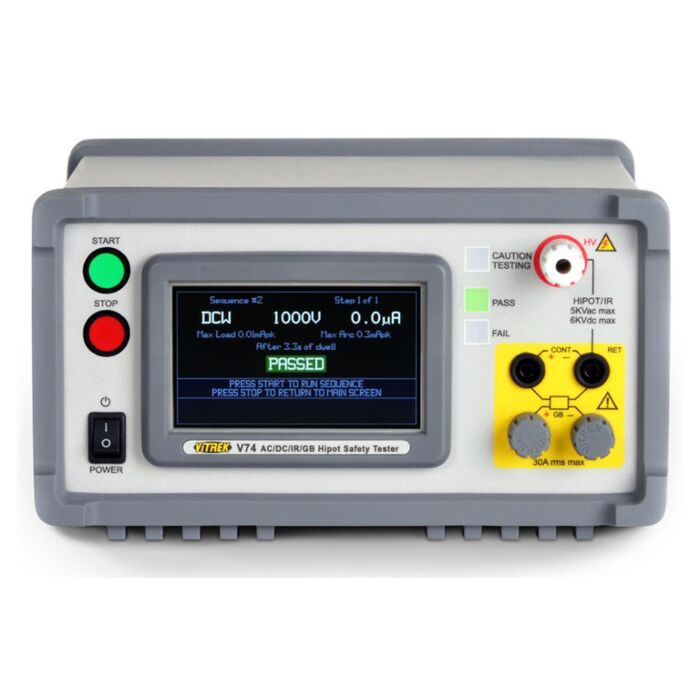

Vitrek V74

AC/DC/IR/GB Safety Tester

Order #: V74

Mfg #: V74

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $2,956.30 Regular Price $3,145.00

Vitrek V74

AC/DC/IR/GB Safety Tester

Order #: V74

Mfg #: V74

Special Price $2,956.30 Regular Price $3,145.00
Availability: Ships in 2-3 Weeks
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Electrical safety testing will never be the same.

With color touch LCD and high speed DSP technology, the compact and rugged V74 sets the standard for price/performance ratio. Made in the USA to meet tough UL, CSA, TUV and IEC Hipot requirements—the V74 provides unbeatable speed, accuracy, user safety and reliability.

  • 5KV AC-DC Hipot Insulation Resistance Ground Bond Tester
  • 4.3" Color Touch Display—Easy To Use Intuitive User Interface
  • 6 Functions to Choose From—AC/DC Hipot, IR, Ground Bond, Continuity and Built-in Switching
  • Made in the USA—Designed and Built in San Diego CA
  •  Compact, Lightweight, Rugged, Fan Free, Fast (100mS min test time) and Accurate
  • 5KV AC/DC Hipot, 20mA max source current
  • Ground Bond 1-30A RMS (42 A peak), 100µΩ Resolution
  • 100 nano-Amp Leakage Current Resolution
  • Low Cost of Ownership—Two Year Calibration Interval
  • USB 2.0, Serial/RS232, Digital I/O Interfaces are Standard
  • Continuously Variable Insulation Resistance 20-5000V, 450GΩ Max
  • Multi Mode IR with Steady/Rising Pass Mode
  • Test Memory Stores up to 999 Steps and 60 Test Sequences
  • Internal Self Test Fully Exercises Output and Verifies Current Accuracy
  • Pre-Programmed Daily Verification Test With Optional PVD Test Load
  • 150µS Safety Shutdown
  • Ramped Discharge Capability
  • Selectable ARC Detection 1-20mA
  • Meets UL, CSA, IEC Safety Tester Requirements
  • CE Safety Mark Certified to EN61010
  • Two Year Parts and Labor Warranty

Combine all that with USB, RS232 and Digital I/O interfaces, plus a two year warranty. The V74 is simply unbeatable
