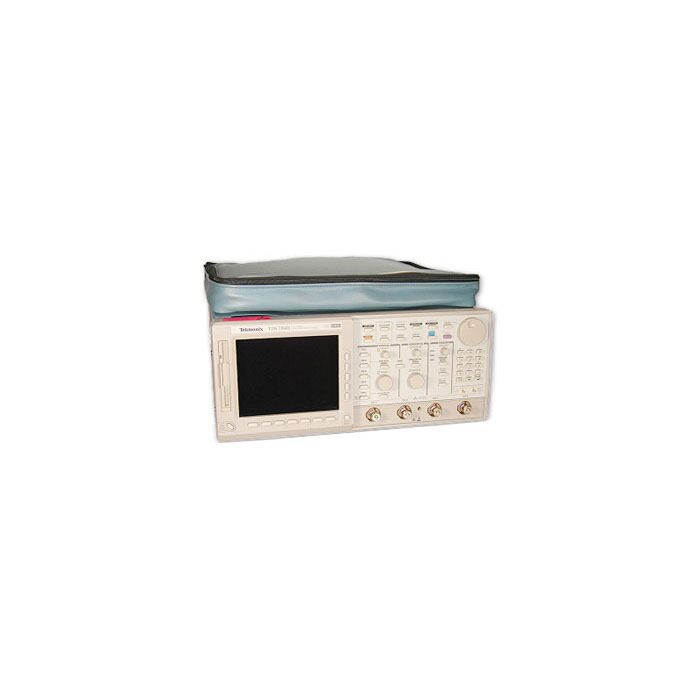

Tektronix TDS794D FOR RENT

2 GHz, 4 Channel Digitizing Oscilloscope, 4GSa/s

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: TDS794D-RENT2

Mfg Part #: TDS794D

Call for Price




Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

Overview :

Tektronix TDS794D Highlights

  • Bandwidth: 2 GHz
  • Number of Channels: 4
  • Number of Samplers: 4
  • Max Real-time Sample Rate:
    • 1 Channel: 4 GS/s
    • 2 Channels: 2 GS/s
    • 3-4 Channels: 1 GS/s
    • Equivalent-time Sample Rate: 250 GS/s max
  • Max Record Length:
    • 1 Channel: 50 K (Opt. 1M: 500 K, Opt. 2M: 8 M)
    • 2 Channels: 50 K (Opt. 1M: 250 K, Opt. 2M: 4 M)
    • 3-4 Channels: 50 K (Opt. 1M: 130 K, Opt. 2M: 2 M)
  • Max. Sample Rate Window: 2 ms
  • Sensitivity: 10 mV/div to 1 V/div (50 ohm mode)
  • DC Gain Accuracy: ±1.0% (0.7% typical)
  • Effective Bits (typical): 5.0 (2 GHz @ 4 GS/s), 9.7 with Hi-res (1 MHz @ 10 MS/s)
  • Vertical Resolution: 8-Bits (256 levels on 10.25 divisions), >11-Bits with averaging, >13-Bits typical with Hi-res
  • Position Range: ±5 divisions
  • Offset Range: ±1 V from 1 mV to 100 mV/div, ±10 V from 101 mV to 1 V/div, ±0.5 V from 10 mV to 50 mV/div, ±0.25 V from 50.5 mV to 99.5 mV/div, ±5 V from 100 mV to 500 mV/div, ±2.5 V from 505 mV to 1 V/div
  • Analog Bandwidth Selections: Full only
  • Input Coupling: DC, GND
  • Input Impedance Selections: 1 M ohm in parallel with 10 pF, or 50 ohm only (DC coupling only)
  • Channel Isolation: >100:1 at 100 MHz and >30:1 at the rated bandwidth
  • Max Input Voltage: 5 Vrms with peaks ± 20 Volts
  • 4GSa/s with opt 2M=Extended Memory: 1F =Floppy Drive; 2F=Math Functions
