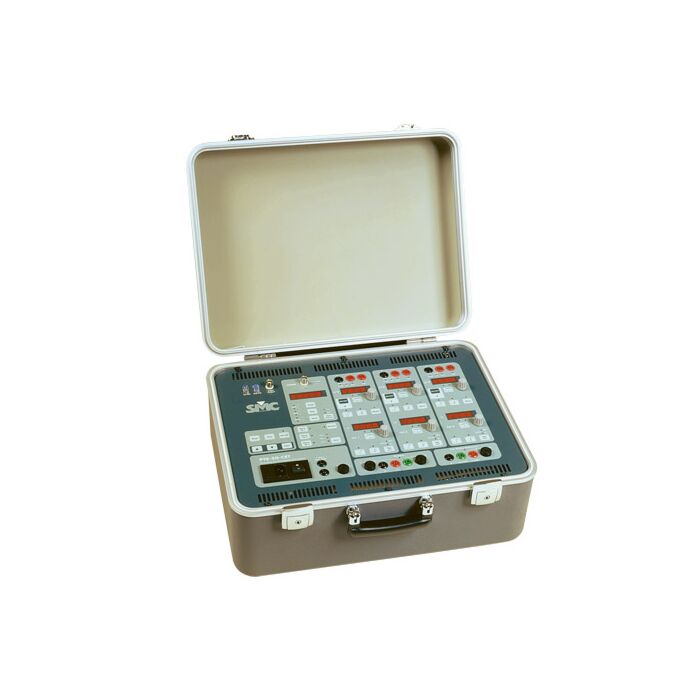

SMC PTE-300-V

Three Phase Relay Test Set up to 300V or 8A ac

The PTE-300-V equipment is a universal, portable, test system with three outputs to test single and three phase protective relays.

Order #: PTE-300-V

Mfg Part #: PTE-300-V

$18,750.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All SMC Products

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
SMC PTE-FCM SMC PTE-FCM

DC Target Tester

Order #: PTE-FCM

Usually ships in 7-10 days

$475.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCE SMC PTE-FCE

External Timer Start Option (stand alone only)

Order #: PTE-FCE

Usually ships in 7-10 days

$550.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCF SMC PTE-FCF

Variable Voltage Option (AC Voltage Regulator)

Order #: PTE-FCF

Usually ships in 7-10 days

$550.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCB SMC PTE-FCB

MCB Option, monitor voltage adapter

Order #: PTE-FCB

Usually ships in 7-10 days

$575.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCC SMC PTE-FCC

Relay Testing Accessory Option (mounted in lid only)

Order #: PTE-FCC

Usually ships in 7-10 days

$630.00 USD
Add Items to Cart Add to Quote

SMC STT SMC STT

Smart Test Tools Relay Testing Software

Order #: STT

Usually ships in 7-10 days

$900.00 USD
Add Items to Cart Add to Quote

SMC PTE-FCG SMC PTE-FCG

Battery Simulator

Order #: PTE-FCG

Usually ships in 7-10 days

$950.00 USD
Add Items to Cart Add to Quote

SMC PTE-SER SMC PTE-SER

Serial connector option for PTE-50-CET

Order #: PTE-SER

Usually ships in 7-10 days

$1,775.00 USD
Add Items to Cart Add to Quote

SMC PTE-30-CH SMC PTE-30-CH

Electrical Substation Maintenance Chronometer

Order #: PTE-30-CH

Usually ships in 7-10 days

$1,782.00 USD
Add Items to Cart Add to Quote

SMC IRIG-B SMC IRIG-B

Timing adapter for end to end synchronization

Order #: IRIG-B

Usually ships in 7-10 days

$2,950.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

The equipment comprises of three independent output channels than can be selected as voltage or current. This enables the unit to be used as a complete single-phase equipment (Voltage, Current, and phase angle between them), or with channels synchronized, as a three phase voltage or three phase current generator from a single phase mains input. The unit is extremely compact and rugged. The design incorporates the latest in modern digital microprocessor technology to achieve unbeatable output characteristics in terms of power, accuracy, low distortion, and dynamic capability.
This technology allows users to test many different specific functions required in relay testing, without the need of additional accessories. All output signals are digitally generated, amplified, and internally controlled by the IGM’s (Intelligent Generator Modules), which interpret the orders received from the front panel to produce a highly accurate, stable, and low distorted output, independent of the voltage supply.

The equipment also allows optional connection to a computer for either automatic testing of relays or control of the equipment using Windows compatible software. Even the adjustment and calibration of the equipment is made by software, supplied with the units, which permits calibration and/or adjustments in the outputs, without any manual hardware setting. (Closed Case Calibration) In summary, the PTE-300-V is an equipment which offers all the characteristics and functions needed for protective relay testing, in a manual or automatic mode, and in laboratory and/or for on site testing.

CHARACTERISTICS

  • Variable three phase voltage to 3 x 300V or Current up to 3 x 8A.
  • Variable phase angle between 0 – 359.9° (Single or three phase).
  • Variable frequency output between 40 – 420 Hz.
  • Output power: 3 x 100 VA.
  • Reversible outputs.
  • Outputs are fully isolated and electronic.
  • Dynamic capability.
  • Completely programmable.
  • External frequency or phase reference input.
  • External Timer control output.
  • Dimensions: 200 x 442 x 327 mm / 22 Kg 8 x 18 x 13 in. / 48 lb.

APPLICATIONS

  • Testing of three and single phase Generation and Interconnection Relays.
  • Combined with a single phase Current injection set, allows relay tests which require three phase voltage.
  • Can be used as a complete single phase unit in voltage, current, and phase as outputs are reversible (V, I, j ).

Accessories :
