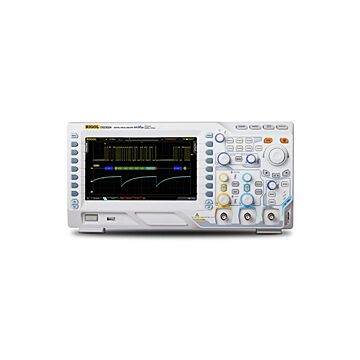

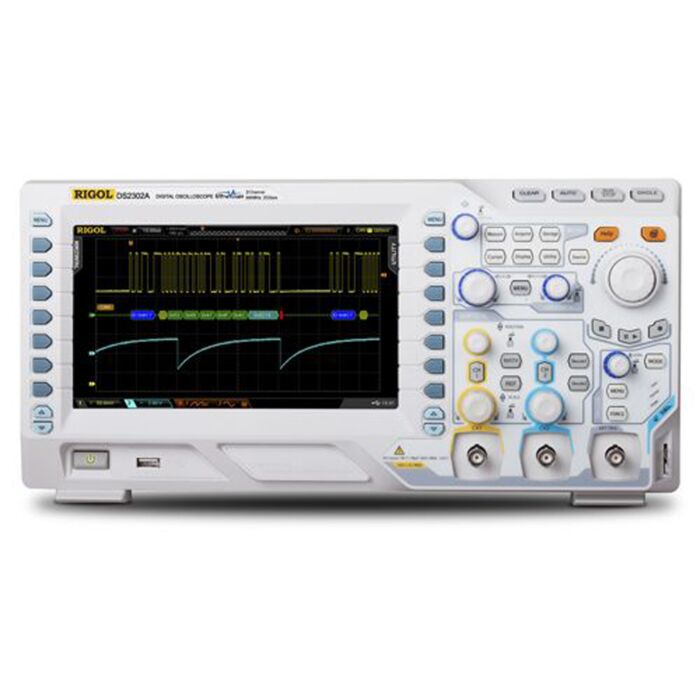

Rigol DS2000A Digital Oscilloscope

The DS2000A series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The DS2000A is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications.

Why Buy the Rigol DS2000A Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!





DS2000A series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision technique developed by RIGOL. It fulfills the design, debugging and test requirements of the mainstream application market.

DS2000A Main Features

  • Analog channels: 2 GSa/s real-time sample rate; 14 Mpts standard memory depth and up to 56 Mpts memory depth (option)
  • Digital channels: 1 GSa/s real-time sample rate; 14 Mpts memory depth (the deepest among MSOs of the same class)
  • 50,000 wfms/s (dots display) waveform capture rate
  • Real-time hardware waveform recording, playback and analysis functions; up to 65000 frames of waveform can be recorded; support digital channel waveform recording and playback
  • 256 degree gray scale display
  • 300 MHz, 200 MHz, 100 MHz and 70 MHz analog channel bandwidth
  • Built-in dual-channel 25 MHz signal source (DS2000A-S)
  • Low base noise, 500 μV/div to 10 V/div ultra-wide vertical dynamic range
  • Various trigger functions
  • Various decoding functions
  • Various interfaces: USB Host, USB Device, LAN (LXI), AUX and USB-GPIB (option)
  • 29 waveform parameters auto measurement (with statistics)
  • Fine delayed sweep function
  • Built-in FFT function
  • Pass/fail test function
  • Waveform math operation functions
  • Support USB storage device storage and PictBridge printer
  • Conform to LXI-C class instrument standards; enable quick, economic and efficient creation and reconfiguration of test system
  • Support remote command control
  • 8.0 inch WVGA (800*480) 160,000 color TFT LCD, with ultra-wide screen, vivid picture, low power consumption and long service life
  • Easy to use digital channel grouping and group operation functions
  • Adjustable waveform brightness
  • Auto setting of waveform display (AUTO)
  • Built-in help system
  • Support multiple languages menu, Chinese/English interface and Chinese/English input
  • Novel and delicate industrial design and easier operation
ModelDS2072A-SDS2102A-SDS2202A-SDS2302A-S
Bandwidth
70 MHz
100 MHz
200 MHz
300 MHz
Integrated 2 Channel Source
No Yes No Yes No Yes No Yes
Analog Channels 2
Sample Rate
2 GSa/s
Max Memory Depth
14Mpts(standard) ,56Mpts(option)
Display
8 inch LCD display
Standard Interface
USB Host & Device, RS-232, P/F Out
Impedance
High Impedance and 50 Ohm matching

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
RIGOL DS2072A RIGOL DS2072A

70MHz,2-Channel Oscilloscope w/ 2 GSa/sec & 14 Mill.Memory Pts.

Order #: DS2072A

In Stock
$839.00 USD
Add Items to Cart Add to Quote

RIGOL DS2072A-S RIGOL DS2072A-S

70MHz 2-Channel Oscillscope w/2 GSa/sec & 14 Mill.Memory Points

Order #: DS2072A-S

In Stock
$1,189.00 USD
Add Items to Cart Add to Quote

RIGOL DS2102A RIGOL DS2102A

100MHz 2-Channel Oscilloscope w/2 GSa/sec &14 Mill.Memory Pts

Order #: DS2102A

In Stock
$1,260.00 USD
Add Items to Cart Add to Quote

RIGOL DS2102A-S RIGOL DS2102A-S

100MHz 2-Channel Oscilloscope w/2GSa/sec & 14 Mill.Memory Pts

Order #: DS2102A-S

In Stock
$1,650.00 USD
Add Items to Cart Add to Quote

RIGOL DS2202A RIGOL DS2202A

200MHz 2-Channel Oscillscope w/ 2 GSa/sec & 14 Mill.Memory Pts.

Order #: DS2202A

In Stock
$1,790.00 USD
Add Items to Cart Add to Quote

RIGOL DS2202A-S RIGOL DS2202A-S

200MHz 2-Channel Oscillscope w/ 2 GSa/sec & 14 Mill.Memory Pts.

Order #: DS2202A-S

In Stock
$2,180.00 USD
Add Items to Cart Add to Quote

RIGOL DS2302A RIGOL DS2302A

300MHz 2-Channel Oscilloscope w/2 GSa/sec &14 Mill.Memory Pts

Order #: DS2302A

In Stock
$2,450.00 USD
Add Items to Cart Add to Quote

RIGOL DS2302A-S RIGOL DS2302A-S

300MHz 2-Channel Oscilloscope w/2 GSa/sec & 14Mill.Memory Pts

Order #: DS2302A-S

In Stock
$2,830.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • Wider vertical range(500uV/div ~ 10V/div), lower noise floor, better for small signal capturing
  • Full bandwidth, lower overshoot(<5%), perfect frequency response design
  • Bandwidth 70MHz,100MHz,200MHz, 300MHz
  • Max. Sample Rate 2G Sa/s
  • Standard Memory Depth up to14Mpts,Optional Memory Depth up to 56Mpts
  • Innovative "UltraVision" technology
  • Integrated 2 channel, 25 MHz generator ("-S" models only)
  • 50 Ohm Impedance included

Each Unit Includes

  • Packing Kit
  • Product CD
  • Calibration Certificate
  • Power Cord
  • USB Cable
  • Probes - 2
