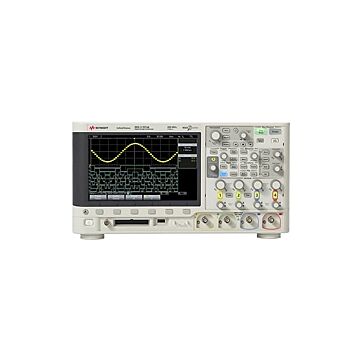

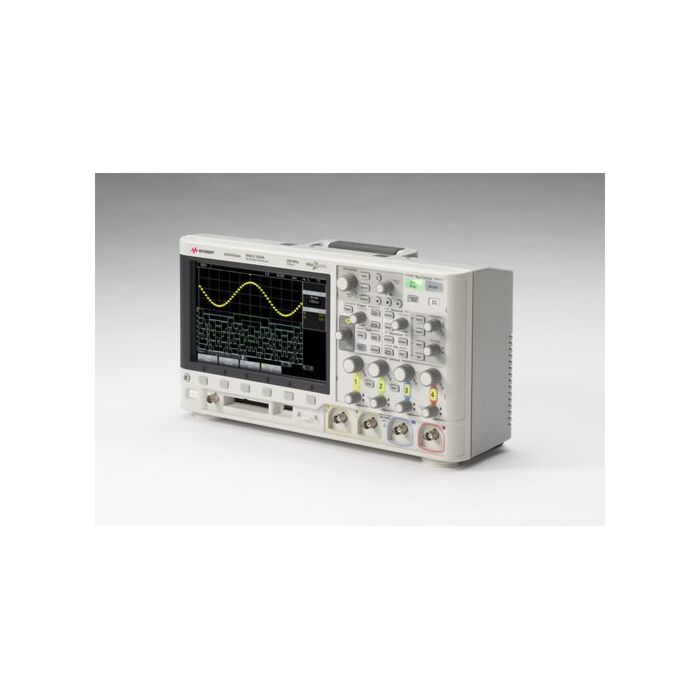

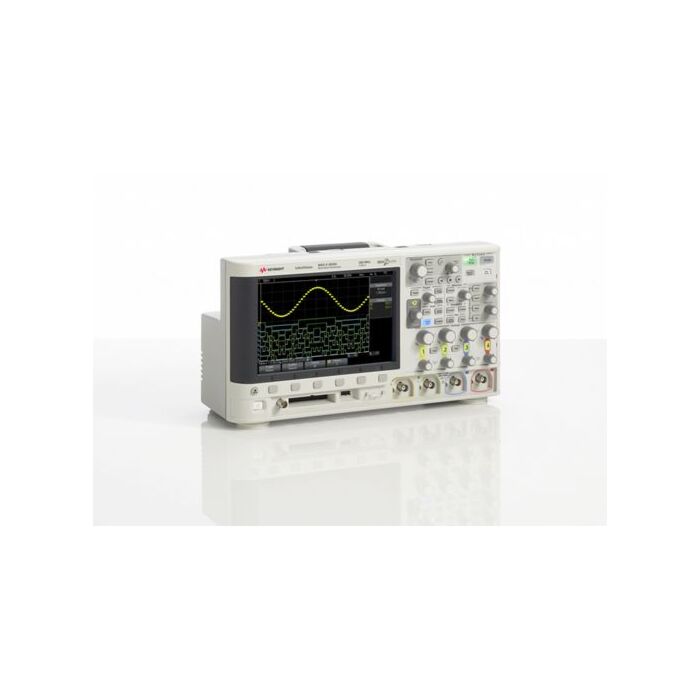

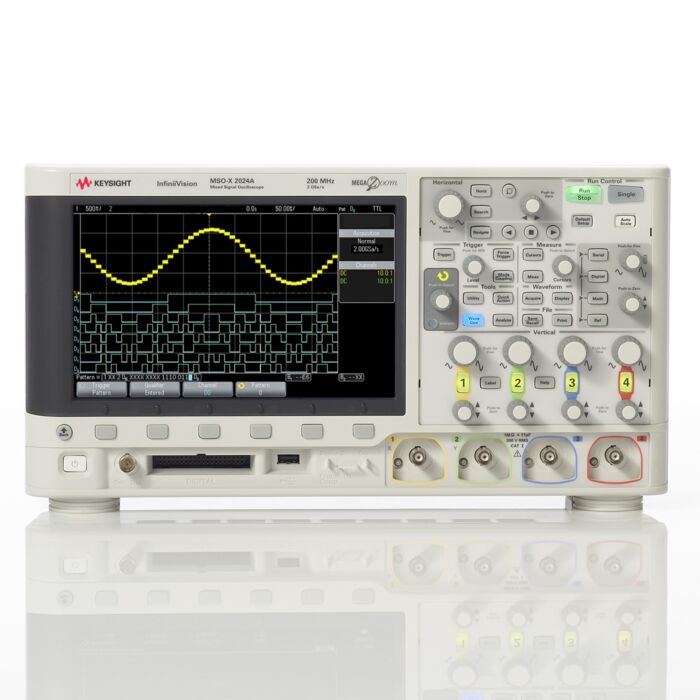

Keysight DSOX2024A

Product Highlights

• Faster update rate: Improving update rate from 50,000 to 200,000 wfm/s
• More memory: 10x more memory depth and standard segmented memory (DSOX2MEMUP+DSOX2SGM, $500+ value)
• Additional trigger conditions: Adding all advanced hardware triggers from 3000 X- Series, including: Edge then Edge, Runt, Setup and Hold, Rise/Fall Time, Nth Edge Burst and Or triggers
• Advanced math functions: Adding all advanced math functions from 3000 X- Series, including: Ax + B, Square, Absolute Value, Log, Log(e), Exponential, Exp(10), LPF, HPF, Magnify, Measurement Trend, Logic Bus Chart
• Bandwidth: 200 MHz
• High resolution 8.5-inch display
• Up to 50,000 wfms/s update rate
• Fast, responsive MegaZoom IV deep memory, 100 kpts
• Best–in-class oscilloscope

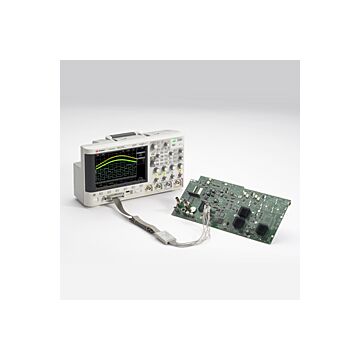

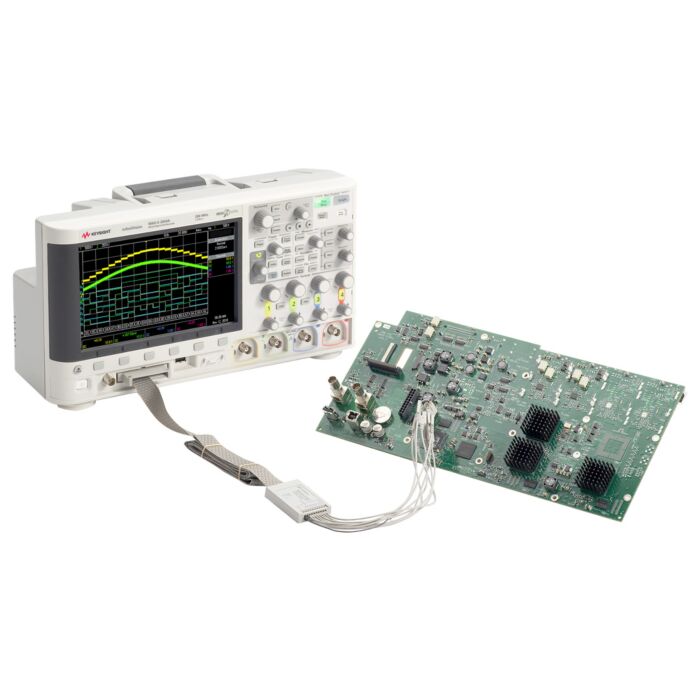

• Integrated 8-channel mixed signal oscilloscope (MSO)
• Industry-exclusive WaveGen built-in function generator (optional)
• Upgradable bandwidth
• Upgradable MSO
• Upgradable WaveGen built-in function generator
• Upgradable measurement applications
• Channels 2 or 4 analog channels (DSO) +8 digital channels (MSO)
• Sample rate Up to 2 GSa/s
• Memory 100 kpts
• Display 8.5-inch WVGA (800 x 480)
• Update rate 50,000 wfms/s
• Upgradable Bandwidth, MSO, measurement applications and WaveGen
• Warranty Standard 3-year
• Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)

Each Unit Includes

• Standard 5-year warranty (90 days for unserialized accessories)
• Standard secure erase
• One N2863B 300 MHz, 10:1 passive probe per channel
