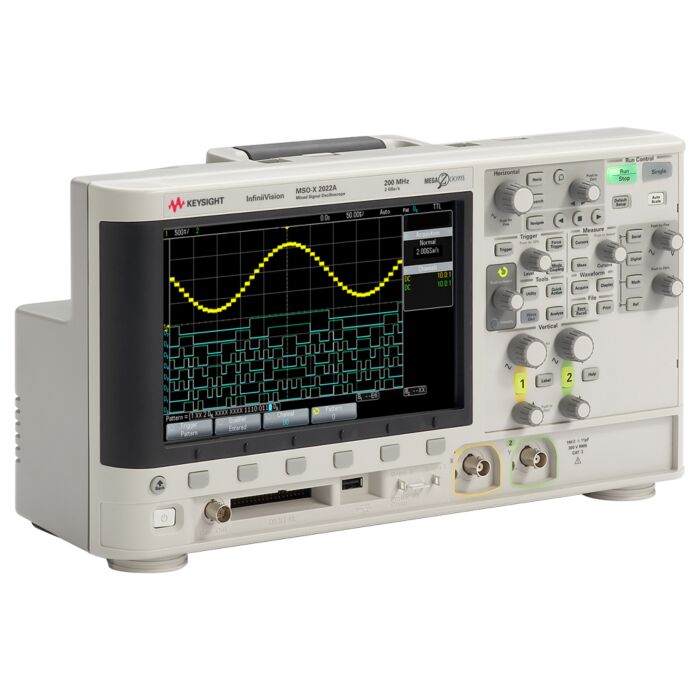

Keysight 2000X Digital Oscilloscopes

The InfiniiVision 2000 X-Series offers entry-level price points to fit your budget with superior performance and optional capabilities that are not available in any other oscilloscope in its class. This Keysight Technologies, Inc. breakthrough technology delivers more scope for the same budget.

Engineering for the best signal visibility starts with the largest display. Our 8.5‑inch WVGA display offers 50% more viewing area with 3.5 times the resolution (WVGA 800 x 480 versus 7-inch WQVGA 480 x 234).

Why Buy the 2000 X-Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of the Keysight 2000 X-Series, and can offer 3-day accredited calibrations on new orders. Browse our complete selection of Keysight Oscilloscopes below, or check out our comparison chart to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!



2000 X-Series Key Features

  • 70 MHz to 200 MHz
  • DSO or MSO (8 digital channels)
  • Standard 5 year factory warranty
  • Up to 1 Mpts memory
  • Built-in 20 MHz function generator (optional)
  • Integrated 3-digit voltmeter (optional)
  • Serial triggering and analysis for CAN, LIN, I²C, SPI and RS232/422/485/UART (optional)

2000A X-Series Comparison Chart

ModelBandwidthSample RateChannelsMax Memory DepthDescription
DSOX2002A
DSOX2002A
70 MHz 2 GSa/s half-channel interleaved, 1 GSa/s per channel 2 100 kpts This 2-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth.

MSOX2002A
MSOX2002A

70 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 2 plus 8 digital 100 kpts This 2 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality and investment protection with full upgradability including bandwidth.
DSOX2004A
DSOX2004A
70 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 4 100 kpts This 4-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth.
MSOX2004A
MSOX2004A
70 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 4 plus 8 digital 100 kpts This 4 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality, and investment protection with full upgradability including bandwidth.
DSOX2012A
DSOX2012A

100 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 2 100 kpts This 2-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth.
MSOX2012A
MSOX2012A
100 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 2 plus 8 digital 100 kpts This 2 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality and investment protection with full upgradability including bandwidth.
DSOX2014A
DSOX2014A
100 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 4 100 kpts This 4-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth.
MSOX2014A
MSOX2014A

100 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 4 plus 8 digital 100 kpts This 4 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality, and investment protection with full upgradability including bandwidth.
DSOX2022A
DSOX2022A
200 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 2 100 kpts This 2-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth.
MSOX2022A
MSOX2022A
200 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 2 plus 8 digital 100 kpts This 2 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality and investment protection with full upgradability including bandwidth.
DSOX2024A
DSOX2024A
200 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 4 100 kpts This 4-channel oscilloscope model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality today, and investment protection tomorrow with full upgradability, including bandwidth.
MSOX2024A
MSOX2024A
200 MHz 2 GSa/s per channel, 4 GSa/s half-channel interleaved mode 4 plus 8 digital 100 kpts This 4 analog plus 8 digital channel MSO model in the InfiniiVision 2000 X-Series offers 50,000 waveforms per second, gives you superior performance and functionality, and investment protection with full upgradability including bandwidth.

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Keysight Technologies DSOX2002A Keysight Technologies DSOX2002A

Oscilloscope,2-Channel,70MHz

Order #: DSOX2002A

In Stock
$1,311.00 USD
Add Items to Cart Add to Quote

Keysight Technologies DSOX2012A Keysight Technologies DSOX2012A

Oscilloscope,2-Channel,100MHz

Order #: DSOX2012A

In Stock
$1,639.00 USD
Add Items to Cart Add to Quote

Keysight Technologies DSOX2004A Keysight Technologies DSOX2004A

Oscilloscope,4-Channel,70MHz

Order #: DSOX2004A

Usually ships in 7-10 days

$1,997.00 USD
Add Items to Cart Add to Quote

Keysight Technologies MSOX2002A Keysight Technologies MSOX2002A

Oscilloscope,Mixed Signal,70MHz 2+8-Channel

Order #: MSOX2002A

Usually ships in 7-10 days

$2,059.00 USD
Add Items to Cart Add to Quote

Keysight Technologies DSOX2022A Keysight Technologies DSOX2022A

Oscilloscope,2-Channel,200MHz

Order #: DSOX2022A

Usually ships in 7-10 days

$2,308.00 USD
Add Items to Cart Add to Quote

Keysight Technologies DSOX2014A Keysight Technologies DSOX2014A

Oscilloscope,4-Channel,100MHz

Order #: DSOX2014A

In Stock
$2,359.00 USD
Add Items to Cart Add to Quote

Keysight Technologies MSOX2012A Keysight Technologies MSOX2012A

Oscilloscope, Mixed Signal 100MHZ, 2+8 Channel

Order #: MSOX2012A

Usually ships in 7-10 days

$2,387.00 USD
Add Items to Cart Add to Quote

Keysight Technologies MSOX2004A Keysight Technologies MSOX2004A

Oscilloscope,Mixed Signal,70MHz 4+8-Channel

Order #: MSOX2004A

Usually ships in 7-10 days

$2,743.00 USD
Add Items to Cart Add to Quote

Keysight Technologies DSOX2024A Keysight Technologies DSOX2024A

Oscilloscope,4-Channel,200MHz

Order #: DSOX2024A

In Stock
$2,842.00 USD
Add Items to Cart Add to Quote

Keysight Technologies MSOX2022A Keysight Technologies MSOX2022A

Oscilloscope,MixedSignal, 200MHz, 2+8 Channel

Order #: MSOX2022A

Usually ships in 7-10 days

$3,057.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • High resolution 8.5-inch display
  • Up to 50,000 wfms/s update rate
  • Fast, responsive MegaZoom IV deep memory, 100 kpts
  • Best–in-class oscilloscope
  • Integrated 8-channel mixed signal oscilloscope (MSO)
  • Industry-exclusive WaveGen built-in function generator (optional)
  • Upgradable bandwidth
  • Upgradable MSO
  • Upgradable WaveGen built-in function generator
  • Upgradable measurement applications
  • Bandwidth 70 MHz, 100 MHz, 200 MHz
  • Channels 2 or 4 analog channels (DSO) +8 digital channels (MSO)
  • Sample rate Up to 2 GSa/s
  • Memory 100 kpts
  • Display 8.5-inch WVGA (800 x 480)
  • Update rate 50,000 wfms/s
  • Upgradable Bandwidth, MSO, measurement applications and WaveGen
  • Warranty Standard 3-year
  • Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)

Each Unit Includes

  • Standard 5-year warranty
  • Standard secure erase
  • N2862B 150 MHz 10:1 passive probe Standard one per channel for 70 and 100 MHz models
  • N2863B 300 MHz, 10:1 passive probe Standard one per channel for 200 MHz models
  • N6459-60001 8-channel logic probe and accessory kit Standard on MSO models or with DSOX2MSO upgrade
  • Localized power cord

Specifications :

Bandwidth 70/100/200 MHz
Sampling rate 2 GSa/s
Analog 2 or 4
Digital 8
Memory 100 kpt standard
Option 1 Mpts Option
Segmented memory Option
Waveform update rate 50,000
Display size 8.5 inch
Capacitive touch screen Not Available
Hardware zone trigger Not Available
Advanced math Not Available
AutoProbe interface Not Available
Application bundle option DSOX2APPBNDL
