Fluke N5K 4PP54

Norma 5000, Three Phase with 4xPP54 Power Phase Modules

Order #: N5K 4PP54

Mfg Part #: FLUKE-N5K 4PP54

$19,899.99 USD

Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States, Canada and Puerto Rico only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Fluke Products

Overview :

Product Highlights

  • Compact design makes it easy to carry and saves working space
  • Simple user interface ensures easy, intuitive operation
  • A variety of standard configurations allows users to choose the exact functionality required for their unique application
  • Simultaneous parallel acquisition of all phases allows accurate viewing of dynamic events on all phases at exactly the same point in time
  • All inputs are galvanically isolated to avoid short circuits in all applications
  • Voltage, current and power harmonics measured up to the 40th harmonic for complete analysis
  • FFT analysis, vector diagram, and Digital Oscilloscope (DSO) mode included in the base unit for complete analysis capability
  • User-selectable average time – from 15ms up to 3600s – for dynamic measurements
  • 4 MB on-board memory (expandable to 128 MB) for storage of measured values
  • Fast and easy connection to a PC – RS232 and USB included as standard; optional IEEE488, Ethernet, or USB2.0
  • PI1 process interface to measure torque and speed with external sensors, plus four analog outputs for easy use on motor and drive applications
  • 341kHz or 1 MHz sample rates for detailed signal analysis
  • Bandwidth from dc to 3 MHz / 10 MHz for reliable measurement precision
  • Fluke NormaView PC software for data download, analysis & report writing

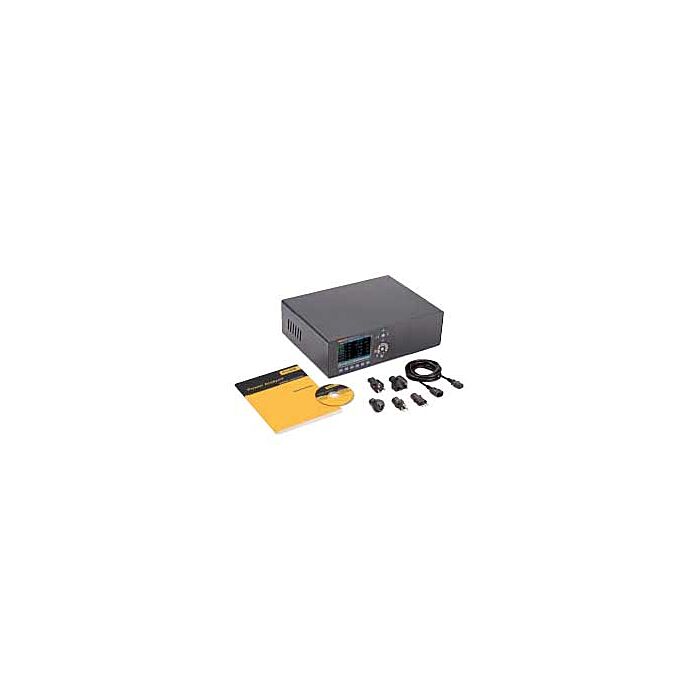

Each Unit Includes

  • Power supply cable
  • 5.7“ / 144 mm color display
  • Internal printer
  • RS232/USB interface for data download
  • Space for six power-phases and options
  • Fluke NormaView PC software
  • User’s manual
  • Test certificate
  • Calibration values
