Flowline XP88-0

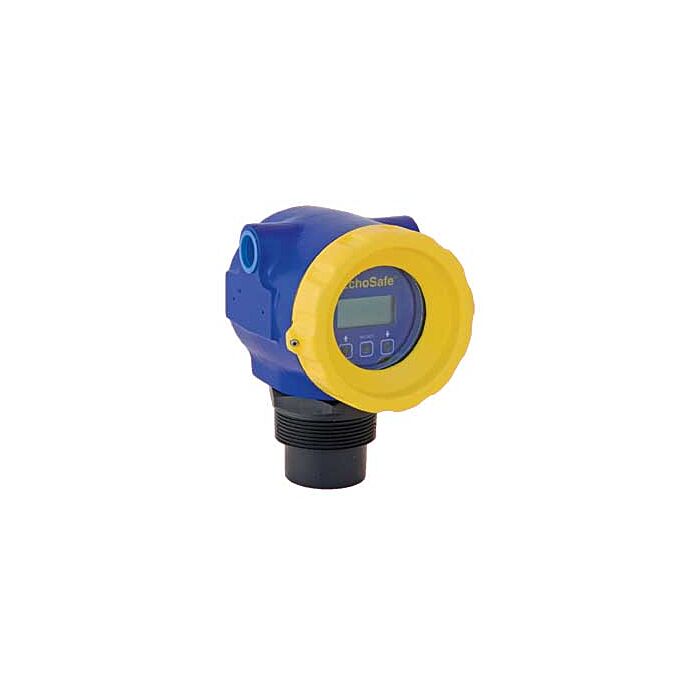

EchoSafe XP Ultrasonic Level Switch

Order #: XP88-0

Mfg Part #: XP88-0

$1,345.00 USD



1 In stock

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Flowline Products

Overview :

Product Highlights

  • Explosion proof level transmitter for use in hazardous areas
  • Configuration is simple via integral push button display module
  • Type 4 aluminum XP windowed enclosure with dual conduit ports
  • LCD display indicates level in inches, centimeters or percent of span
  • Narrow 3” beam width for applications with limited measurement space
  • Rugged PVDF transducer and process mounting plug for corrosive liquids
  • Range: 8" to 26.2' (20cm to 8m)
  • Accuracy: ± 0.2% of range
  • Resolution: 0.079" (2mm)
  • Dead band: 8" (20cm)
  • Beam width: 3" (7.6cm)
  • Configuration: Push button
  • Memory: Non-volatile
  • Display type: LCD, 6-digit
  • Display units: Inch, cm, percent, feet or meter
  • Supply voltage: 18-28 VDC (loop)
  • Loop resist.: 250 Ohms max @ 24 VDC
  • Signal output: 4-20 mA, two-wire
  • Signal invert: 4-20 mA or 20-4 mA
  • Signal fail-safe: 4 mA, 20mA, 21 mA, 22 mA or hold last
  • Process temp.: F: -4° to 140°/C: -20° to 60°
  • Temp. comp.: Automatic
  • Ambient temp.: F: -4° to 140°/C: -20° to 60°
  • Pressure: MWP = 30 psi (2 bar)
  • Enclosure rating: Type 4
  • Encl. material: Aluminum
  • Window material: Glass
  • Conduit entrance: Dual, 1/2" NPT
  • Trans. material: PVDF
  • Process mount: 2" NPT
  • Mount gasket: Viton®
  • Classification: Explosion proof
  • Compliance: CE, RoHS
  • Approvals: FM: Class I, Div I Groups A, B, C, D Class II/III, Div I, Groups E, F, G

Each Unit Includes

  • XP Ultrasonic Level Transmitter
  • Quickstart Guide
