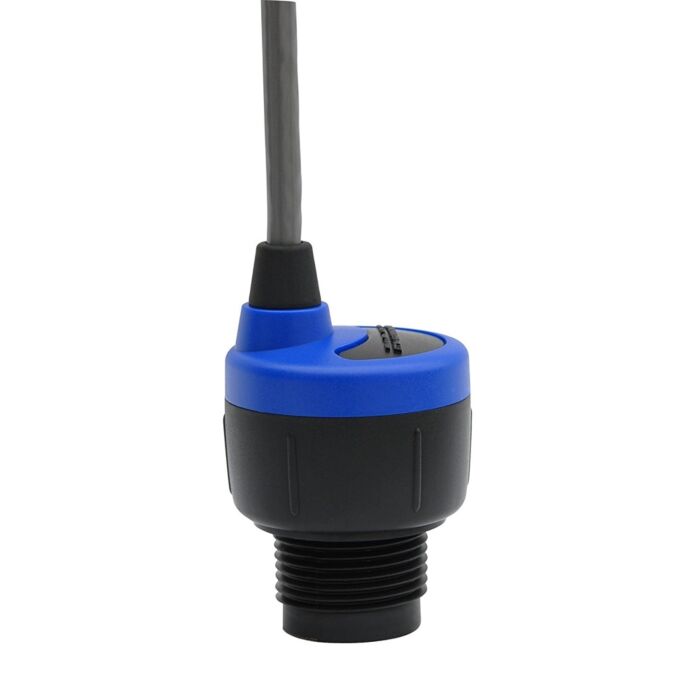

Flowline DX10-01

EchoPod(Blue) Ultrasonic Level Transmitter, 1.25m, 1"NTPw/Fob

Order #: DX10-01

Mfg #: DX10-01

Questions about availability or need help? Contact Us:

(800) 633-0561
$365.00

Flowline DX10-01

EchoPod(Blue) Ultrasonic Level Transmitter, 1.25m, 1"NTPw/Fob

Order #: DX10-01

Mfg #: DX10-01

$365.00
Availability:
In stock
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2” (1.25m) with a selectable 0-5 VDC, 0-10 VDC or 976-2000 Hz frequency signal output, and is configured via our free WebCal software. Select the voltage output for interface with analog input cards. Select the frequency output for interface with discrete input cards. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for small day tank, skid, IBC, sump and process tank level applications.

  • Continuous non-contact level measurement up to 49.2” (1.25m)
  • Selectable voltage (analog) or frequency (discrete) signal outputs
  • Configuration is fast and easy via WebCal software and USB adapter
  • Narrow 2” beam width and short 2” dead band optimized for small tanks
  • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
  • Automatic temperature compensation for accurate measurement
  • Range: 49.2” (1.25m)
  • Accuracy: 0.125” (3mm)
  • Resolution: 0.019” (0.5mm)
  • Dead band: 2” (5cm)
  • Beam width: 2” (5cm)
  • Configuration: WebCal® PC Windows®, USB 2.0
  • Memory: Non-volatile
  • Supply voltage: 12-24 VDC
  • Consumption: 0.5W
  • Signal output: 0-5 V, 0-10 V, 976-2000 Hz
  • Frequency: Sink current, 15 mA nominal
  • Signal invert: 5-0 V, 10-0 V, 2000-976 Hz
  • Signal fail-safe: Full, empty or hold last
  • Process temp.: F: 20° to 140°, C: -7° to 60°
  • Temp. comp.: Automatic
  • Ambient temp.: F: -31° to 140°, C: -35° to 60°
  • Pressure: MWP = 30 PSI (2 bar)
  • Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
  • Encl. material: Polycarbonate
  • Strain relief mat.: Santoprene
  • Trans. material: PVDF
  • Cable jacket mat.: Polyurethane
  • Cable type: 6-conductor, shielded
  • Cable length: 48” (1.2m)
  • Process mount: 1” NPT (1” G)
  • Mount gasket: Viton®
  • Classification: General purpose
  • Compliance: CE, RoHS
  • Approvals: cFMus
