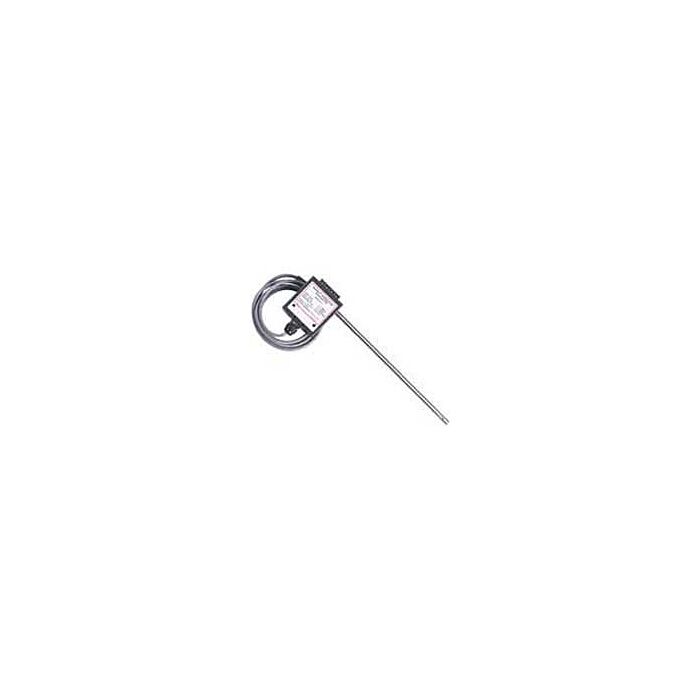

Dwyer Instruments 657-1

Relative Humidity/Temp.Xmitter,

Order #: 657-1-DWYER

Mfg Part #: 657-1

$288.00 USD

$279.36 USD




Usually ships in 7-10 days

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Dwyer Instruments Products

Overview :

Product Highlights

  • Service: Humidity & temperature detection in air.
  • Range: Relative Humidity: 0-100%; Temperature: 32 to 212°F (0 to 100°C).
  • Accuracy: Relative Humidity: ±2% (10-90% RH), ±3% (0-10% and 90-100% RH); Temperature: ±1°F (0.5°C).
  • Temperature Limits: 32 to 158°F (0 to 70°C).
  • Pressure Limits: 1 psi (.07 bar).
  • Compensated Temperature Range: 32 to 158°F (0 to 70°C).
  • Power Requirements: 10-35 VDC.
  • Output Signal: 2 channels each 4-20 mA. Loop powered on RH channel.
  • Electrical Connections: 4 screw type terminal.
  • Mounting Orientation: Mount in any position.
  • Probe: 5/16" x 10" (0.8 x 25.4 cm) stainless steel.
  • Weight: 5.5 oz (156 g).
