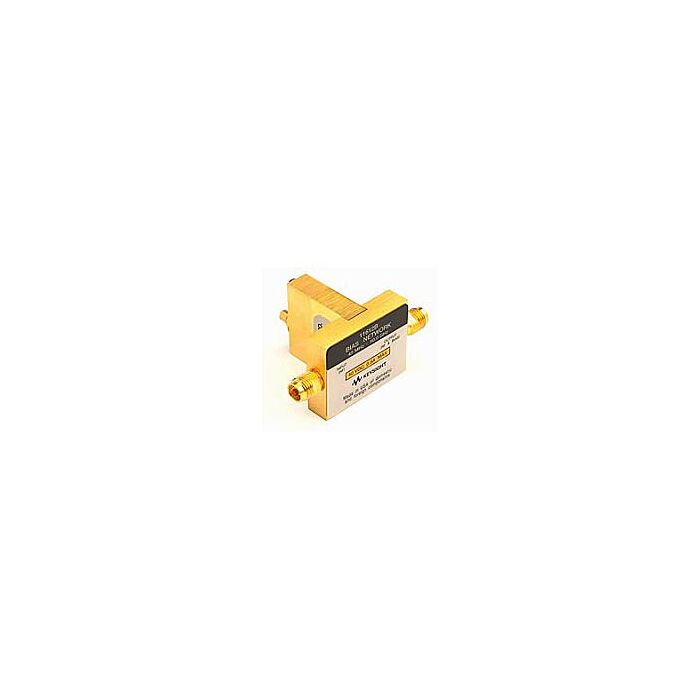

Keysight Technologies 11612B FOR RENT

Bias Network 45 MHz to 50 GHz Option K21=50kHz

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: 11612B-RENT2

Mfg Part #: 11612B

$75.00 USD

Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Keysight Technologies Products

Overview :

Keysight 11612B Highlights

The Keysight 11612B broadband high power bias network can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying dc bias to the center conductor of the coax connector for your device while blocking the dc to the RF port.

  • RF Power: +24 dBm max
  • Cable: SMB (f) to BNC (m) included
  • Temperature: Warranted performance over 0° to 55° C unless otherwise noted
  • Frequency range: 45 MHz to 50 GHz
  • Insertion loss: 0.8 dB (<10 GHz), 1.5 dB (<30 GHz), 2.5 dB (<45 GHz), 3.2 dB (<50 GHz)
  • Maximum SWR: 20 dB (<10 GHz), 15 dB (<20 GHz), 12 dB (<30 GHz), 10 dB (<50 GHz)
  • Impedance: 50 ohms
  • Bias current: 500 mA
  • Bias voltage: 40 V
  • Connectors: RF input -2.4mm (f), RF output -2.4mm (f), dc bias-SMB (m)
  • Bias Module (High Insertion Loss)
