Fluke 289 50,000 Count True-RMS Logging Multimeter with TraceCapture

Order # 289 | Mfg # 2675778

In Stock!

Fluke 289 True-RMS Logging Multimeter 50000 Count

Fluke 289 50,000 Count True-RMS Logging Multimeter with TraceCapture

Save 11%

$899.99

$800.99

In stock

Ships Free Over $100

The 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the 289 be your watchdog for systems or processes while you are off doing other jobs. Now communicate wirelessly with your iOS and Android smart devices with the Fluke Connect mobile app and ir3000 FC wireless connector (sold separately). 50,000 count, 320 x 240 Dot matrix LCD display with white backlight. Multiple sets of measurement information are now available in this easy to read display

Check out Transcat's Fluke Digital Multimeter Selection Guide!

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

0.025% Basic DC accuracy

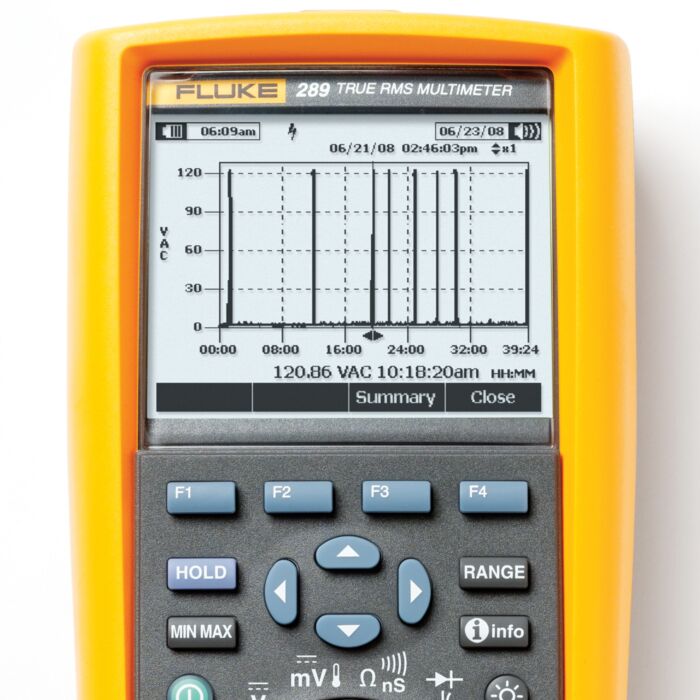

Logging function with TrendView plots measurements as single line to help detect anomalies
F1 - F4 Soft keys provide flexible user function menus
Navigation keys allow the user to quickly select menu choices and scroll through the information screens
LoZ: low input impedance function helps prevents false readings due to "ghost voltage"
50 Ohm Range for motor winding and low ohm measurements
Low Pass Filter, allows for accurate measurements on motor drives
Saved measurements allows the user to name and recall measurements made in the field
Field upgradeable and expandable meter as new capabilities added
Record events and trends helpful for troubleshooting intermittent problems or profiling loads
i-info button on board help screens for measurement functions. Unsure about a function- Go to that function and Press the "i" button
Multi lingual interface
Internal memory allows stand-alone logging for up to 180 hours
Preferred measurement setups can be easily saved
True-rms ac voltage and current for accurate measurements on complex signals or non linear loads
AC bandwidth specified to 100 kHz.
Current measurement 20A (30 seconds momentary; 10A continuous)
Peak capture to record transients as fast as 250µs
Continuity/Conductance/Capacitance
Resistance and continuity
Min/Max/Average with Time Stamp to record signal fluctuations
Compatible with optional magnetic hanger (ToolPak) for hands free operation
Optical USB communication interfac
CAT III 1000 V / CAT IV 600 V safety rated
Limited lifetime warranty

Each Unit Includes

6 AA Batteries, installed
TL71 Silicone test leads
AC72 Alligator clips

Webinars

Electrical Safety Measurement Webinar with Fluke

Technical Resources

Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Brochure - Fluke DMM Selection Guide
Application - ABCs of Multimeter Safety: Multimeter Safety and You
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - User's Manual
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - User Manual Supplement
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Calibration Manual
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Calibration Manual Supplement
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - CE Declaration of Conformity
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Statement of Memory Volatility
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Quick Reference Guide
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Safety Sheet
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Safety Sheet Supplement
Application - Dual Impendance Digital Multimeters: What"s the Point?
Application - Event Recording (or Logging) with a Fluke 287/289 Digital Multimeter
Application - Keep Things Flowing with Fluke Instruments
Application - Fluke Connect™ ABCs of DMMs
Application - Multimeter Measurements on Variable Frequency Drives Using the new Fluke 289 DMM
Application - The Ultimate Multimeter for the Ultimate Electrician / Industrial Technician
Application - Troubleshooting Electrical Problems in High-End TVs
Application - Under-Utilized Functions on your DMM
Application - Using Multimeter Features Beyond Voltage
Fluke 289 True-RMS Industrial Logging Multimeter - Technical Data
Brochure - 7 Reasons to Connect Your Tools
Brochure - Fluke 289 End User Brochure For Industrial Market
Brochure - Fluke Connect™
Fluke - Electrical Safety Measurement Webinar

Specifications

Specifications
DC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.025%
AC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.4% (True-RMS)
DC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.05%
AC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.6% (True-RMS)
Temperature (excluding probe)	Range / resolution	-200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
	Basic accuracy	1.00%
Resistance	Range / resolution	50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
	Basic accuracy	0.05%
Capacitance	Range / resolution	1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
	Basic accuracy	1.00%
Frequency	Range / resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
	Basic accuracy	0.005%
Connectivity	Optional infrared connector via Fluke ir3000 FC
General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	6 AA alkaline batteries, NEDA 15A IECLR6
Battery life	100 hours minimum, 200 hours in logging mode
Temperature	Operating	-20°C to 55°C
	Storage	-40°C to 60°C
Relative humidity	0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility	EMC EN61326–1
Vibration	Random vibration per MIL-PRF-28800F Class 2
Shock	1 meter drop per IEC/EN 61010–1 3rd Edition
Size (H x W x L)	22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
Weight	870.9 g (28 oz)
Multiple on screen displays	Yes
True-RMS AC bandwidth	100 kHz
dBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 MΩ
Conductance	50.00 nS
Continuity beeper	Yes
Battery/fuse access	Yes/Yes
Elapse time clock	Yes
Time of day clock	Yes
Min-max-avg	Yes
Duty cycle	Yes
Pulse width	Yes
Isolated optical interface	Yes
Auto/touch hold	Yes
Reading memory	Yes
Log to PC	Yes
Interval/event logging	Yes
Logging memory	Up to 15,000 readings
Wireless connectivity (optional)	Yes
