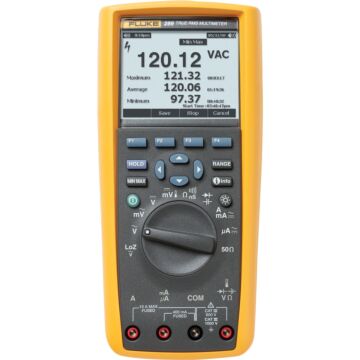

| Specifications |
| DC volts |
Range / resolution |
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
| Basic accuracy |
0.03% |
| AC volts |
Range / resolution |
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
| Basic accuracy |
0.4% (True-RMS) |
| DC current |
Range / resolution |
500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
| Basic accuracy |
0.05% |
| AC current |
Range / resolution |
500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
| Basic accuracy |
0.6% (True-RMS) |
| Temperature (excluding probe) |
Range / resolution |
-200.0°C to 1350.0°C (-328.0°F to 2462.0°F) |
| Basic accuracy |
1.00% |
| Resistance |
Range / resolution |
500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ |
| Basic accuracy |
0.05% |
| Capacitance |
Range / resolution |
1.000 n, 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF |
| Basic accuracy |
1.00% |
| Frequency |
Range / resolution |
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
| Basic accuracy |
0.01% |
| Connectivity |
Optional infrared connector via Fluke ir3000 FC |
| General Specifications |
| Maximum voltage between any terminal and earth ground |
1000 V |
| Battery type |
6 AA alkaline batteries, NEDA 15A IECLR6 |
| Battery life |
100 hours minimum, 200 hours in logging mode |
| Temperature |
Operating |
-20°C to 55°C |
| Storage |
-40°C to 60°C |
| Relative humidity |
0 to 90% (0 t 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) |
| Electromagnetic compatibility |
EMC EN61326–1 |
| Vibration |
Random vibration per MIL-PRF-28800F Class 2 |
| Shock |
1 meter drop per IEC/EN 61010–1 3rd Edition |
| Size (H x W x L) |
22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) |
| Weight |
870.9 g (28 oz) |
| Multiple on screen displays |
Yes |
| True-RMS AC bandwidth |
100 kHz |
| dBV/dBm |
Yes |
| DC mV resolution |
1 μV |
| Megohm range |
Up to 500 MΩ |
| Conductance |
50.00 nS |
| Continuity beeper |
Yes |
| Battery/fuse access |
Yes/Yes |
| Elapse time clock |
Yes |
| Time of day clock |
Yes |
| Min-max-avg |
Yes |
| Peak |
250 μs |
| Duty cycle |
0.01% to 99.99% |
| Pulse width |
0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms |
| Hold |
Yes |
| Isolated optical interface |
Yes |
| Auto/touch hold |
Yes |
| Reading memory |
Yes |
| Log to PC |
Yes |
| Interval/event logging |
Yes |
| Logging memory |
Up to 10,000 readings |
| Wireless connectivity (optional) |
Yes |
