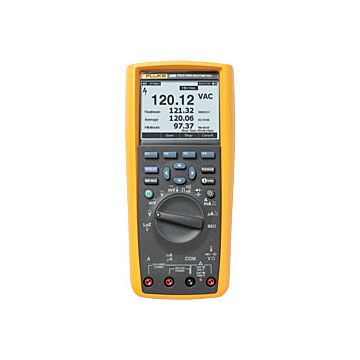

Fluke 289 for Rent True-RMS Logging Multimeter

Order # 289-RENT1 | Mfg # 289-RENT1

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • 0.025% Basic DC accuracy
  • Logging function with TrendView plots measurements as single line to help detect anomalies
  • F1 - F4 Soft keys provide flexible user function menus
  • Navigation keys allow the user to quickly select menu choices and scroll through the information screens
  • LoZ: low input impedance function helps prevents false readings due to "ghost voltage"
  • 50 Ohm Range for motor winding and low ohm measurements
  • Low Pass Filter, allows for accurate measurements on motor drives
  • Saved measurements allows the user to name and recall measurements made in the field
  • Field upgradeable and expandable meter as new capabilities added
  • Record events and trends helpful for troubleshooting intermittent problems or profiling loads
  • i-info button on board help screens for measurement functions. Unsure about a function- Go to that function and Press the "i" button
  • Multi lingual interface
  • Internal memory allows stand-alone logging for up to 180 hours
  • Preferred measurement setups can be easily saved
  • True-rms ac voltage and current for accurate measurements on complex signals or non linear loads
  • AC bandwidth specified to 100 kHz.
  • Current measurement 20A (30 seconds momentary; 10A continuous)
  • Peak capture to record transients as fast as 250µs
  • Continuity/Conductance/Capacitance
  • Resistance and continuity
  • Min/Max/Average with Time Stamp to record signal fluctuations
  • Compatible with optional magnetic hanger (ToolPak) for hands free operation
  • Optical USB communication interfac
  • CAT III 1000 V / CAT IV 600 V safety rated
  • Limited lifetime warranty

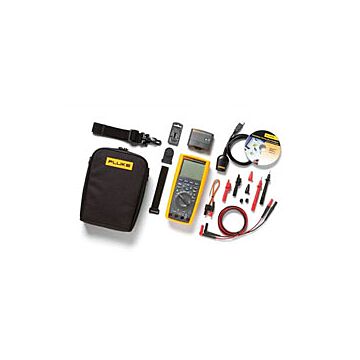

Each Unit Includes

  • 6 AA Batteries, installed
  • TL71 Silicone test leads
  • AC72 Alligator clips

Technical Resources

Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Brochure - Fluke DMM Selection Guide
Application - ABCs of Multimeter Safety: Multimeter Safety and You
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - User's Manual
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - User Manual Supplement
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Calibration Manual
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Calibration Manual Supplement
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - CE Declaration of Conformity
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Statement of Memory Volatility
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Quick Reference Guide
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Safety Sheet
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Safety Sheet Supplement
Application - Dual Impendance Digital Multimeters: What"s the Point?
Application - Event Recording (or Logging) with a Fluke 287/289 Digital Multimeter
Application - Keep Things Flowing with Fluke Instruments
Application - Fluke Connect
