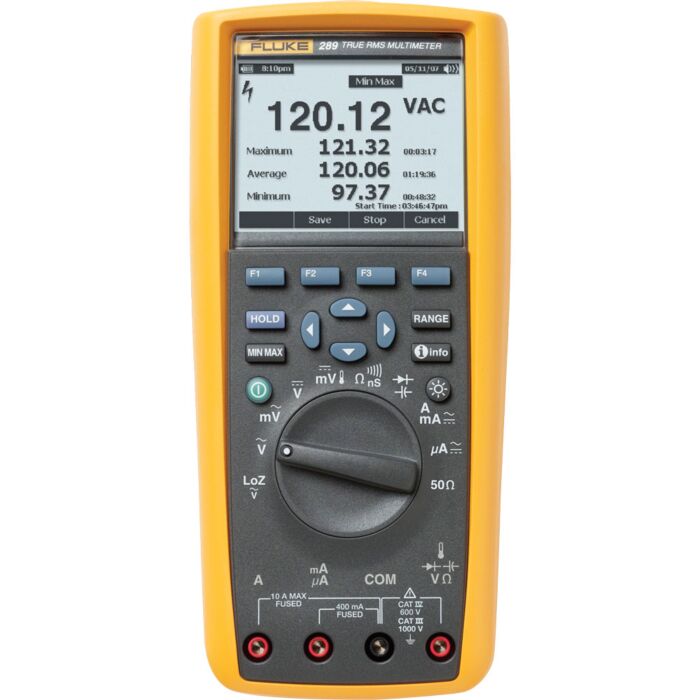

Fluke 289
Order #: 289
Mfg #: 2675778
Fluke 289
Order #: 289
Mfg #: 2675778
The 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the 289 be your watchdog for systems or processes while you are off doing other jobs. Now communicate wirelessly with your iOS and Android smart devices with the Fluke Connect mobile app and ir3000 FC wireless connector (sold separately). 50,000 count, 320 x 240 Dot matrix LCD display with white backlight. Multiple sets of measurement information are now available in this easy to read display
Check out Transcat's Fluke Digital Multimeter Selection Guide!
Only need this item for a short time? Learn about rentals
Product Highlights
- 0.025% Basic DC accuracy
- Logging function with TrendView plots measurements as single line to help detect anomalies
- F1 - F4 Soft keys provide flexible user function menus
- Navigation keys allow the user to quickly select menu choices and scroll through the information screens
- LoZ: low input impedance function helps prevents false readings due to "ghost voltage"
- 50 Ohm Range for motor winding and low ohm measurements
- Low Pass Filter, allows for accurate measurements on motor drives
- Saved measurements allows the user to name and recall measurements made in the field
- Field upgradeable and expandable meter as new capabilities added
- Record events and trends helpful for troubleshooting intermittent problems or profiling loads
- i-info button on board help screens for measurement functions. Unsure about a function- Go to that function and Press the "i" button
- Multi lingual interface
- Internal memory allows stand-alone logging for up to 180 hours
- Preferred measurement setups can be easily saved
- True-rms ac voltage and current for accurate measurements on complex signals or non linear loads
- AC bandwidth specified to 100 kHz.
- Current measurement 20A (30 seconds momentary; 10A continuous)
- Peak capture to record transients as fast as 250µs
- Continuity/Conductance/Capacitance
- Resistance and continuity
- Min/Max/Average with Time Stamp to record signal fluctuations
- Compatible with optional magnetic hanger (ToolPak) for hands free operation
- Optical USB communication interfac
- CAT III 1000 V / CAT IV 600 V safety rated
- Limited lifetime warranty
Each Unit Includes
- 6 AA Batteries, installed
- TL71 Silicone test leads
- AC72 Alligator clips
Webinars
Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO
- Fluke PRV240Battery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability:Out of stockSpecial Price $134.99 Regular Price $149.99 - Fluke IR3000FCInfrared Connector for Fluke Connect enabled tools
Order #: IR3000FC
Mfg #: 4460436
Availability:Out of stockSpecial Price $107.99 Regular Price $119.99 - Fluke TLK-220US SureGrip Accessory Set w/Meter Carrying Case
Order #: TLK-220
Mfg #: 2097010
Availability:Out of stockSpecial Price $143.99 Regular Price $159.99 - Fluke 80PK-8Probe Pipe Clamp, Temperature Probe
Order #: 80PK-8
Mfg #: 200360
Availability:Out of stockSpecial Price $175.49 Regular Price $194.99 - Fluke TP1Slim Reach Flat Blade Probe for Fluke Lead Sets
Order #: TP1E
Mfg #: 650887
Availability: Ships in 3-4 WeeksSpecial Price $20.69 Regular Price $22.99 - Fluke I1010AC/DC Clamp-on Current Probe 600A/1000A
Order #: I-1010
Mfg #: 617735
Availability:Out of stockSpecial Price $395.99 Regular Price $439.99 - Fluke I410AC/DC Clamp-on Current Probe, 400A
Order #: I-410
Mfg #: 617727
Availability:Out of stockSpecial Price $251.99 Regular Price $279.99 - Fluke FVF-SC2Software & Cable for 189, 187 & 289
Order #: FVF-SC2
Mfg #: 1576734

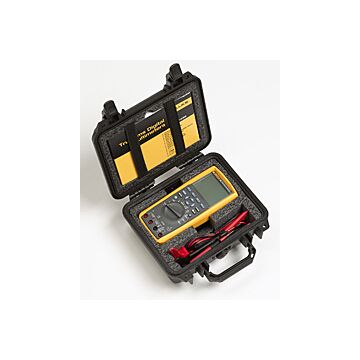

Availability:Out of stockSpecial Price $257.39 Regular Price $285.99 - Fluke CXT280Rugged Pelican Hard Case
Order #: CXT280
Mfg #: 3352571
Availability: Ships in 2-3 weeksSpecial Price $202.49 Regular Price $224.99 - Fluke 80PK-EXTType K Extension Wire Kit,T/C Assembly,3m
Order #: 80PK-EXT
Mfg #: 1288241
Availability: Ships in 1-2 weeksSpecial Price $62.99 Regular Price $69.99 - Fluke AC283HD Plunger-style Pincer Grip Set
Order #: AC83
Mfg #: 5130530
Availability:Out of stockSpecial Price $39.99 Regular Price $49.99 - Fluke TL225SureGrip Stray Voltage Adapter Test Lead Kit
Order #: 80152TL
Mfg #: 2429268
Availability: Ships in 3-4 WeeksSpecial Price $119.69 Regular Price $132.99 - Fluke TLK289Industrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:Out of stockSpecial Price $152.99 Regular Price $169.99 - Fluke C1600Gear Box for Meter and Accessories
Order #: C1600
Mfg #: 2091049
Availability:Out of stockSpecial Price $77.39 Regular Price $85.99 - Fluke TL220Industrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:Out of stockSpecial Price $76.49 Regular Price $84.99 - Fluke TP38Slim-Reach Test Probe Set, Insulated
Order #: TP38
Mfg #: 1541636
Availability: Ships in 2-3 WeeksSpecial Price $20.69 Regular Price $22.99 - Fluke L215SureGrip Kit with Probe Light and Probe Extender
Order #: L215
Mfg #: 2096368
Availability:Out of stockSpecial Price $103.49 Regular Price $114.99 - Fluke C116Soft Carrying Case, 9.5" x 9.0" x 2.6"
Order #: 80277TL
Mfg #: C116
Availability:Out of stockSpecial Price $35.99 Regular Price $39.99 - Fluke PV350Digital Pressure/Vacuum Module
Order #: PV350
Mfg #: 919811
Availability: Ships in 2-3 WeeksSpecial Price $575.99 Regular Price $639.99 - Fluke 80PK-26SureGrip Tapered Temperature Probe
Order #: 80PK-26
Mfg #: 2098714
Availability:Out of stockSpecial Price $121.49 Regular Price $134.99 - Fluke 80K-15Electronic Air Cleaner Probe
Order #: 80K-15
Mfg #: 618113
Availability: Ships in 2-3 weeksSpecial Price $278.99 Regular Price $309.99 -
- Fluke C345Soft Carrying Case, Polyester,Black/Yellow
Order #: C345
Mfg #: 3311173
Availability:Out of stockSpecial Price $89.99 Regular Price $99.99 - Fluke 80BK-AIntegrated DMM Temperature Probe,Type K
Order #: 80BK
Mfg #: 2747801
Availability:Out of stockSpecial Price $44.99 Regular Price $49.99 - Fluke TL238SureGrip Test Lead Set for High Energy Environments
Order #: TL238
Mfg #: 2132831
Availability:Out of stockSpecial Price $77.39 Regular Price $85.99 - Fluke TL910Electronic Test Probes w/Replacement Tips
Order #: TL910
Mfg #: 1616632
Availability: Ships in 3-4 WeeksSpecial Price $69.29 Regular Price $76.99 - Fluke TP74Test Lead Accessory Set, Lantern Tip Test Probe,Red/Blk
Order #: TP74
Mfg #: 1541649
Availability:Out of stockSpecial Price $20.69 Regular Price $22.99 - Fluke TL762mm/4mm Probe & Silicone Test Lead Set
Order #: TL76
Mfg #: 2032684
Availability:Out of stockSpecial Price $35.99 Regular Price $39.99 - Fluke 80T-150UAUniversal Temperature Probe
Order #: 80T-150UA
Mfg #: 3190456
Availability:Out of stockSpecial Price $269.99 Regular Price $299.99 - Fluke TLK287Electronics Master Test Lead Set
Order #: TLK287
Mfg #: 3045631
Availability: Ships in 3-4 WeeksSpecial Price $152.99 Regular Price $169.99
Specifications | ||
DC volts | Range / resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
Basic accuracy | 0.025% | |
AC volts | Range / resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
Basic accuracy | 0.4% (True-RMS) | |
DC current | Range / resolution | 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
Basic accuracy | 0.05% | |
AC current | Range / resolution | 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
Basic accuracy | 0.6% (True-RMS) | |
Temperature (excluding probe) | Range / resolution | -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) |
Basic accuracy | 1.00% | |
Resistance | Range / resolution | 50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ |
Basic accuracy | 0.05% | |
Capacitance | Range / resolution | 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF |
Basic accuracy | 1.00% | |
Frequency | Range / resolution | 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
Basic accuracy | 0.005% | |
Connectivity | Optional infrared connector via Fluke ir3000 FC | |
General Specifications | ||
Maximum voltage between any terminal and earth ground | 1000 V | |
Battery type | 6 AA alkaline batteries, NEDA 15A IECLR6 | |
Battery life | 100 hours minimum, 200 hours in logging mode | |
Temperature | Operating | -20°C to 55°C |
Storage | -40°C to 60°C | |
Relative humidity | 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) | |
Electromagnetic compatibility | EMC EN61326–1 | |
Vibration | Random vibration per MIL-PRF-28800F Class 2 | |
Shock | 1 meter drop per IEC/EN 61010–1 3rd Edition | |
Size (H x W x L) | 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) | |
Weight | 870.9 g (28 oz) | |
Multiple on screen displays | Yes | |
True-RMS AC bandwidth | 100 kHz | |
dBV/dBm | Yes | |
DC mV resolution | 1 μV | |
Megohm range | Up to 500 MΩ | |
Conductance | 50.00 nS | |
Continuity beeper | Yes | |
Battery/fuse access | Yes/Yes | |
Elapse time clock | Yes | |
Time of day clock | Yes | |
Min-max-avg | Yes | |
Duty cycle | Yes | |
Pulse width | Yes | |
Isolated optical interface | Yes | |
Auto/touch hold | Yes | |
Reading memory | Yes | |
Log to PC | Yes | |
Interval/event logging | Yes | |
Logging memory | Up to 15,000 readings | |
Wireless connectivity (optional) | Yes |
