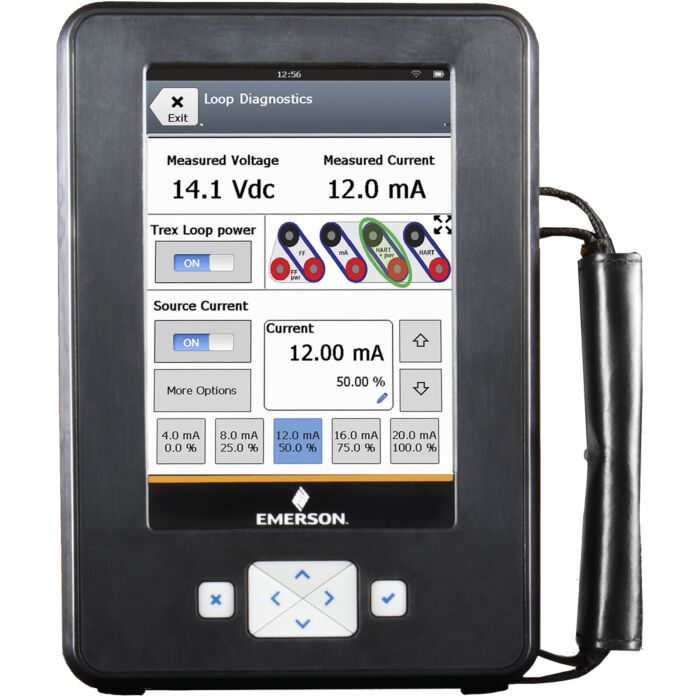

Emerson TREXLFPKLWS3 Device Communicator PLUS with HART & Fieldbus, IS, Wireless, 3 Year Standard Support

Order # TREXLFPKLWS3 | Mfg # TREXLFPKLWS3

$13,886.00

In stock

Ships Free Over $100

As the industry's largest Emerson distributor, we understand the critical role the Emerson AMS Trex Device Communicator plays in streamlining maintenance, troubleshooting, and calibration across your plant operations. We're proud to provide a full-service solution tailored to Emerson customers, ensuring you get the most out of your investment.

Emerson AMS TREX Device Communicator Options Worksheet

Emerson AMS TREX Device Communicator Datasheet

Emerson AMS Trex Device Communicator User Manual

Emerson AMS Trex Device Communicator Quick Start Guide

Have trouble finding what you're looking for? Configure your TREX Now!

Also Available:

Rental Buy Used

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Emerson TREX Highlights

L - Device Communicator Plus communication module - Includes additional Lead Set with connectors.
F - HART + Foundation Fieldbus Applications - Includes Foundation Fieldbus Power Plug when ordered with Device Communicator Plus communication module (L).
P - Rechargeable Li-Ion Power Module
KL - ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable)
W - Wireless - Includes Bluetooth, WiFi, and NFC radios. Available only in countries where spectrum approval has been obtained.
S3 - Standard Support (3 Year) - Includes technical support and software updates.

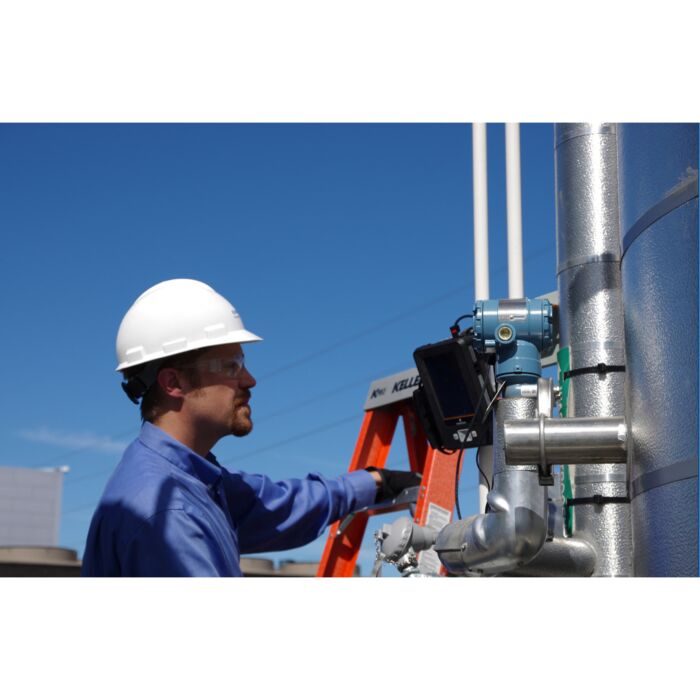

Quickly fix issues in the field with advanced device diagnostics
Configure and test valves inline
Improve efficiency with a modern, intuitive user interface
Software updates can be downloaded. See PDF in the technical resources tab for more information

Device Communicator Plus Communication Module

HART terminal
Enables HART device communication
HART + power terminal
Enables HART communication with the Trex unit, and provides power to one HART device in a bench setup.
Connectors: Two Banana Jack Plugs
Includes HART power supply, resistors (167 Ohm), current control, and ammeter
Current Range: 3 -22.5 mA
mA terminal (external ammeter)
Measures current on a 4-20 mA current loop.
Current Range: Up to 22.5 mA
Resolution: 0.1 mA
Fieldbus (FF) terminal
Enables Foundation Fieldbus device communication
FF + FF pwr terminal
Provides power to one Foundation Fieldbus device in a bench setup.
Connector: One Banana Jack Plug (Power conditioner included)
Current Range: 0- 38 mA

Technical Resources

Emerson AMS TREX Device Communicator Options Worksheet
Emerson AMS TREX Device Communicator Datasheet
Emerson AMS Trex Device Communicator User Manual
Emerson AMS Trex Device Communicator Quick Start Guide
5 Easy Steps to Upgrade Your Emerson AMS TREX Device Communicator
Emerson AMS TREX Device Battery Datasheet
Emerson AMS TREX Device USB Field Bus Interface Accessory Datasheet
Emerson AMS TREX Device Wireless HART Provisioning Datasheet
Emerson AMS TREX Device Radar Master App Datasheet
Emerson AMS Trex Device Communicator Inspection Rounds 1.0 Quick Start Guide
Emerson AMS Trex Device Communicator ValveLink Mobile Quick Start Guide
Emerson White Paper: Improving Data Integrity with Auto Sync
Emerson White Paper: Five Strategies to Drive Reliability with Handheld Communicators
Emerson White Paper: Three Ways to Increase Efficiency with Power the Loop Technology
Emerson: Your Journey to Becoming the Reliability Program of the Year Article
Emerson: How to Master Data Management Article

Specifications

Processor, Memory, and Operating System
Microprocessor	800 MHz ARM Cortex A8 / NXP
Memory Internal Flash	2 GB NAND and 32 GB extended flash
Operating System	Windows Embedded Compact 2013
RAM	512 MB DDR3 SDRAM

Physical
Weight	Approximately 2.9 lbs (1330 grams)
Display	5.7 inch (14.5 cm) color VGA resistive touchscreen
Keypad	X button – similar to a Back key

Cables included with U.S., Europe, and U.K. plugs

Power Supply / Charger
Battery	Rechargeable Lithium-Ion power module
Battery Operating Time	8+ hours of typical use
Charge Time	3 to 4 hours
LEDs	6 LEDs. Five LEDs for indicating the progress of charging. One LED to indicate the AC adapter is charging the power module.
Battery Charger Options	Input voltage 90-264 VAC, 47-63 Hz

Connections
USB	Micro USB Connector. USB 2.0 Remove the USB cable from the Trex unit before connecting to a device.
Battery Charger	Barrel Round Plug Tip

Wireless
Wireless Approvals	FCC, CE, RED and IC Approvals, Certified for use in over 100 countries
Bluetooth	2.1, Range up to 10 m
Wi-Fi	802.11 b/g, Range up to 33 m
NFC	Active NFC, Range up to 20 cm

Communication Modules
Device Communicator Communication Module	HART terminal Enables HART device communication Connectors: Two Banana Jack Plugs Optional Internal Resistor: 250 or 500 Ohm
Fieldbus (FF) terminal	Foundation Fieldbus device communication Connectors: Two Banana Jack Plugs
Device Communicator Plus Communication Module	HART terminal, Enables HART device communication
HART + power terminal	Enables HART communication with the Trex unit, and provides power to one HART device in a bench setup. Connectors: Two Banana Jack Plugs Includes HART power supply, resistors (167 Ohm), current control, and ammeter. Current Range: 3 -22.5 mA mA terminal (external ammeter) Measures current on a 4-20 mA current loop.Connectors: Two Banana Jack Plugs. Current Range: Up to 22.5 mA. Resolution: 0.1 mA Fieldbus (FF) terminal Enables Foundation Fieldbus device communication. Connectors: Two Banana Jack Plugs FF + FF power terminal Provides power to one Foundation Fieldbus device in a bench setup. Connector: One Banana Jack Plug (Power conditioner included). Current Range: 0- 38 mA

Environmental
Usage	-20°C to +55°C (-4°F to 131°F). For IS approval: -20°C to +50°C (-4°F to 122°F)
Charge	+10°C to +45°C (50°F to 113°F)
Storage with power module	-20°C to +50°C (-4°F to 122°F) (less than 1 month)
Storage without power module	-20°C to +60°C (-4 °F to 140°F)
Enclosure Rating	IP54
Shock	The unit shall survive a 1-meter, all sides and corners drop test onto concrete.

Upgrade Studio Requirements
Installation	Windows 7 Professional Service Pack (SP1) 1 (32 and 64-bit) Windows 10 Professional 512 MB of free disk space A Windows user account with Administrator privileges
