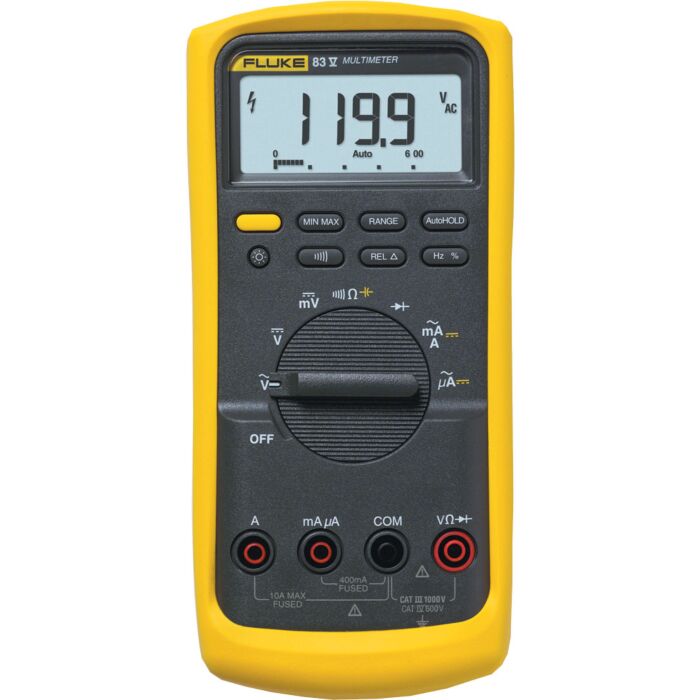

Fluke 83-5 83V Digital Industrial Multimeter

Order # FLUKE-83-5 | Mfg # 2075004
Save 20%
$513.99
$411.19
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Fluke Model # 83-5
  • Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
  • Large display digits and 2 level bright white backlight for increased visibility
  • Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
  • Improved sleep mode for long battery life
  • Relative mode to remove test lead resistance from low ohms measurements
  • Auto and manual ranging for maximum flexibility

Each Unit Includes

  • C81Y yellow protective holster and Flex-Standâ„¢
  • Users Manual
  • 9V battery installed
  • TL75 Hard Pointâ„¢ Lead Set with AC70A Alligator Clips

Webinars

Electrical Safety Measurement Webinar with Fluke

Technical Resources

Fluke 80 Series V Industrial Multimeter - User's Manual
Fluke 80 Series V Industrial Multimeter - User's Manual Supplement
Fluke 80 Series V Industrial Multimeter - Calibration Manual
Fluke 80 Series V Industrial Multimeter - Calibration Manual Supplement
Fluke 80 Series V Industrial Multimeter - Safety Sheet
Fluke 80 Series V Industrial Multimeter - Quick Reference Guide
Fluke 80 Series V Industrial Multimeter - Statement of Memory Volatility
Fluke 80 Series V Industrial Multimeter - CSA Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - EMC Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - TUV SUD Certificate of Conformity
Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Brochure - Add Wireless to your Fluke Digital Multimeter
Brochure - Fluke DMM Selection Guide
Brochure - Fluke 27II / 28II Sales Conversion Guide
Brochure - The New Standard for Rugged
Fluke 83V / 87V Digital Multimeter - Technical Data
Application - ABCs of DMMs: Multimeter Features and Functions Explained
Fluke - Electrical Safety Measurement Webinar

Specifications

Specifications
Voltage DC Maximum voltage 1000 V
Accuracy ±(0.1% + 1)
Maximum resolution 100 µV
Voltage AC Maximum voltage 1000 V
Accuracy ±(0.5% + 2)
Maximum resolution 0.1 mV
Current DC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(0.4% + 2)
Maximum resolution 0.01 mA
Current AC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(1.2% + 2)
Maximum resolution 0.1 µA
Resistance Maximum resistance 50 MΩ
Accuracy ±(0.4% + 1)
Maximum resolution 0.1 Ω
Capacitance Maximum capacitance 9,999 µF
Accuracy ±(1% + 2)
Maximum resolution 0.01 nF
Frequency Maximum frequency 200 kHz
Accuracy ±(0.005% + 1)
Maximum resolution 0.01 Hz
Duty cycle Maximum duty cycle 99.90%
Accuracy ±(0.2% per khz + 0.1%)
Maximum resolution 0.10%
Conductance Maximum conductance 60.00 nS
Accuracy ±(1.0% + 10)
Maximum resolution 0.01 nS
Diode Range 3 V
Resolution 1 mV
Accuracy ±(2% + 1)
Duty cycle range Accuracy within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature –20°C to +55°C
Storage temperature –40°C to +60°C
Humidity (without condensation) 0% – 90% (0°C – 35°C)
0% – 70% (35°C – 55°C)
Operating altitude 2000 m
Safety Specifications
Overvoltage category EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals CSA, TÃœV
Mechanical and General Specifications
Display Digital 6000 counts updates 4/sec
Analog 32 segments, updates 40/sec
Frequency 19,999 counts, updates 3/sec at > 10 Hz
Size 201 x 98 x 52 mm (with holster)
Weight 355 g
Weigh with holster and flex–stand 624 g
Warranty Lifetime
Battery life Alkaline~400 hours typical, without backlight
Shock 1 Meter drop per IEC 61010–1:2001
Vibration Per MIL–PRF–28800 for a Class 2 instrument



Visit our Fluke Digital Multimeter Selection Guide
