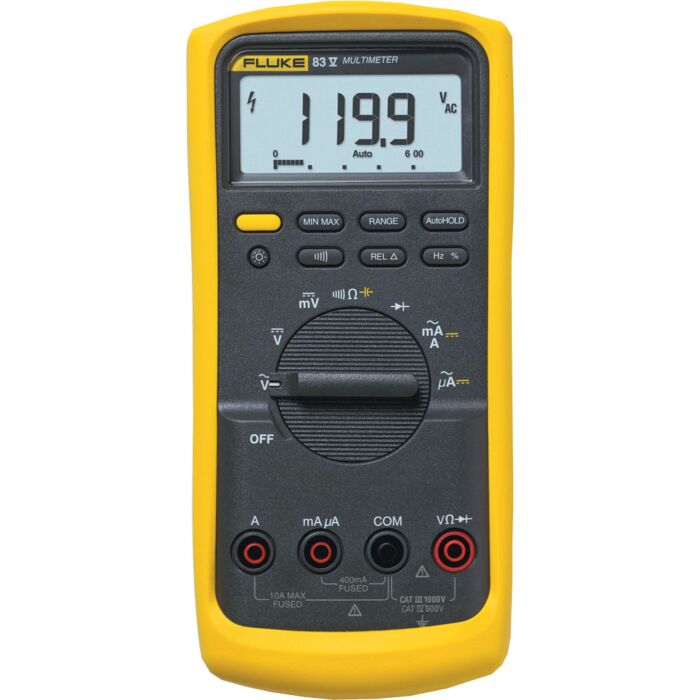

Fluke 83-5

Fluke 83-5 83V Digital Industrial Multimeter

Order # FLUKE-83-5

Mfg # 2075004

call-regular 800-828-1470
Save 11%
$503.99
$448.55
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications
  • Accessories

Fluke 83-5 83V Digital Industrial Multimeter

Order # FLUKE-83-5 | Mfg # 2075004
Save 11%
$503.99
$448.55
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Fluke Model # 83-5
  • Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
  • Large display digits and 2 level bright white backlight for increased visibility
  • Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
  • Improved sleep mode for long battery life
  • Relative mode to remove test lead resistance from low ohms measurements
  • Auto and manual ranging for maximum flexibility

Each Unit Includes

  • C81Y yellow protective holster and Flex-Standâ„¢
  • Users Manual
  • 9V battery installed
  • TL75 Hard Pointâ„¢ Lead Set with AC70A Alligator Clips

Webinars

Electrical Safety Measurement Webinar with Fluke

Technical Resources

Fluke 80 Series V Industrial Multimeter - User's Manual
Fluke 80 Series V Industrial Multimeter - User's Manual Supplement
Fluke 80 Series V Industrial Multimeter - Calibration Manual
Fluke 80 Series V Industrial Multimeter - Calibration Manual Supplement
Fluke 80 Series V Industrial Multimeter - Safety Sheet
Fluke 80 Series V Industrial Multimeter - Quick Reference Guide
Fluke 80 Series V Industrial Multimeter - Statement of Memory Volatility
Fluke 80 Series V Industrial Multimeter - CSA Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - EMC Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - TUV SUD Certificate of Conformity
Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Brochure - Add Wireless to your Fluke Digital Multimeter
Brochure - Fluke DMM Selection Guide
Brochure - Fluke 27II / 28II Sales Conversion Guide
Brochure - The New Standard for Rugged
Fluke 83V / 87V Digital Multimeter - Technical Data
Application - ABCs of DMMs: Multimeter Features and Functions Explained
Fluke - Electrical Safety Measurement Webinar

Specifications

Specifications
Voltage DC Maximum voltage 1000 V
Accuracy ±(0.1% + 1)
Maximum resolution 100 µV
Voltage AC Maximum voltage 1000 V
Accuracy ±(0.5% + 2)
Maximum resolution 0.1 mV
Current DC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(0.4% + 2)
Maximum resolution 0.01 mA
Current AC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(1.2% + 2)
Maximum resolution 0.1 µA
Resistance Maximum resistance 50 MΩ
Accuracy ±(0.4% + 1)
Maximum resolution 0.1 Ω
Capacitance Maximum capacitance 9,999 µF
Accuracy ±(1% + 2)
Maximum resolution 0.01 nF
Frequency Maximum frequency 200 kHz
Accuracy ±(0.005% + 1)
Maximum resolution 0.01 Hz
Duty cycle Maximum duty cycle 99.90%
Accuracy ±(0.2% per khz + 0.1%)
Maximum resolution 0.10%
Conductance Maximum conductance 60.00 nS
Accuracy ±(1.0% + 10)
Maximum resolution 0.01 nS
Diode Range 3 V
Resolution 1 mV
Accuracy ±(2% + 1)
Duty cycle range Accuracy within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature –20°C to +55°C
Storage temperature –40°C to +60°C
Humidity (without condensation) 0% – 90% (0°C – 35°C)
0% – 70% (35°C – 55°C)
Operating altitude 2000 m
Safety Specifications
Overvoltage category EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals CSA, TÃœV
Mechanical and General Specifications
Display Digital 6000 counts updates 4/sec
Analog 32 segments, updates 40/sec
Frequency 19,999 counts, updates 3/sec at > 10 Hz
Size 201 x 98 x 52 mm (with holster)
Weight 355 g
Weigh with holster and flex–stand 624 g
Warranty Lifetime
Battery life Alkaline~400 hours typical, without backlight
Shock 1 Meter drop per IEC 61010–1:2001
Vibration Per MIL–PRF–28800 for a Class 2 instrument



Visit our Fluke Digital Multimeter Selection Guide

Loading...

Fluke 83-5 83V Digital Industrial Multimeter Accessories

checkbox-empty
checkbox-checked
Fluke C115 Soft Carry Case with Shoulder Strap
Fluke C115 Soft Carry Case with Shoulder Strap
Special Price $52.50 Save 11 % Regular Price $58.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL175 TwistGuard Test Leads
Fluke TL175 TwistGuard Test Leads
Special Price $40.93 Save 11 % Regular Price $45.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TLK289
Fluke TLK289 Industrial Master Test Lead Set
Special Price $213.59 Save 11 % Regular Price $239.99
View details external-link
checkbox-empty
checkbox-checked
Fluke PRV240
Fluke PRV240 Battery-powered voltage source proving unit
Special Price $177.99 Save 11 % Regular Price $199.99
View details external-link
checkbox-empty
checkbox-checked
Fluke C25
Fluke C25 Soft Carrying Case for Fluke Meters
Special Price $50.72 Save 11 % Regular Price $56.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TLK-220 US SureGrip Accessory Set with Meter Carrying Case
Fluke TLK-220 US SureGrip Accessory Set with Meter Carrying Case
Special Price $194.90 Save 11 % Regular Price $218.99
View details external-link
checkbox-empty
checkbox-checked
Fluke I2000 FLEX
Fluke I2000 FLEX Flex AC Current Clamp 20A, 200A & 2000A
Special Price $528.65 Save 11 % Regular Price $593.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80PK-8 Probe Pipe Clamp, Temperature Probe
Fluke 80PK-8 Probe Pipe Clamp, Temperature Probe
Special Price $226.94 Save 11 % Regular Price $254.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL71 Premium Test Lead Set
Fluke TL71 Premium Test Lead Set
Special Price $39.15 Save 11 % Regular Price $43.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL75
Fluke TL75 Hard Point Test Lead Set
Special Price $32.92 Save 11 % Regular Price $36.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TP1
Fluke TP1 Slim Reach Flat Blade Probe for Fluke Lead Sets
Special Price $26.69 Save 11 % Regular Price $29.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80AK Thermocouple Adapter Type K
Fluke 80AK Thermocouple Adapter Type K
Special Price $46.27 Save 11 % Regular Price $51.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL40 Retractable Tip Test Lead Set
Fluke TL40 Retractable Tip Test Lead Set
Special Price $61.40 Save 11 % Regular Price $68.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL26A 60" 5-Way Test Lead Set
Fluke TL26A 60" 5-Way Test Lead Set
Special Price $80.98 Save 11 % Regular Price $90.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80K-40
Fluke 80K-40 High Voltage Probe High Voltage Probe
Special Price $323.95 Save 11 % Regular Price $363.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL81A Deluxe Electronic Test Lead Kit
Fluke TL81A Deluxe Electronic Test Lead Kit
Special Price $193.12 Save 11 % Regular Price $216.99
View details external-link
checkbox-empty
checkbox-checked

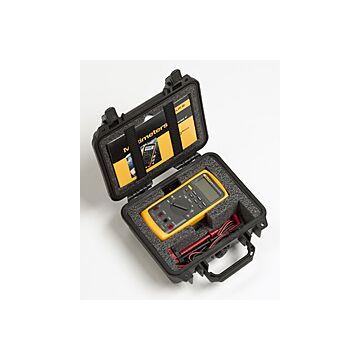

Fluke CXT80 Rugged Pelican Hard Case
Fluke CXT80 Rugged Pelican Hard Case
Special Price $249.19 Save 11 % Regular Price $279.99
View details external-link
checkbox-empty
checkbox-checked
Fluke H900 Test Lead Holder
Fluke H900 Test Lead Holder
Special Price $37.37 Save 11 % Regular Price $41.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TP80
Fluke TP80 Electronic Test Probes
Special Price $47.16 Save 11 % Regular Price $52.99
View details external-link
checkbox-empty
checkbox-checked
Fluke C550
Fluke C550 Premium Tool Bag - Water Resistant
Special Price $128.15 Save 11 % Regular Price $143.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TLK-225
Fluke TLK-225 SureGrip Master Accessory Set
Special Price $204.69 Save 11 % Regular Price $229.99
View details external-link
checkbox-empty
checkbox-checked
Fluke AC280 SureGrip Hook Clips
Fluke AC280 SureGrip Hook Clips
Special Price $48.05 Save 11 % Regular Price $53.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL220
Fluke TL220 Industrial Test Lead Set for All Fluke Meters
Special Price $97.89 Save 11 % Regular Price $109.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80PK-25 SureGrip Piercing Temperature Probe
Fluke 80PK-25 SureGrip Piercing Temperature Probe
Special Price $159.30 Save 11 % Regular Price $178.99
View details external-link
checkbox-empty
checkbox-checked
Fluke C35
Fluke C35 Soft Carrying Case, Polyester,Black/Yellow
Special Price $41.82 Save 11 % Regular Price $46.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL970 Hook & Pincer Test Lead Kit
Fluke TL970 Hook & Pincer Test Lead Kit
Special Price $115.69 Save 11 % Regular Price $129.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL224 SureGrip Silicon Test Leads
Fluke TL224 SureGrip Silicon Test Leads
Special Price $39.15 Save 11 % Regular Price $43.99
View details external-link
checkbox-empty
checkbox-checked
Fluke i410-KIT
Fluke I410-KIT AC/DC Current Clamp with Carrying Case
Special Price $368.45 Save 11 % Regular Price $413.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL222 SureGrip Silicone Right Angle Test Lead Set
Fluke TL222 SureGrip Silicone Right Angle Test Lead Set
Special Price $39.15 Save 11 % Regular Price $43.99
View details external-link
checkbox-empty
checkbox-checked
Myron L Company TP1
Myron L Company TP1
Special Price $847.78 Save 8 % Regular Price $921.50
View details external-link
checkbox-empty
checkbox-checked
Fluke AC283 HD Plunger-style Pincer Grip Set
Fluke AC283 HD Plunger-style Pincer Grip Set
Special Price $56.06 Save 11 % Regular Price $62.99
View details external-link
checkbox-empty
checkbox-checked
Fluke H80M Protective Holster with Magnetic Strap
Fluke H80M Protective Holster with Magnetic Strap
Special Price $69.41 Save 11 % Regular Price $77.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL221
Fluke TL221 Safety Silicone Lead Extension, 1.5m
Special Price $39.15 Save 11 % Regular Price $43.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80PK-24
Fluke 80PK-24 SureGrip Air Temperature Probe
Special Price $159.30 Save 11 % Regular Price $178.99
View details external-link
checkbox-empty
checkbox-checked
Fluke L210
Fluke L210 Probe Light Kit
Special Price $70.06 Save 9 % Regular Price $76.99
View details external-link
checkbox-empty
checkbox-checked
Fluke AC89
Fluke AC89 Insulation Piercing Clip
Special Price $55.17 Save 11 % Regular Price $61.99
View details external-link
checkbox-empty
checkbox-checked

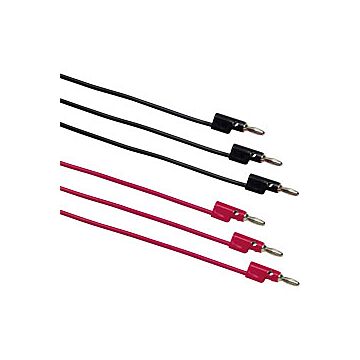

Fluke TL935 Patch Cord Kit (60, 90, 120cm)
Fluke TL935 Patch Cord Kit (60, 90, 120cm)
Special Price $74.75 Save 11 % Regular Price $83.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL76
Fluke TL76 2mm/4mm Probe & Silicone Test Lead Set
Special Price $46.71 Save 11 % Regular Price $52.49
View details external-link
checkbox-empty
checkbox-checked
Fluke i410
Fluke I410 AC/DC Clamp-on Current Probe, 400A
Special Price $311.49 Save 11 % Regular Price $349.99
View details external-link
checkbox-empty
checkbox-checked
Fluke BP980 Double Banana Plug Kit
Fluke BP980 Double Banana Plug Kit
Special Price $56.06 Save 11 % Regular Price $62.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL940
Fluke TL940 Mini-Hook Test Leads
Special Price $37.37 Save 11 % Regular Price $41.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80PK-26 SureGrip Tapered Temperature Probe
Fluke 80PK-26 SureGrip Tapered Temperature Probe
Special Price $159.30 Save 11 % Regular Price $178.99
View details external-link
checkbox-empty
checkbox-checked
Fluke AC87 Heavy Duty Bus Bar Clip Set
Fluke AC87 Heavy Duty Bus Bar Clip Set
Special Price $56.06 Save 11 % Regular Price $62.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL80A Basic Electronic Test Lead Kit
Fluke TL80A Basic Electronic Test Lead Kit
Special Price $104.12 Save 11 % Regular Price $116.99
View details external-link
checkbox-empty
checkbox-checked
Fluke Toolpak Meter Hanging Kit
Fluke Toolpak Meter Hanging Kit
Special Price $48.94 Save 11 % Regular Price $54.99
View details external-link
checkbox-empty
checkbox-checked
Fluke AC285 SureGrip Alligator Clips
Fluke AC285 SureGrip Alligator Clips
Special Price $40.04 Save 11 % Regular Price $44.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL960 Micro-Hook Test Leads
Fluke TL960 Micro-Hook Test Leads
Special Price $44.49 Save 11 % Regular Price $49.99
View details external-link
checkbox-empty
checkbox-checked
Fluke I1010-KIT AC/DC Current Clamp with Meter Carrying Case
Fluke I1010-KIT AC/DC Current Clamp with Meter Carrying Case
Special Price $528.65 Save 11 % Regular Price $593.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL950 Mini-Pincer Test Leads
Fluke TL950 Mini-Pincer Test Leads
Special Price $58.73 Save 11 % Regular Price $65.99
View details external-link
checkbox-empty
checkbox-checked
Fluke C1600 Gear Box for Meter and Accessories
Fluke C1600 Gear Box for Meter and Accessories
Special Price $110.35 Save 11 % Regular Price $123.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL910
Fluke TL910 Electronic Test Probes with Replacement Tips
Special Price $88.99 Save 11 % Regular Price $99.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TP220 SureGrip Industrial Test Probes
Fluke TP220 SureGrip Industrial Test Probes
Special Price $28.47 Save 11 % Regular Price $31.99
View details external-link
checkbox-empty
checkbox-checked
Fluke L215 SureGrip Kit with Probe Light and Probe Extender
Fluke L215 SureGrip Kit with Probe Light and Probe Extender
Special Price $141.95 Save 9 % Regular Price $155.99
View details external-link
checkbox-empty
checkbox-checked
Fluke I200
Fluke I200 200A AC Clamp with Banana Jack
Special Price $207.36 Save 11 % Regular Price $232.99
View details external-link
checkbox-empty
checkbox-checked
Order Fluke 80TK on sale from Transcat's 80 Probes seriev
Fluke 80TK Thermocouple Module
Special Price $198.46 Save 11 % Regular Price $222.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80K-6
Fluke 80K-6 High Voltage Probe
Special Price $207.36 Save 11 % Regular Price $232.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL930
Fluke TL930 Patch Cords, 24" (60cm)
Special Price $30.25 Save 11 % Regular Price $33.99
View details external-link
checkbox-empty
checkbox-checked
Fluke AC220 SureGrip Alligator Clips
Fluke AC220 SureGrip Alligator Clips
Special Price $57.84 Save 11 % Regular Price $64.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TP920
Fluke TP920 Test Probe Adapter Set
Special Price $52.50 Save 11 % Regular Price $58.99
View details external-link
checkbox-empty
checkbox-checked
Fluke 80PK-27
Fluke 80PK-27 SureGrip Industrial Surface Temperature Probe
Special Price $405.83 Save 11 % Regular Price $455.99
View details external-link
checkbox-empty
checkbox-checked
Fluke TL932 Patch Cords, 36" (90cm)
Fluke TL932 Patch Cords, 36" (90cm)
Special Price $30.25 Save 11 % Regular Price $33.99
View details external-link
Total:

All Products in Series

Fluke 87-5 Industrial True RMS Multimeter with Temperature
Fluke 87-5 Industrial True RMS Multimeter with Temperature
Special Price $471.69 Save 11 % Regular Price $529.99
View details external-link
Fluke 87-5/E2-Kit
Fluke 87-5/E2 KIT 87V Industrial True-RMS Multimeter Combo Kit
Special Price $667.49 Save 11 % Regular Price $749.99
View details external-link
Fluke 87V/PRV240
Fluke 87V/PRV240 True-RMS DMM & voltage source proving unit kit
Special Price $645.24 Save 11 % Regular Price $724.99
View details external-link
Fluke 87-5 for Rent
Fluke 87-5 for Rent, Industrial True RMS Multimeter
View details external-link
Fluke 87V/IMSK
Fluke 87V/IMSK Industrial Multimeter Service Combo Kit
Special Price $525.09 Save 11 % Regular Price $589.99
View details external-link
