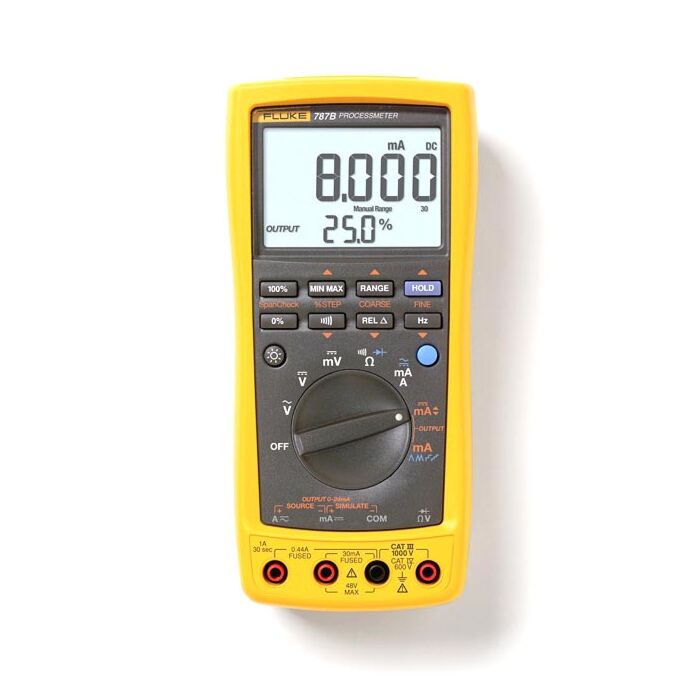

Fluke 787B Process Meter Digital Multimeter & Loop Calibrator

Fluke 787B ProcessMeter, TRMS DMM & mA loop calibrator

Order # 787B

Mfg # 4777186

call-regular 800-828-1470
$1,338.99
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications
  • Accessories

Fluke 787B ProcessMeter, TRMS DMM & mA loop calibrator

Order # 787B | Mfg # 4777186
$1,338.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

787B Highlights

The Fluke 787B ProcessMeter™ double troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Whether you only need to source and simulate mA, or need a 24V loop power supply, Fluke has a ProcessMeter™ test tool designed specifically to meet your needs. Based on the trusted measurement capabilities of the Fluke 87 DMM, the 787B adds the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications.

With Fluke Connect® mobile app and desktop software compatibility technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere*.

  • 20 mA dc current source/measure/simulate
  • Simultaneous mA and % of scale readout
  • DMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards
  • Fluke Connect® compatibility for wireless data logging (with IR3000FC module)*
  • Precision 1000 V, 440 mA true-rms digital multimeter
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode test and continuity beeper
  • Manual step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes

Each 787B Includes

  • TL71 Premium Test Lead Set plus AC72 Alligator Clips
  • Four AA alkaline batteries (installed)
  • Safety Sheet
  • Quick Reference Guide

Webinars

Electrical Safety Measurement Webinar with Fluke

Technical Resources

Specifications

Measurement function Range and resolution Best accuracy (% of reading + LSD)
V dc 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.1% + 1
V ac (true-rms) 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.7% + 2
mA dc 30.000 mA .05% + 2
A dc 1.000 A (0.440 A continuous) 0.2% + 2
A ac 1.000 A (0.440 A continuous) 1% + 2
Resistance 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M 0.2% + 1
Frequency (0.5 Hz to 20 kHz) 199.99 Hz, 1999.9 Hz, 19.999 kHz .005% + 1
Diode test 2.000 V (shows diode voltage drop) 2% + 1
Continuity Beeps for resistance < approx. 100 ohms
Output function Range and resolution Drive capability Accuracy (% of span)
DC current output (Internal battery operation) 0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA 24 V compliance or, 1,200 ohms, @ 20 mA 0.05%
DC current simulate (Ext. 15 V to 48 V loop supply) 0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA 1000 ohms, @ 20 mA 0.05%
Current adjustment modes Manual: Coarse, Fine, 25% and 100% step
Automatic: Slow Ramp, Fast Ramp, 25% step
Temperature range of 18 °C to 28 °C, for one year after calibration
General specifications
Maximum voltage applied between any jack and earth ground 1000 V RMS
Storage temperature -40 °C to 60 °C
Operating temperature -20 °C to 55 °C
Temperature coefficient  0.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C)
Relative humidity  95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C
Vibration  Random, 2 g, 5-500 Hz
Shock  1 meter drop test
Safety  IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V
Size (HxWxL)  50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in)
Weight  600 g (1.3 lbs)
Battery Four AA alkaline batteries
Battery life  140 hours typical (measurement), 10 hours typical (sourcing 12 mA)
Warranty  Three years
