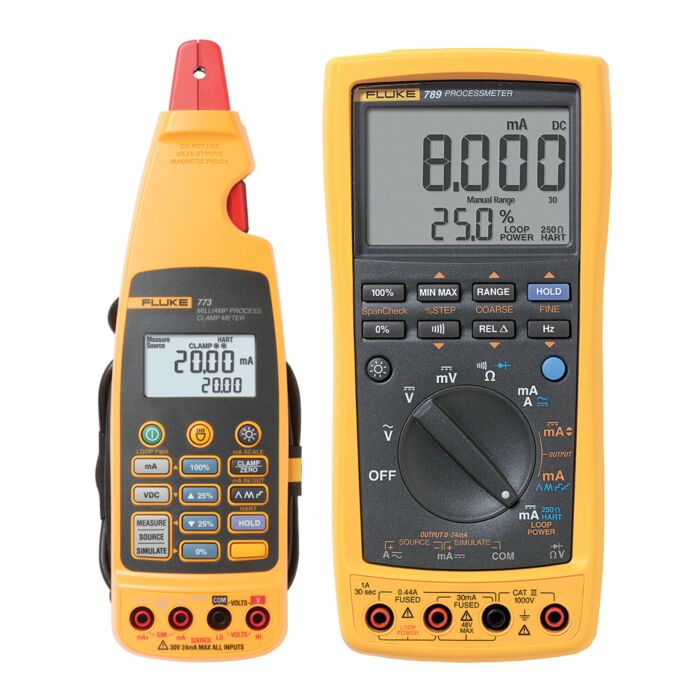

Fluke 789/773

789 Process Meter and 773 clamp Meter Bundle package

Order #: 789/773

Mfg #: 4740387

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,090.99

Fluke 789/773

789 Process Meter and 773 clamp Meter Bundle package

Order #: 789/773

Mfg #: 4740387

$2,090.99

Buy the Fluke-773 ClampMeter and 789 ProcessMeter bundle and SAVE over $300.

Availability:
In stock
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Bundle Highlights

  • Measure 4-20 mA signals without breaking the loop with the 773 mA ClampMeter. Also, source or measure 4-20 mA and 1-5 or 0-10 V dc signals to test analog I/O
  • Measure any analog process or automation signal and source mA signals with the 789 ProcessMeter
  • Measure inputs and outputs of motors and drives safely with the CAT IV 600V rated 789 ProcessMeter

Fluke 789 Features

  • 24 V loop power supply
  • HART mode setting with loop power (adds 250 ohm resistor)
  • 100% larger dual display
  • 1200 ohm drive capability on mA source
  • Enhanced backlight with two brightness settings
  • Improved battery power with four AA batteries
  • 0-100% mA Span Check buttons to toggle between 4 and 20 mA
  • Infrared I/O serial port compatible with FlukeView Forms
  • V 2.1 Software (available Feb. 2003)
  • 5 V dc measurement capability on the 4 V dc range for precise 1-5 V measurements
  • Externally accessible fuses for easy replacement
  • DMM designed to meet 1000 V IEC 1010 Cat III standards
  • Precision 1000 V, 440 mA digital multimeter
  • Measure ac and dc volts
  • AC and dc voltage accuracy: 0.05 % dc current accuracy, 1 uA resolution to 30 mA
  • Simultaneous mA and % of scale readout
  • True-rms ac voltage measurement
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode Test and Continuity Beeper
  • 20 mA dc current source / loop calibrator / simulator
  • Simultaneous mA and % of scale readout
  • Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes V overload protection on V, ohms, frequency, mA (backed-up by 440 mA 1000 V fuse)
  • Process Meter

Fluke 789 Includes

  • TL71 Premium Test Lead Set
  • AC72 Alligator Clips
  • Four AA alkaline batteries (installed)
  • Users Manual
  • Quick Reference Guide

If you need more time in your busy day take a good look at the Fluke 773 mA Clamp Meters. It’s designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.

Fluke 733 Features

  • Best in class 0.2 % accuracy
  • 0.01 mA resolution and sensitivity
  • Measure 4 to 20 mA signals without ”breaking the loop”
  • Measure mA signals for PLC and control system analog I/O
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement Spotlight illuminates hard to see wires in dark enclosures
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements
  • Measure 4 to 20 mA signals with in-circuit measurement
  • Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
  • Source 4 to 20 mA signals for testing control system I/O or I/Ps
  • mA output linear ramp or 25% step output
  • DC voltage measurement to verify 24V power supplies or voltage I/O signals
  • Source DC voltage to test input devices that accept a 1-5V or 0 to 10V signals
  • Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp
  • mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal
  • Voltage output linear ramp or 25% step output

Fluke 733 Includes

  • Four AA alkaline batteries (installed)
  • Soft carrying case
  • TL75 test leads
  • AC 72 detachable clip
  • TL 940 mini hook test leads
  • Instruction sheet
  • Hanging tool with hook and loop strap

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

  1. Fluke Toolpak
    Fluke Toolpak
    Meter Hanging Kit

    Order #: TPAK80-4

    Mfg #: 1281997

    Availability:
    Out of stock
    Special Price $42.29 Regular Price $46.99
  2. Fluke TL175
    Fluke TL175
    TwistGuard Test Leads

    Order #: TL175

    Mfg #: 3521976

    Availability:
    Out of stock
    Special Price $31.49 Regular Price $34.99
  3. Fluke TL220
    Fluke TL220
    Industrial Test Lead Set for All Fluke Meters

    Order #: TL20

    Mfg #: 2003625

    Availability:
    Out of stock
    Special Price $76.49 Regular Price $84.99
  4. Fluke C125
    Fluke C125
    Case for Fluke 120 Series ScopeMeters

    Order #: C125

    Mfg #: 646858

    Availability:
    Out of stock
    Special Price $38.69 Regular Price $42.99
  5. Fluke i1010
    Fluke I1010
    AC/DC Clamp-on Current Probe 600A/1000A

    Order #: I-1010

    Mfg #: 617735

    Availability:
    Out of stock
    Special Price $395.99 Regular Price $439.99
  6. Fluke i410
    Fluke I410
    AC/DC Clamp-on Current Probe, 400A

    Order #: I-410

    Mfg #: 617727

    Availability:
    Out of stock
    Special Price $251.99 Regular Price $279.99
  7. Fluke TP1
    Fluke TP1
    Slim Reach Flat Blade Probe for Fluke Lead Sets

    Order #: TP1E

    Mfg #: 650887

    Availability: Ships in 3-4 Weeks
    Special Price $20.69 Regular Price $22.99
  8. Fluke TP220
    Fluke TP220
    SureGrip Industrial Test Probes

    Order #: TP20

    Mfg #: 1670056

    Availability:
    Out of stock
    Special Price $20.69 Regular Price $22.99
  9. Fluke FVF-BASIC
    Fluke FVF-BASIC
    Flukeview Forms Basic Software with Cable

    Order #: FVF-BASIC

    Mfg #: FVF-BASIC

    Availability: Ships in 2-3 weeks
    Special Price $161.99 Regular Price $179.99
  10. Order Fluke 80TK on sale from Transcat's 80 Probes seriev
    Fluke 80TK
    Thermocouple Module

    Order #: 80TK

    Mfg #: 736736

    Availability: Ships in 2-3 Weeks
    Special Price $143.99 Regular Price $159.99
Fluke 789 Specifications
Current measurement Range 0-1 A AC or DC
Resolution 1 mA
Accuracy 0.2% + 2 LSD (DC)
Range 0-30 mA
Resolution 0.001 mA
Accuracy 0.05% + 2 lSD
Current sourcing Range 0-20 mA or 4-20 mA
Resolution 0.05% of span
Drive capability 24 V Compliance or 1200 Ω @ 20 mA
Frequency to 19.999 kHz, 0.005% + 1 LSD
Continuity Beeps for resistance < 100 Ω
Voltage measurement Range 0-1000 V AC (true-rms) or DC
Resolution 0.1 mV to 1.0 V
Accuracy 0.1% Rdg + 1 LSD (VDC)
Resistance measurement to 40 MΩ, 0.2% + 1 LSD
Diode test 2.0 V shoes diode voltage drop
Display current and % of span Yes
Auto Step, Auto Ramp Yes
Environmental Specifications
Operating temperature -20°C to 55°C
Storage temperature -40°C to 60°C
Humidity (without condensation) 95% up to 30°C
75% up to 40°C
45% up to 50°C
35% up to 55°C
Temperature coefficient 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage category IEC 1010-1 CAT III 1000 V
IEC 1010-1 CAT IV 600 V
Maximum voltage 1000 V RMS
Mechanical and General Specifications
Size (H x W x L) 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight 610 g (1.6 lbs)
Batteries 4 AA alkaline batteries
Warranty 3 years
Battery life 140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibration Random, 2 g, 5-500 Hz
1 meter drop test
Fluke 772 / 773 Milliamp Process Clamp Meter - Instruction Sheet
Fluke 772 / 773 Milliamp Process Clamp Meter - Calibration Manual
Fluke 772 / 773 Milliamp Process Clamp Meter - Technical Data
