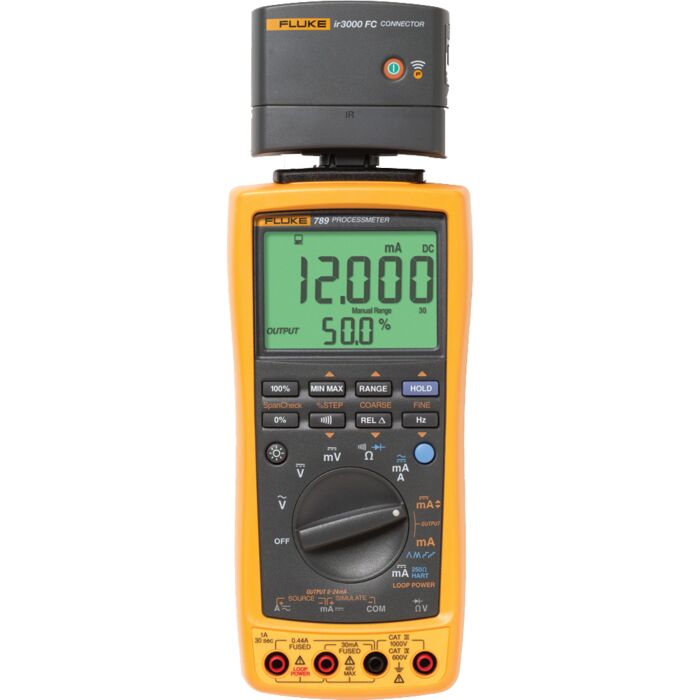

Fluke 789/IR3000 789 Process Meter and IR3000 adapter Bundle Package

Order # 789/IR3000 | Mfg # 4740393
$1,475.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Bundle Highlights

  • Use the Fluke-789 ProcessMeter with the Fluke Connects smart phone application to log measurements to your smart phone
  • Remotely view changing sourced 4-20 mA signals from the Fluke-789 with the Smart phone App and compare to the control system HMI (Human Machine Interface display)

Fluke 789 Features

  • 24 V loop power supply
  • HART mode setting with loop power (adds 250 ohm resistor)
  • 100% larger dual display
  • 1200 ohm drive capability on mA source
  • Enhanced backlight with two brightness settings
  • Improved battery power with four AA batteries
  • 0-100% mA Span Check buttons to toggle between 4 and 20 mA
  • Infrared I/O serial port compatible with FlukeView Forms
  • V 2.1 Software (available Feb. 2003)
  • 5 V dc measurement capability on the 4 V dc range for precise 1-5 V measurements
  • Externally accessible fuses for easy replacement
  • DMM designed to meet 1000 V IEC 1010 Cat III standards
  • Precision 1000 V, 440 mA digital multimeter
  • Measure ac and dc volts
  • AC and dc voltage accuracy: 0.05 % dc current accuracy, 1 uA resolution to 30 mA
  • Simultaneous mA and % of scale readout
  • True-rms ac voltage measurement
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode Test and Continuity Beeper
  • 20 mA dc current source / loop calibrator / simulator
  • Simultaneous mA and % of scale readout
  • Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes V overload protection on V, ohms, frequency, mA (backed-up by 440 mA 1000 V fuse)
  • Process Meter

Fluke 789 Includes

  • TL71 Premium Test Lead Set
  • AC72 Alligator Clips
  • Four AA alkaline batteries (installed)
  • Users Manual
  • Quick Reference Guide

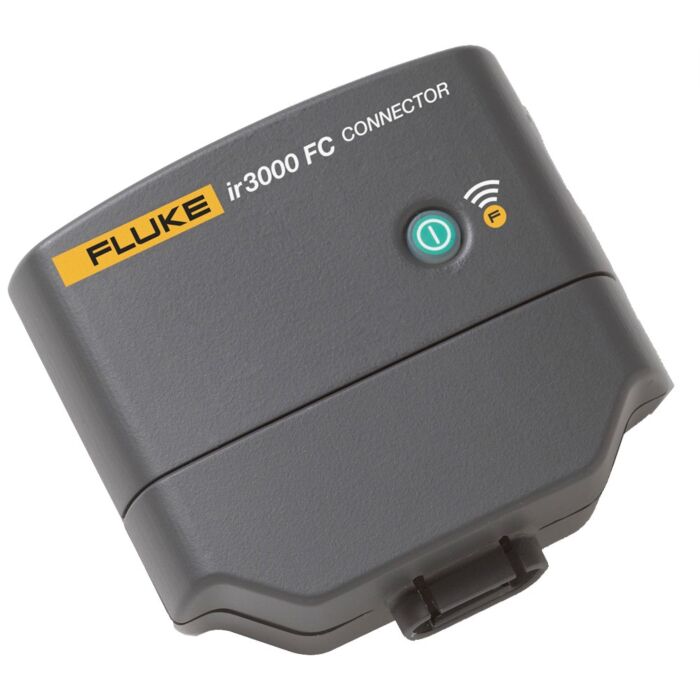

Fluke ir3000FC Features

Connect your Fluke test tool with the ir3000 FC connector and get all the benefits of the Fluke Connectâ„¢ app. Fluke Connect ir3000 FC Connector allows you to wirelessly transfer data from your existing Fluke Tools to your smart phone.

  • Fits over the IR port of your existing Fluke Tools
  • Upgradeable by USB
  • Immediately enables you to graph, save and share the tool's reading with your team from your smart phone

Technical Resources

Fluke 789 ProcessMeter

Specifications
