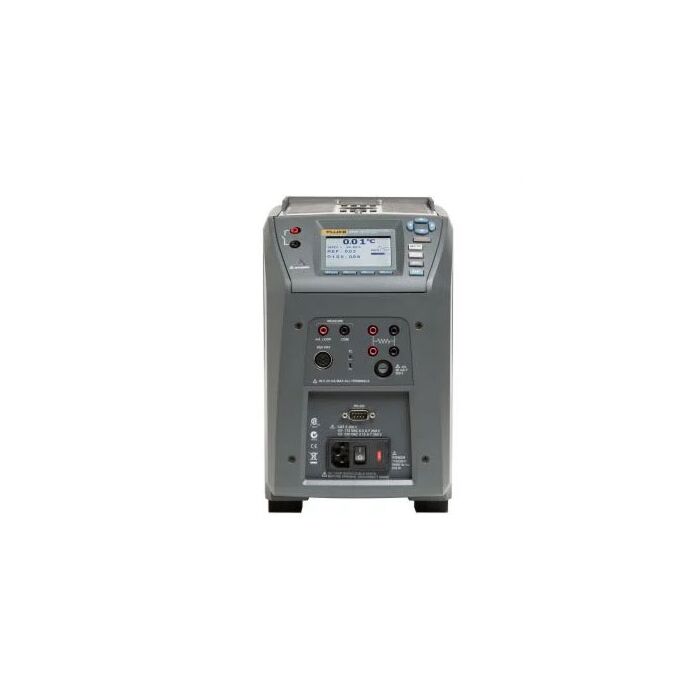

Fluke Calibration 9143-A-156 Mid-Temperature Dry-Well Field Calibrator with 9143-INSA, 115V
Mid-Temperature Dry-Well Field Calibrator with 9143-INSA, 115V

Order #: 9143-A

Mfg #: 3054547

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,648.00

Fluke Calibration 9143-A-156 Mid-Temperature Dry-Well Field Calibrator with 9143-INSA, 115V

Mid-Temperature Dry-Well Field Calibrator with 9143-INSA, 115V

Order #: 9143-A

Mfg #: 3054547

$6,648.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Field Metrology Well, 33 °C to 350 °C, w/9143-INSX
  • Temperature Range at 23 °C: 33 °C to 350 °C (91 °F to 662 °F)
  • Display Accuracy: ± 0.2 °C Full Range
  • Stability: ± 0.02 °C at 33 °C ± 0.02 °C at 200 °C ± 0.03 °C at 350 °C
  • Axial Uniformity at 40 mm (1.6 in): ± 0.04 °C at 33 °C ± 0.1 °C at 200 °C ± 0.2 °C at 350 °C
  • Radial Uniformity: ± 0.01 °C at 33 °C ± 0.015 °C at 200 °C ± 0.02 °C at 350 °C
  • Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes): ± 0.015 °C Full Range
  • Hysteresis: 0.03°C
  • Operating Conditions: 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
  • Environmental Conditions (for all specifications except temperature range): 13 °C to 33 °C
  • Immersion (Well) Depth: 150 mm (5.9 in)
  • Insert OD: 25.3mm (1.00 in)
  • Heating Time: 5 min: 33 °C to 350 °C
  • Cooling Time: 32 min: 350 °C to 33 °C 14 min: 350 °C to 100 °C
  • Resolution: 0.01 °
  • Display: LCD, °C or °F user-selectable
  • Size (H x W x D): 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
  • Weight: 7.3 kg (16 lb)

Each Unit Includes

  • Insert A
  • RS-232 and 9930 Interface-it control software
