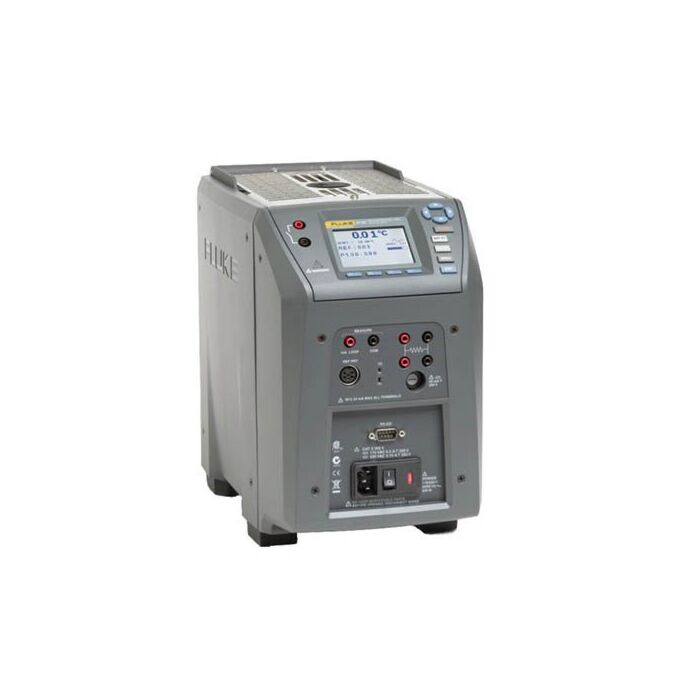

Fluke Calibration 9142-C-P-156 Dry-Well Field Calibrator, 115V with 9142-INSC
Dry-Well Field Calibrator, 115V with 9142-INSC & Built-in Elct

Order #: 9142-C-P

Mfg #: 3054226

Questions about availability or need help? Contact Us:

(800) 633-0561
$10,589.00

Fluke Calibration 9142-C-P-156 Dry-Well Field Calibrator, 115V with 9142-INSC

Dry-Well Field Calibrator, 115V with 9142-INSC & Built-in Elct

Order #: 9142-C-P

Mfg #: 3054226

$10,589.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Field Metrology Well, -25 °C to 150 °C, w/9142-INSX, w/Process Electronics
  • Temperature Range at 23 °C: -25 °C to 150 °C (-13 °F to 302 °F)
  • Display Accuracy: ± 0.2 °C Full Range
  • Stability: ± 0.01 °C Full Range
  • Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C Full Range
  • Radial Uniformity: ± 0.01 °C Full Range
  • Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes): ± 0.006 °C Full Range
  • Hysteresis: 0.025 °C
  • Operating Conditions: 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
  • Environmental Conditions: 13 °C to 33 °C
  • Immersion (Well) Depth: 150 mm (5.9 in)
  • Insert OD: 30 mm (1.18 in)
  • Heating Time: 16 min: 23 °C to 140 °C, 23 min: 23 °C to 150 °C, 25 min: -25 °C to 150 °C
  • Cooling Time: 15 min: 23 °C to -25 °C, 25 min: 150 °C to -23 °C
  • Resolution: 0.01 °
  • Display: LCD, °C or °F user-selectable
  • Size (H x W x D): 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
  • Weight: 8.16 kg (18 lb)
  • Process version provides a built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24 V loop supply to power the transmitter.

Each Unit Includes

  • Insert C
  • RS-232 and 9930 Interface-it control software
  • Test Leads

Webinars

Automating and Documenting Temperature Calibration Webinar with Fluke Calibration

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke Calibration 9142-INSC Insert C for 9142, 0.25Holes - (6)1/4"
    Fluke Calibration 9142-INSC Insert C for 9142, 0.25Holes - (6)1/4"
    Insert C for 9142,0.25Holes- (6)1/4"

    Order #: 9142-INSC

    Mfg #: 3054443

    Availability: Ships in 3-4 weeks
    Special Price $444.88 Regular Price $536.00
  2. Fluke Calibration 9142-INSE Insert E, Metric Miscellaneous Holes including (1) 0.25"Hole
    Fluke Calibration 9142-INSE Insert E, Metric Miscellaneous Holes including (1) 0.25"Hole
    Insert E,Metric Misc.Holes incl (1)0.25"Hole

    Order #: 9142-INSE

    Mfg #: 3054462

    Availability: Ships in 3-4 weeks
    Special Price $444.88 Regular Price $536.00
  3. Fluke Calibration 9142-INSZ
    Fluke Calibration 9142-INSZ Blank Insert Z for 9142 Field Metrology Well
    Blank Insert Z for 9142 Field Metrology Well

    Order #: 9142-INSZ

    Mfg #: 3054496

    Availability: Ships in 1-2 weeks
    Special Price $378.48 Regular Price $456.00
  4. Fluke Calibration 9142-INSD Insert D, Metric Comparison Holes: 3mm;4mm;6mm
    Fluke Calibration 9142-INSD Insert D, Metric Comparison Holes: 3mm;4mm;6mm
    Insert D,Metric Comparison Holes:3mm;4mm;6mm

    Order #: 9142-INSD

    Mfg #: 3054455

    Availability: Ships in 3-4 weeks
    Special Price $444.88 Regular Price $536.00
  5. Fluke 9142-INSA Insert A, Imperial Misc.Holes/ 9142 Series
    Fluke Calibration 9142-INSA Insert A for the 9142, Imperial Miscellaneous Holes: 1/4";3/16";1/8";3/8"
    Insert A for 9142,Imperial Misc Holes:1/4";3/16";1/8";3/8"

    Order #: 9142-INSA

    Mfg #: 3054428

    Availability:
    In stock
    Special Price $444.88 Regular Price $536.00
  6. Fluke Calibration 9142-INSF Insert F, Metric Comparison Misc Holes including (1) 0.25"Hole
    Fluke Calibration 9142-INSF Insert F, Metric Comparison Misc Holes including (1) 0.25"Hole
    Insert F,Metric Comparison Misc Holes incl.(1)0.25"Hole

    Order #: 9142-INSF

    Mfg #: 3054470

    Availability: Ships in 3-4 weeks
    Special Price $444.88 Regular Price $536.00
  7. Fluke Calibration 9142-INSB Insert B, Imperial, Comparison Holes: 1/4";3/8";3/16"
    Fluke Calibration 9142-INSB Insert B, Imperial, Comparison Holes: 1/4";3/8";3/16"
    Insert B,Imperial,Comparison Holes:1/4";3/8";3/16"

    Order #: 9142-INSB

    Mfg #: 3054437

    Availability: Ships in 3-4 weeks
    Special Price $444.88 Regular Price $536.00
All products in this series
