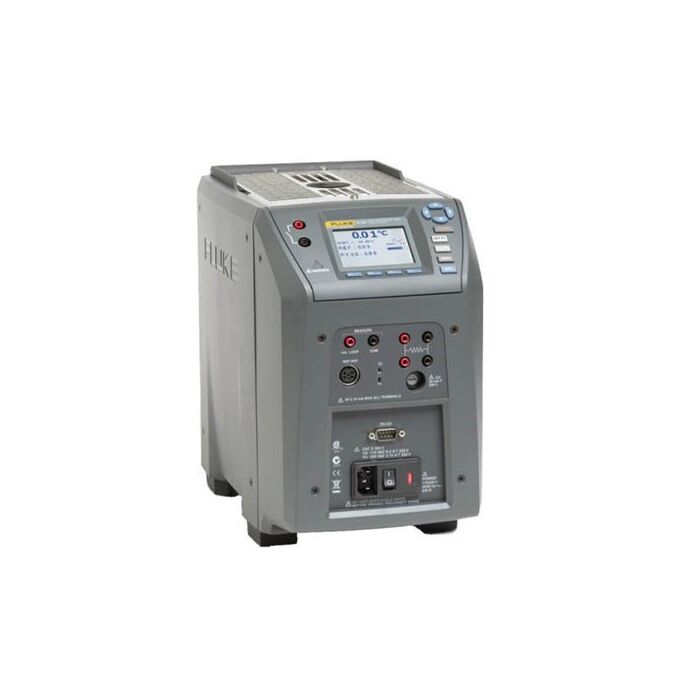

Fluke Calibration 9142-A-P-156
Dry-Well Field Calibrator, 115V with 9142-INSA & Built-in Elct

Order #: 9142-A-P

Mfg #: 3054148

Questions about availability or need help? Contact Us:

(800) 633-0561
$10,536.00

Fluke Calibration 9142-A-P-156

Dry-Well Field Calibrator, 115V with 9142-INSA & Built-in Elct

Order #: 9142-A-P

Mfg #: 3054148

$10,536.00
Availability: Ships in 4-6 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Field Metrology Well, -25 °C to 150 °C, w/9142-INSX, w/Process Electronics
  • Temperature Range at 23 °C: -25 °C to 150 °C (-13 °F to 302 °F)
  • Display Accuracy: ± 0.2 °C Full Range
  • Stability: ± 0.01 °C Full Range
  • Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C Full Range
  • Radial Uniformity: ± 0.01 °C Full Range
  • Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes): ± 0.006 °C Full Range
  • Hysteresis: 0.025 °C
  • Operating Conditions: 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
  • Environmental Conditions: 13 °C to 33 °C
  • Immersion (Well) Depth: 150 mm (5.9 in)
  • Insert OD: 30 mm (1.18 in)
  • Heating Time: 16 min: 23 °C to 140 °C, 23 min: 23 °C to 150 °C, 25 min: -25 °C to 150 °C
  • Cooling Time: 15 min: 23 °C to -25 °C, 25 min: 150 °C to -23 °C
  • Resolution: 0.01 °
  • Display: LCD, °C or °F user-selectable
  • Size (H x W x D): 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
  • Weight: 8.16 kg (18 lb)
  • Process version provides a built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24 V loop supply to power the transmitter.

Each Unit Includes

  • Insert A
  • RS-232 and 9930 Interface-it control software
  • Test Leads
