Fluke 381 VIP Kit - Remote Display True-rms AC/DC Clamp Meter with iFlex and FREE TOOLS

Order # 381-VIP | Mfg # 5065875

FREE TOOLS!

Save 11%

$874.99

$778.74

In stock

Ships Free Over $100

SAVE OVER $68! FREE Tools include:

UGLY's Electrical Reference Book

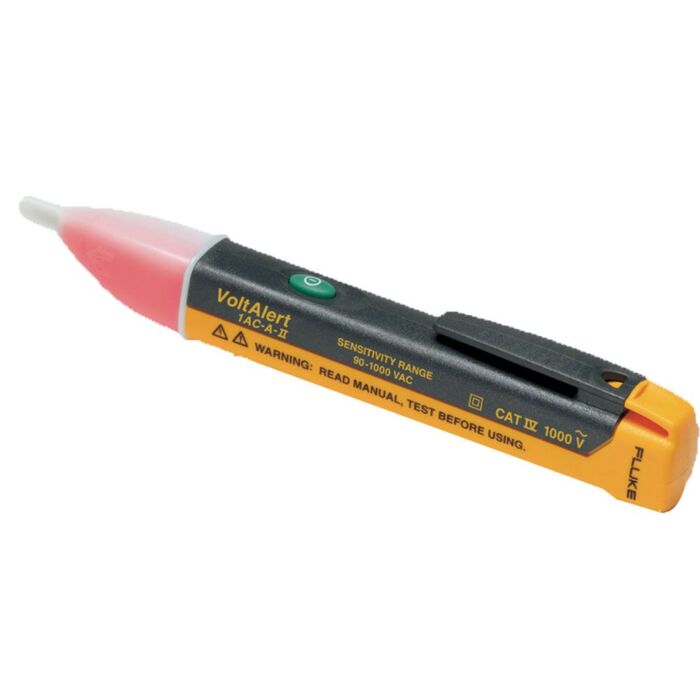

Fluke 1AC-A1-II Voltage Detector

Also Available:

Buy Used

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

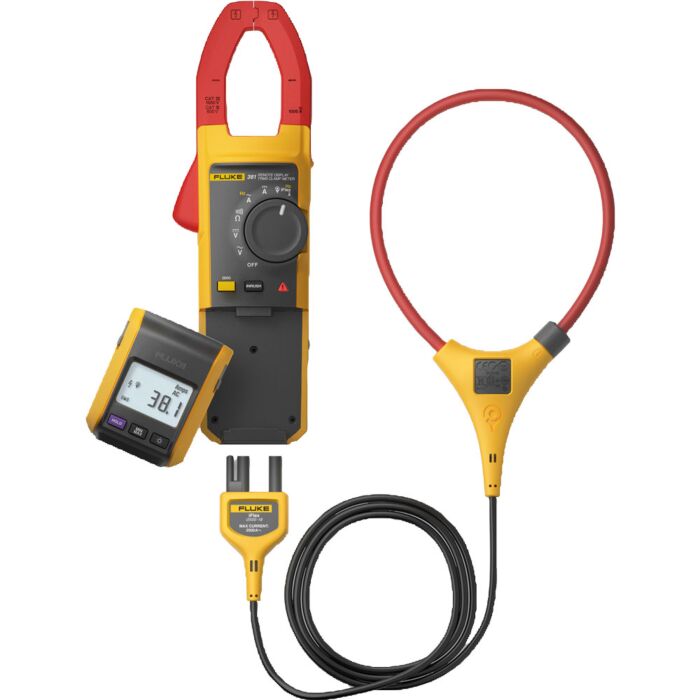

Fluke 381 Overview

What Once Took Two People, Now Takes One

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.

The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.

Free Tools Include:

UGLY's Electrical Reference Book
Fluke 1AC-A1-II Voltage Detector

Fluke 381 Highlights

Save over $50 with the Fluke 381 VIP Kit.
- Limited Time Offer.
- FREE Ugly's Electrical References Book
- FREE AC Voltage Detector

See the 381 VIP Kit now!

The first clamp meter with a detachable, remote display for easier, faster, safer measurements
1000 A ac and dc current measurement with fixed Jaw
2500 A ac current measurement with iFlex flexible current probe
1000 V ac and dc voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
Frequency measurement to 500 Hz with both Jaw and iFlex
60 kΩ resistance measurement to with continuity detection
Min, max, average and inrush recording to capture variations automatically
Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy
iFlex flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
CAT IV 600V, CAT III 1000 V safety rating
Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings

Each Fluke 381 Includes

18-inch iFlex™ flexible current probe
Coated instruction card
Safety information sheet
Soft carrying case
TL75 test leads
Five AA Alkaline batteries

Technical Resources

Application - Electronics in your building don't like power problems
Application - Who Sets the Rules for Electrical Testing and Safety
Application - Clamp Meter ABCs
Brochure - Fluke Clamp Meter Selection Guide
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - User's Manual
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - User's Manual Supplement
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - Calibration Manual
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - Calibration Manual Supplement
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - Quick Reference Guide
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - Statement of Memory Volatility
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - TUV SUD Certificate of Conformity
Fluke i2500-10 / i2500-18 Flexible Current Probe - Quick Reference Card
Application - Inrush Current
Application - Proper use of Clamp Meters in Commercial and Residential Settings
Application - Real-World Challenge: The Air Handler and NFPA 70B
Application - Troubleshooting Photovoltaic Systems: Three Typical Problems
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® - Technical Data
Fluke 373 / 374 / 375 / 376 / 381 Clamp Meter - Quick Reference Guide
Brochure - Clamp Meter Family

Specifications

AC Current via Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits (10-100 Hz)
	5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz)	3 @ 500 A
	2.5 @ 600 A
	1.42 @ 1000 A
	Add 2% for C.F. > 2
AC Current via Flexible Current Probe
Range	999.9 A / 2500 A (45 Hz – 500 Hz)
Resolution	0.1 A / 1 A
Accuracy	3% ± 5 digits
Crest Factor (50/60 Hz)	3.0 at 1100 A
	2.5 at 1400 A
	1.42 at 2500 A
	Add 2% for C.F. > 2
Distance from Optimum
	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5%
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0%
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits
AC Voltage
Range	600 V /1000 V
Resolution	0.1 V / 1 V
Accuracy	1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range	600.0 V /1000 V
Resolution	0.1 V / 1 V
Accuracy	1% ± 5 digits
Frequency – Via Jaw
Range	5.0 – 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 – 10 Hz, ≥ 10 A
	10 – 100 Hz, ≥ 5 A
	100 – 500 Hz, ≥ 10 A
Frequency via Flexible Current Probe
Range	5.0 to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 to 20 Hz, ≥ 25 A
	20 to 100 Hz, ≥ 20 A
	100 to 500 Hz, ≥ 25 A
Resistance
Range	600 Ω/6 kΩ/60 kΩ
Resolution	0.1 Ω/1 Ω/10 Ω
Accuracy	1% ± 5 digits
Mechanical Specifications
Size (L x W x H)	277 x 88 x 43 mm (55 mm for remote unit)
Weight	350 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length	1.8 m
(head to electronics connector)
Environmental Specifications
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +60°C
Operating Humidity	Non condensing (< 10°C)
	≤ 90% RH (at 10°C to 30°C)
	≤ 75% RH (at 30°C to 40°C)
	≤ 45% RH (at 40°C to 50°C)
	(Without Condensation)
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006
	ETSI EN 300 328 V1.7.1:2006
	ETSI EN 300 489 V1.8.1:2008
	FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
	FCCID: T68-F381
	RSS-210 IC: 6627A-F381
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Wireless Frequency	2.4 GHz ISM Band 10 meter range
Safety Compliance	ANSI/ISA S82.02.01:2004
	CAN/CSA-C22.2 No. 61010-1-04
	IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV.
Double Insulation Clearance	Per IEC 61010-2-032
Double Insulation Creepage	Per IEC 61010-1

Visit our Fluke Clamp Meter Selection Guide
