| Environmental Specifications |
| Operating Temperature |
-10º C to 50º C |
| Storage Temperature |
-20º C to 50º C |
| Operating Humidity |
- 95% (10º C to 35º C) Non-Condensing
- 75% (35º C to 40º C) Non-Condensing
- Uncontrolled <10º C
|
| EMI, RFI, EMC |
Standards compliant1 |
|
1 Conforms to relevant European Union directives; Conforms to relevant Australian standards; Listed by the Canadian Standards Association; Complies with 21CFR.1040.10,11, and EN60825-1, 2:2007 (Class 1, Hazard Level 1)

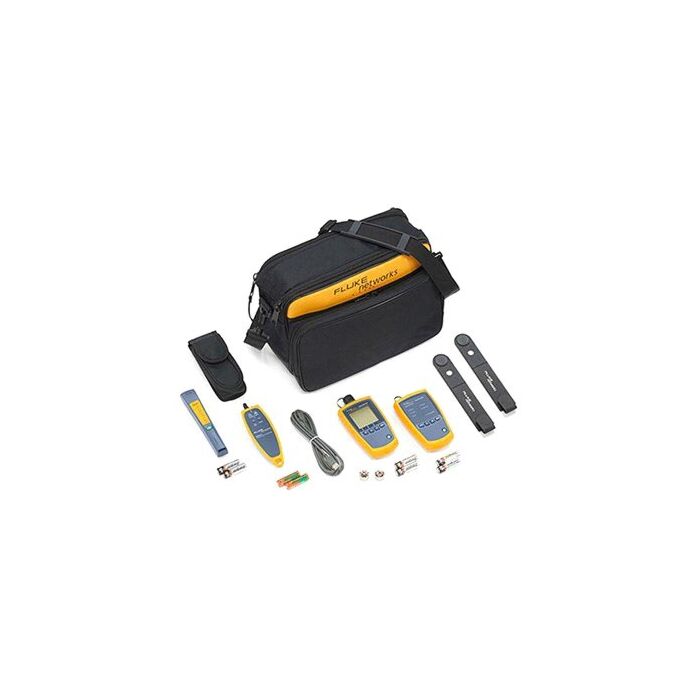

| Optical Power Meter |
| Detector Type |
InGaAs |
| Calibrated Wavelengths |
850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm |
| Measurement Range |
- +10 to -52 dBm (850 nm)
- +10 to -60 dBm (1300, 1310, 1490, 1550, 1625 nm)
|
| Power Measurement Linearity |
- ±0.2 dB (850 nm)1
- ±0.1 dB (1300, 1310, 1490, 1550, 1625 nm)2
|
| Power Measurement Uncertainty3 |
±0.25 dB |
| Display Resolution, dB or dBm |
0.01 dB |
| Auto Dual-Wavelength Switching |
Yes |
| Power Display Units |
dBm, mW, μW |
| Auto-Wavelength Detection |
Yes |
| Data Storage |
1000 records, multiple wavelengths per record |
| External Interface |
USB, 2.0 full speed |
| Optical Connector |
Removable adapter, SC adapter as default, optional adapters include LC, ST |
| Display update rate |
1 reading per second |
| Reference |
Individually set for each wavelength |
| FindFiber ID detection |
Yes |
| Power Requirement |
2 AA Alkaline batteries |
| Battery Life4 |
> 50 Hours (typical) |
| Automatic Power Off |
10, 20, 30 or 60 minutes (can be disabled by user) |
| Low Battery Warning |
Yes, low battery icon blinks |
| Size (L x W x H) |
6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0.cm x 3.9 cm) |
| Weight |
11.5 oz (325 grams) |
|
1 For 850nm, ±0.2 dB for power from 0 to -45 dBm, ±0.25 dB for power < -45 dBm
2 ±0.1dB for power from 0 to -55 dBm, ±0.2 dB for power > 0 dBm and < -55 dBm
3 23°C ±2°C, power level -20dBm, continuous wave, 62.5/125µm at multi mode wavelengths, 9/125 µm at 1310,1490, 1550 and 1625 nm; add 0.1 dB for 1625 nm,
4 For measured power levels 0 dBm or less, battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries.
| Multimode Optical Source |
| Emitter Type |
LED |
| Central Wavelength |
850 nm, 1300 nm |
| Wavelength Accuracy |
- 850 nm: +/-30 nm
- 1300 nm: +/- 20 nm
|
| Spectral Width (FWHM) |
- 850 nm: 50 nm (typical)
- 1300 nm: 135 nm (typical)
|
| Minimum Output Power |
850/1300 nm: ³ -20 dBm |
| Power Output Stability1 |
±0.1 dB over 8 hours |
| Auto Dual-Wavelength Switching |
Yes. Can be enabled/disabled by user. |
| Optical Output Connector |
Fixed SC |
| FindFiber Code Generation |
Yes. Fixed at ID 1. |
| Modes |
CW, 2 kHz modulated, Auto-wavelength |
| Power Requirement |
2 AA Alkaline batteries. |
| Battery Life2 |
40 hrs (typical) |
| Automatic Power Off |
30 minutes (can be disabled by user) |
| Low Battery Warning |
Yes, LED blinks |
| Size (L x W x H) |
5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm) |
| Weight |
1.8 oz (278 g) |
|
1 23° C ± 2° C, after 5 minutes warm-up time
2 In auto-wavelength mode, battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries.
| Singlemode Optical Source |
| Emitter Type |
1310 nm/1550 nm: dual FP laser
1490 nm/1625 nm: dual DFB laser |
| Central wavelength |
- 1310 nm: ±20 nm
- 1550 nm: ±30 nm
- 1490 nm: ±3 nm
- 1625 nm: ±5 nm
|
| Wavelength Accuracy |
- 1310 nm: +/- 20 nm
- 1550 nm: +/- 30 nm
|
| Spectral width (RMS) |
- 1310 nm: 2 nm (maximum)
- 1550 nm: 3 nm (maximum)
- 1490 nm/1625 nm: 1 nm (maximum)
|
| Minimum output power |
1310/1550 nm ≥ -7dBm (typical)
1490 nm/1625 nm: ≥ -3 dBm (typical) |
| Power Output Stability1 |
±0.25 dB over 8 hours |
| Auto Dual-Wavelength Switching |
Yes. Can be enabled or disabled by user. |
| Optical Connector |
Fixed SC |
| Launch Condition |
9/125 μm fiber |
| FindFiber Code Generation |
1310/1550 source is fixed at ID 2
1490 nm/1625 nm is fixed at ID 3. |
| Modes |
CW, 2 kHz modulated, Auto-wavelength |
| Power Requirement |
2 AA Alkaline batteries |
| Battery Life2 |
30 hrs (typical) |
| Automatic Power Off |
30 minutes (can be enabled or disabled by user) |
| Low Battery Warning |
LED blinks. |
| Size (L x W x H) |
5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm) |
| Weight |
9.8 oz (278 grams) |
|
1 23° C ± 2° C, after 5 minutes warm-up time
2 In auto-wavelength mode, battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries.
| FindFiber Source Specifications |
| Emitter Type |
Laser |
| Source Connector |
Fixed SC |
| FindFiber Code Generation |
1 through 8. Default is 3. |
| Power On/Low-battery Indicator |
LED |
| Power Requirement |
2 AA Alkaline batteries |
| Battery Life |
> 80 Hours (typical) |
| Automatic Power Off |
30 minutes |
| Low Battery Warning |
LED blinks |
| Size (L x W x H) |
7.1 in x 1.3 in x 1.0 in (17.9 cm x 3.2 cm x 2.5 cm) |
| Weight |
4.4 oz (125 g) |
| Safety |
Meets Class 1 CDRH |
