Order #: FI2-7000
Mfg #: 4955978
Fluke Networks FI-7000-W FiberInspector Pro 2 Fiber Optic Inspection Scope with Wi-Fi
Order #: FI2-7000
Mfg #: 4955978
Product Highlights
Fiber optic connector end-face contamination is a leading cause of fiber failures. Dirt and contaminant cause insertion loss and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time consuming and inaccurate.
Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one fiber optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated fiber optic connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep fiber optic connector end-faces clean. Avoiding this common cause of failure, starts with inspecting the fiber optic connector end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment.
The FI-7000 FiberInspector Pro is a fiber optic inspection scope that allows you to inspect and certify fiber optic connector end-faces in 1 seconds so you can get the job done the first time. This fiber optic inspection scope provides automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.
- Automated Pass/Fail certification of fiber optic connector end-faces
- Graphical indication of problem areas due to contamination, pits, chips, and scratches
- Certify to industry standards - IEC 61300-3-35
- Eliminate human subjectivity from fiber optic connector end-face measurements
- Save fiber optic connector end-face views during certification process
- Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
Each Unit Includes

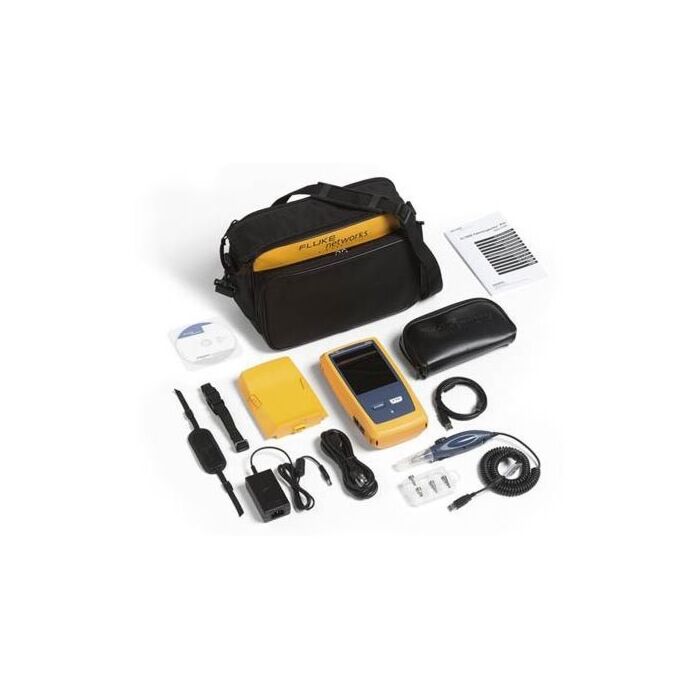

- The FI-7000 FiberInspector Pro contains: Versiv Mainframe, USB Fiber Inspection Video Probe with 4 tips in a box (LC, FC/SC bulkhead, 1.25 and 2.5mm universal), Blank Module to protect the mainframe™s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Versiv Open Source Software CD, Wi-Fi adapter, Getting Started Guide, Soft Carrying Case
Specifications
Technical Specifications
Inspection Probe specifications | |
2M pixels | Blue LED |
Light source | Blue LED |
Power source | Versiv mainframe |
Field of View (FOV) | Horizontal: 425 µm |
Vertical: 320 µm | |
Minimum detectable particle size | 0.5 µm |
Dimensions | Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip |
Weight | 200 g |
Temperature range | Operating: 32°F to 122°F (0 °C to +50 °C) |
Storage: -4°F to +158°F (-20°C to +70°C) | |
Certifications | CE |
General specifications | |
Weight | Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg) |
Dimensions | Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm) |
Battery | Lithium ion battery pack, 7.2 volts |
Battery life | Eleven hour with Inspection probe attached |
Charge Time | |
Tester Off | Four hours to charge from 10% to 90% capacity |
Tester On | Six hours to charge from 10% to 90% capacity with the tester on |
Environmental specifications | |
Operating temperature* | -18ºC to 45ºC |
Non-operating temperature | -30ºC to 60ºC |
Operating altitude | 4,000 m (13123 ft) |
3200 m (10,500 ft) with ac adapter | |
Storage altitude | 12,000 m |
EMC | EN 61326-1 |
* Do not keep battery at temperatures below -20°C (-4°F) or above 50°C (122°F) for periods longer than one week to maintain battery capacity. |
