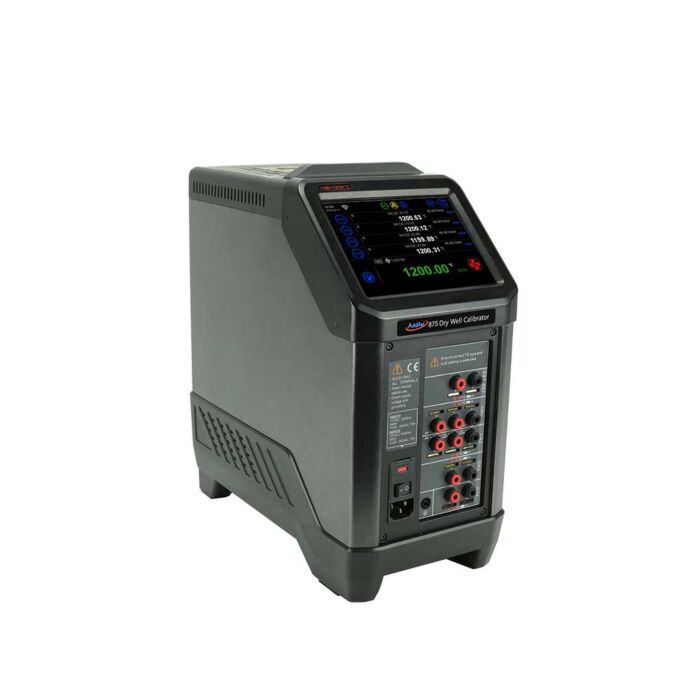

Additel ADT875PC-1210-FS-110V

Thermocouple Calibr. Furnace 100C-1210C,Ins FS,w/Process Cal

Order #: ADT875PC-1210-FS-110V

Mfg #: ADT875PC-1210-FS-110V

Questions about availability or need help? Contact Us:

(800) 633-0561
$11,795.00

Additel ADT875PC-1210-FS-110V

Thermocouple Calibr. Furnace 100C-1210C,Ins FS,w/Process Cal

Order #: ADT875PC-1210-FS-110V

Mfg #: ADT875PC-1210-FS-110V

$11,795.00
Availability: Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Thermocouple Calibration Furnace, 100°C to 1210°C, Insert FS, 110V, with Process Calibrator Option

  • Temperature control from 100°C to 1210°C
  • Two models to choose from: Reference (ADT878) and Standard (ADT875)
  • Display Accuracy of ±1.5°C (ADT878)
  • 4 on-board measurement channels (PC option)
  • Process calibrator option provides a multi-channel readout for TCs, switches and transmitters, including task documentation and HART communication
  • Portable, rugged and quick to temperature
  • Self-calibration feature (PC option)
  • Multi-zone temperature control
  • Internal and external sensor control (PC option)
  • Metallic interchangeable inserts
  • Wi-Fi and Bluetooth capable
  • Color touch screen display
  • ISO 17025-accredited calibration w/data included
  • Patent pending technology

We understand the many challenges associated with thermocouple calibration work. That is precisely why we decided to introduce the ADT875-1210 and ADT878-1210 Thermocouple Calibration Furnaces.

With an unmatched stability, uniformity and an optional on-board process calibrator, calibrating thermocouples has never been easier. With two separate units to choose from, the ADT875-1210 and ADT878-1210 furnaces include a patented multi-zone temperature control which provides a never before seen, highly stable and uniform heat source to ensure you get the best possible results from a modest investment. With metallic interchangeable inserts, users have the flexibility needed to service a wide variety of UUT

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

  1. Additel 9080
    Additel 9080
    Cold Junction Kit (incl TC Plug, Cable, S,R,B,K,J,T,E,N)

    Order #: 9080ADT

    Mfg #: 9080

    Availability: Ships in 2-3 weeks
    $158.00
  2. Additel ADT110-875-TC-INSERT-AR Insert AR for ADT875-1210 Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-AR
    Insert AR for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-AR

    Mfg #: ADT110-875-TC-INSERT-AR

    Availability: Ships in 2-3 weeks
    $950.00
  3. Additel ADT110-875-TC-INSERT-BS Insert BS for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-BS
    Insert BS for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-BS

    Mfg #: ADT110-875-TC-INSERT-BS

    Availability: Ships in 2-3 weeks
    $950.00
  4. Additel ADT110-875-TC-INSERT-CS Insert CS for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-CS
    Insert CS for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-CS

    Mfg #: ADT110-875-TC-INSERT-CS

    Availability: Ships in 2-3 weeks
    $950.00
  5. Additel ADT110-875-TC-INSERT-DR Insert DR for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-DR
    Insert DR for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-DR

    Mfg #: ADT110-875-TC-INSERT-DR

    Availability: Ships in 2-3 weeks
    $950.00
  6. Additel ADT110-875-TC-INSERT-ES Insert ES for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-ES
    Insert ES for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-ES

    Mfg #: ADT110-875-TC-INSERT-ES

    Availability: Ships in 2-3 weeks
    $950.00
  7. Additel ADT110-875-TC-INSERT-FS Insert FS for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-FS
    Insert FS for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-FS

    Mfg #: ADT110-875-TC-INSERT-FS

    Availability: Ships in 2-3 weeks
    $950.00
  8. Additel ADT110-875-TC-INSERT-GS Insert GS for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-GS
    Insert GS for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-GS

    Mfg #: ADT110-875-TC-INSERT-GS

    Availability: Ships in 2-3 weeks
    $950.00
  9. Additel ADT110-875-TC-INSERT-HR Insert HR for ADT875-1210 Thermocouple Ref Calibr Furn
    Additel ADT110-875-TC-INSERT-HR
    Insert HR for ADT875-1210 Thermocouple Ref.Calibr.Furn.

    Order #: ADT110-875-TC-INSERT-HR

    Mfg #: ADT110-875-TC-INSERT-HR

    Availability: Ships in 2-3 weeks
    $950.00
  10. Additel 9915-875 Carry Case for ADT875-1210 or ADT878-1210 with wheels
    Additel 9915-875
    Carrying Case for ADT875-1210 or ADT878-1210 with Wheels

    Order #: 9915-875

    Mfg #: 9915-875

    Availability: Ships in 2-3 weeks
    $613.00
  11. Additel AM1210-12 Reference Type S Thermocouple, 0C - 1300C, 6 mm dia x 300 mm
    Additel AM1210-12
    Reference Type S Thermocouple 0C - 1300C, 6mm dia x 300mm

    Order #: AM1210-12

    Mfg #: AM1210-12

    Availability: Ships in 3-4 weeks
    $3,980.00
General Specifications
875-1210 878-1210
Temperature Range 100°C to 1210°C
Display Accuracy ±1.2°C @ 100°C ±1.0°C @ 100°C
±1.2°C @ 300°C ±1.0°C @ 300°C
±1.2°C @ 600°C ±1.0°C @ 600°C
±1.6°C @ 900°C ±1.2°C @ 900°C
±2.0°C @ 1210°C ±1.5°C @ 1210°C
Stability ±0.1°C
Axial Uniformity (20mm zone) ±0.6°C @ 100°C ±0.4°C @ 100°C
±0.9°C @ 300°C ±0.6°C @ 300°C
±1.2°C @ 600°C ±0.8°C @ 600°C
±1.5°C @ 900°C ±1°C @ 900°C
±1.5°C @ 1210°C ±1°C @ 1210°C
Radial Uniformity ±0.2°C @ 100°C ±0.2°C @ 100°C
±0.3°C @ 300°C ±0.3°C @ 300°C
±0.4°C @ 600°C ±0.4°C @ 600°C
±0.8°C @ 900°C ±0.6C @ 900°C
±1°C @ 1210°C ±0.8°C @ 1210°C
Loading Effect ±0.5°C
Environmental Conditions 8°C to 38°C guaranteed accuracy
0°C to 50°C, 0% to 90% RH non-condensing,
3000 M altitude for normal operation
Storage Conditions -20°C to 60°C
Immersion Depth XR style inserts = 138 mm (5.43")
XS style inserts = 116 mm (4.57")
(see insert ordering info for more details)
Insert Size - OD 24.8 mm (0.98 inches)
Heating Time 50 min: 23°C to 1210°C
Cooling Time 50 mins:1210°C to 300°C 50 mins: 300°C to 50°C 55 mins:1210°C to 300°C 55 mins: 300°C to 50°C
Typical Time to Stability 15 min
Resolution 0.01°C
Units °C, °F, and K
Display 6.5 in (165 mm) color touch screen
Size (H x W x D) 345 x 170 x 330 mm (13.6 x 6.7 x 13.0 in)
Weight 10.6 kg (23.4 lbs)
Power Requirements 115 V AC (±10%) or 230 V AC (±10%), switchable, 45-65 Hz, 580 W
Mechanical Testing Vibration: 2 g (10-500 Hz), 30 min for 2 sides
Impact: 4 g three times
Drop test: 500 mm (19.6 in)
Communication USB A, USB B, RJ45, WiFi, Bluetooth
Localization English, Chinese, Japanese, Russian, German
Warranty 1 year
Input Specifications (Process Calibrator [PC] Option)
875-1210 878-1210
TC Measurement Channels Patented TC terminals:
Accepting S, R, K, B, N, E, J, T, L, and U
TC Measurement Accuracy Type K Ch. 1-4 (excluding sensor) ±0.182°C @ 100°C ±0.172°C @ 100°C
±0.266°C @ 300°C ±0.236°C @ 300°C
±0.310°C @ 600°C ±0.251°C @ 600°C
±0.397°C @ 900°C ±0.304°C @ 900°C
±0.517°C @1210°C ±0.382°C @ 1210°C
TC Range €"75 mV to 75 mV (UUT Channels 1-4)
€"18 mV to 18 mV (Reference Channel)
TC Resolution 0.0001 mV, Input Impedance < 10Î
