Product Overview

Product Highlights

100 Ohm Secondary PRT, -200 to 420°C, 1/4", 90° Bend at 9.75" from tip, with Lemo smart connector, 2 m cable length, including accredited calibration.

Affordable Reference Probe
Accuracy: <0.012°C at 0.01°C
Short-term Stability: <0.007°C
Temperature Range: -200°C to 420°C
Sheath Diameters Available in 2 Configurations: 1/4 inch and 3/16 inch
Inconel™ Sheath to Withstand Harsh Environments
Fully Meets the ITS-90 Criteria for Reference Thermometers

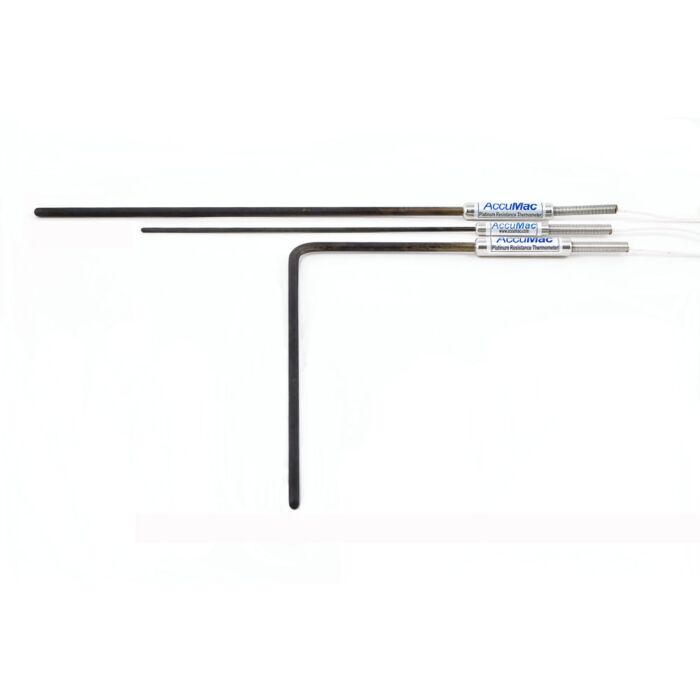

The AM1730 series of Secondary Reference PRTs offers affordable reference probes for precision temperature measurement and calibration both in the lab and in the field. These PRTs feature an accuracy of <0.012°C and a short term stability of <0.007°C. To reach the best performance in stability and repeatability, the sensing element has been specially designed to protect the platinum sensing wire from contamination at high temperatures. A unique supporting structure and filling material provide the best balance among the hysteresis effect, mechanical shock and thermal shock performance. This high performance probe fully meets the ITS-90 criteria for reference thermometers. Each probe comes standard with an NIST-traceable certificate of calibration.

Used With

Specifications

	AM1730-12	AM1730-9	AM1730-BEND
Temperature Range	-200°C to 420°C	-200°C to 420°C	-200°C to 420°C
Nominal Resistance at 0.01°C	100 Ω
Temperature Coefficient	0.003925 Ω/Ω/°C
Accuracy	<0.012°C at 0.01°C
Long Term Drift at 0.01°C	<0.01°C at TPW after 100 hours at max temperature
Short Term Stability	<0.007°C
Thermal Shock	<0.005°C after 10 thermal cycles from minimum to maximum temperatures
Hysteresis	≤0.005°C
Self-heating	50 mW/°C
Response Time	9 seconds	6 seconds	9 seconds
Measurement Current	0.5 mA or 1 mA
Sensor Length	1.26 in (32 mm)
Sensor Location	0.12 in (3 mm) from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Inconel™
Sheath Dimensions	0.25 in (6.35 mm) (OD) x 12 in (305 mm) (L)	0.188 in (4.775 mm) (OD) x 9 in (228.6 mm) (L)	0.25 in (6.35 mm) (OD) x 9.75 in (247.65 mm) vertical x 4.5 in (114.3 mm) horizontal
External Leads	Teflon™ insulated copper wire, 4 leads, 6.5 feet (2 meters)
Handle Dimension	0.59 in (15 mm) (OD) x 2.56 in (65 mm) (L)	0.39 in (10 mm) (OD) x 1.97 in (50 mm) (L)	0.59 in (15 mm) (OD) x 2.56 in (65 mm) (L)
Handle Temperature Range	-50°C to 180°C
Calibration	NIST-traceable calibration with data
