Order #: ADT878
Mfg #: ADT878

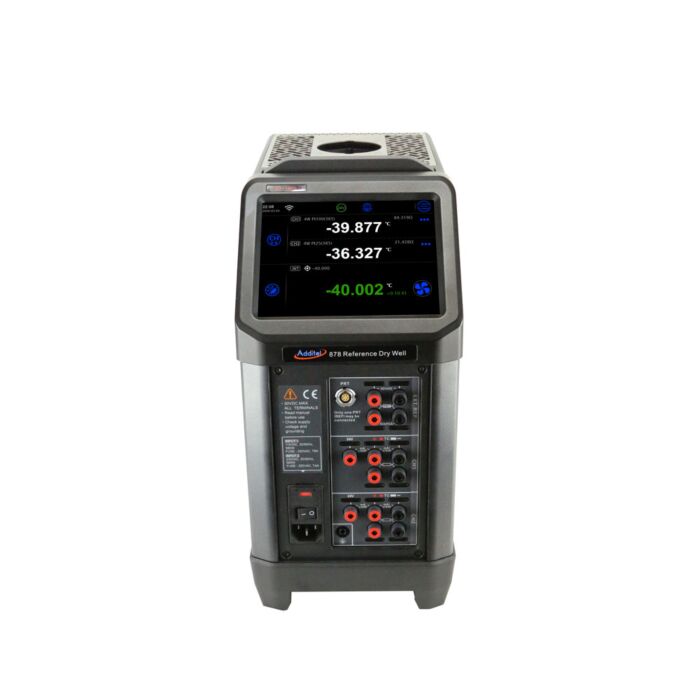

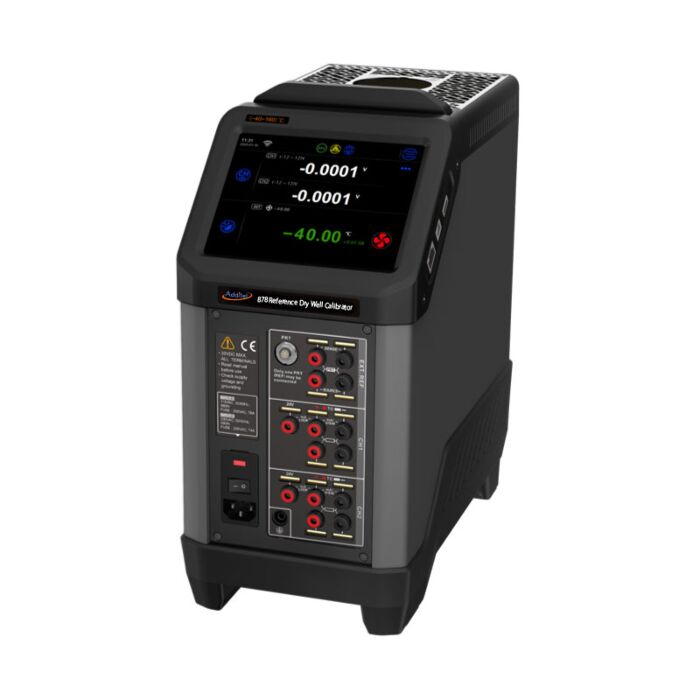

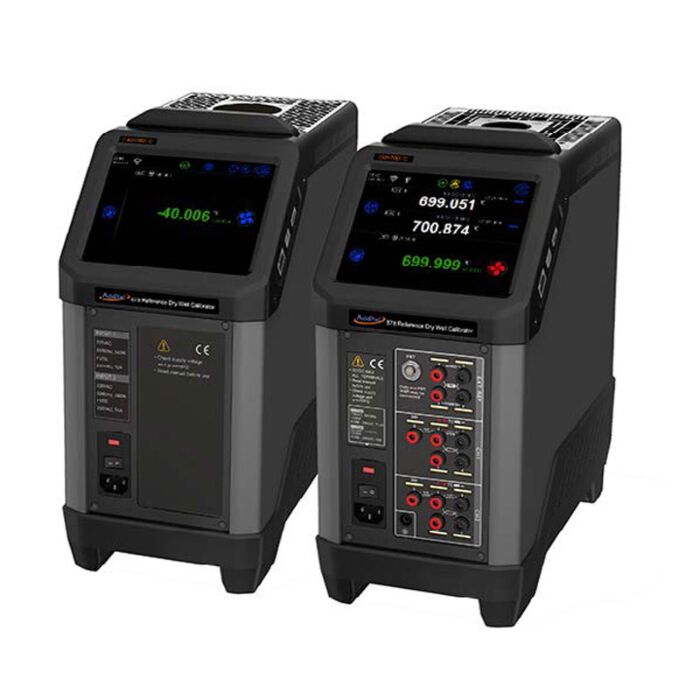

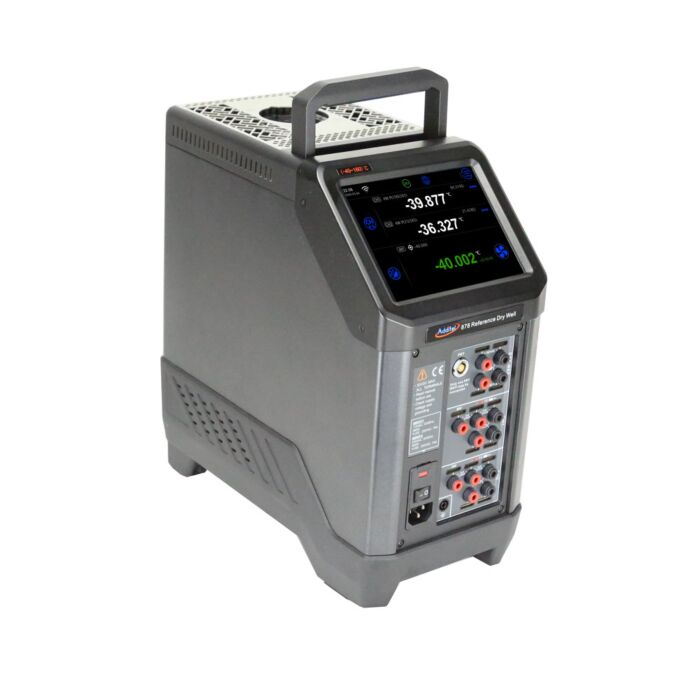

Additel ADT878
Order #: ADT878
Mfg #: ADT878
Currently a configured instrument on this page is sold at list price. Add to quote to receive your Transcat customer pricing.
Only need this item for a short time? Learn about rentals
Product Highlights
- Temperature ranges:
- 160: -40 to 320°F
- 425: 91.4 to 797°F
- 700: 91.4 to 1292°F
- Accuracy:
- ±0.1°C at full range
- ±0.2°C at Full Range
- ±0.20°C at 33°C/425°C and ±0.25°C at 660°C
- Full HART communicator
- Wi-Fi and Bluetooth capable
- Color touch screen display
- Quick-Push connectors (PC Option)

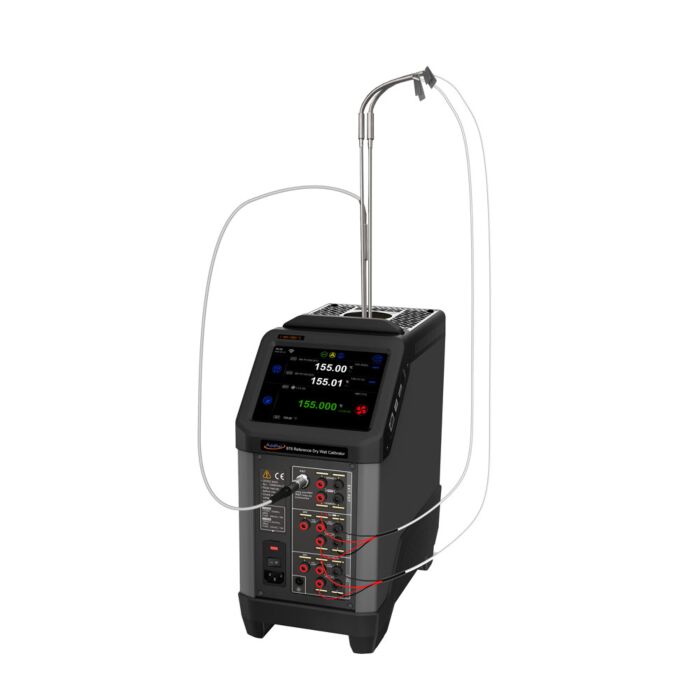

- Set point control by reference
- Self calibration
- Built-in automatic annealing (ADT878-700 only)
- Reference level performance in accuracy, stability and uniformity
- Quick to temperature

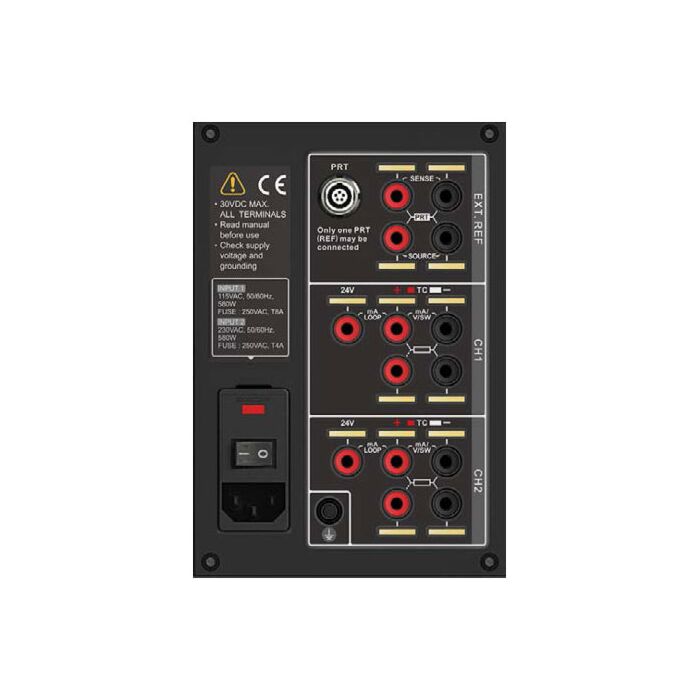

- Two-channel readout measures RTDs and TCs, and provides task documentation
- Optional external temperature control

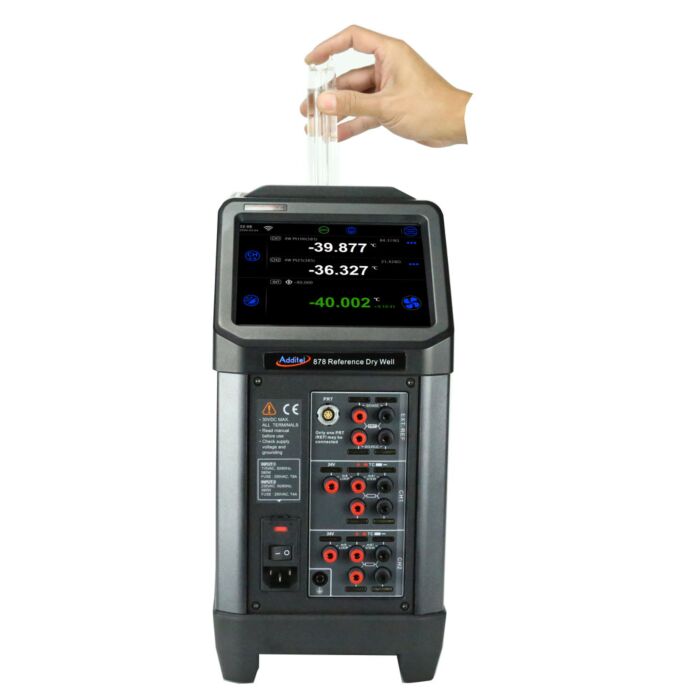

- Optional TPW kit for built-in automatic realization (ADT878-160 only)
We are taking temperature calibration to the next level with the Additel 878 Reference Dry Well Calibrators. If you are looking for the best dry well on the market, then look no further! Additel's commitment to continuous improvement, quality and time saving features are on full display in the ADT878 series. With three models to choose from, ranging from -40 to 700°C, you will find the perfect fit for your calibration needs. The Process Calibrator option adds an external reference input, a two-channel readout for UUT's and a full complement of capabilities to help with everything from measuring temperature sensors, to calibrating thermocouples, self-calibrating the Reference Well and configuring HART transmitters. Each unit comes standard with a large touchscreen display, dual-zone control and Additel's commitment to the best customer service in the industry. We are certain that you will be blown away by the outstanding performance of these game-changing Reference Dry Wells!
Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO
- Additel AM1710-12-ADTSecondary PRT -45 to 160C 1/4"X12", 100 Omega
Order #: AM1710-12-ADT
Mfg #: AM1710-12-ADT
Availability: Ships in 2-3 weeks$895.00 - Additel AM1710-12-ADT-17025100Ohm Secondary PRT, -40 to 160degC, 1/4"X12", w/connector
Order #: AM1710-12-ADT-17025
Mfg #: AM1710-12-ADT-17025
Availability: Ships in 2-3 weeks$1,175.00 - Additel AM1710-BEND-ADT100ohmSecondary PRT,-45 to 160C 1/4",90Deg.Bend @ 7.5"Tip
Order #: AM1710-BEND-ADT
Mfg #: AM1710-BEND-ADT
Availability: Ships in 2-3 weeksSpecial Price $901.00 Regular Price $995.00 - Additel AM1710-BEND-ADT-17025100Ohm Secondary PRT, -40 to 160C, 1/4", 90deg Bend at 7.5ô
Order #: AM1710-BEND-ADT-17025
Mfg #: AM1710-BEND-ADT-17025
Availability: Ships in 2-3 weeks$1,392.00 - Additel AM1730-12-ADTSecondary PRT, -45 to 420C 1/4"X12", 100 Omega
Order #: AM1730-12-ADT
Mfg #: AM1730-12-ADT
Availability: Ships in 2-3 weeks$1,295.00 - Additel AM1730-12-ADT-17025100Ohm Secondary PRT, -200 to 420degC, 1/4"X12", w/connector
Order #: AM1730-12-ADT-17025
Mfg #: AM1730-12-ADT-17025
Availability: Ships in 2-3 weeks$1,550.00 - Additel AM1730-BEND-ADT-17025100Ohm Secondary PRT, -200 to 420C, 1/4",90deg Bend at 9.75ô
Order #: AM1730-BEND-ADT-17025
Mfg #: AM1730-BEND-ADT-17025
Availability: Ships in 2-3 weeks$1,865.00 - Additel AM1751-12-ADTSecondary PRT, -45 to 660C 1/4"X12", 100 Omega
Order #: AM1751-12-ADT
Mfg #: AM1751-12-ADT
Availability:In stock$2,117.00 - Additel AM1751-12-ADT-17025100Ohm Secondary PRT, -200 to 660degC , 1/4"X12", w/connector
Order #: AM1751-12-ADT-17025
Mfg #: AM1751-12-ADT-17025
Availability: Ships in 2-3 weeks$2,495.00 - Additel AM1751-BEND-ADT-17025100Ohm Secondary PRT, -200 to 660C, 1/4", 90deg Bend at 9.75ô
Order #: AM1751-BEND-ADT-17025
Mfg #: AM1751-BEND-ADT-17025
Availability: Ships in 2-3 weeks$2,995.00 - Additel AM1760-12-ADTSecondary Reference SPRT 100 Ohm, 12" x 1/4" -200C-670C
Order #: AM1760-12-ADT
Mfg #: AM1760-12-ADT
Availability: Ships in 2-3 weeks$2,965.00 - Additel AM1760-12-ADT-17025Secondary Reference SPRT 100 Ohm, 12" x 1/4" -200C-670C
Order #: AM1760-12-ADT-17025
Mfg #: AM1760-12-ADT-17025
Availability: Ships in 2-3 weeks$3,465.00 - Additel AM1760-BEND-ADTSecondary Reference SPRT 100 Ohm,1/4" OD,90deg Bend at 9.75ô
Order #: AM1760-BEND-ADT
Mfg #: AM1760-BEND-ADT
Availability: Ships in 2-3 weeks$3,265.00 - Additel AM1760-BEND-ADT-17025Secondary Reference SPRT 100 Ohm,1/4" OD,90deg Bend at 9.75ô
Order #: AM1760-BEND-ADT-17025
Mfg #: AM1760-BEND-ADT-17025
Availability: Ships in 2-3 weeks$3,765.00 - Additel AM1762-12-ADTSecondary Reference SPRT 25Ohm - 12" x 1/4" -200degC - 670degC
Order #: AM1762-12-ADT
Mfg #: AM1762-12-ADT
Availability: Ships in 2-3 weeks$2,965.00 - Additel AM1762-12-ADT-17025Secondary Reference SPRT 25Ohm - 12" x 1/4" -200degC - 670degC
Order #: AM1762-12-ADT-17025
Mfg #: AM1762-12-ADT-17025
Availability: Ships in 2-3 weeks$3,465.00 - Additel AM1762-BEND-ADTSecondary Reference SPRT 25Ohm, 1/4" OD, 90deg Bend at 9.75ô
Order #: AM1762-BEND-ADT
Mfg #: AM1762-BEND-ADT
Availability: Ships in 2-3 weeks$3,265.00 - Additel AM1762-BEND-ADT-17025Secondary Reference SPRT 25Ohm, 1/4" OD, 90deg Bend at 9.75ô
Order #: AM1762-BEND-ADT-17025
Mfg #: AM1762-BEND-ADT-17025
Availability: Ships in 2-3 weeks$3,765.00 - Additel 9915-875Carrying Case for ADT875-1210 or ADT878-1210 with Wheels
Order #: 9915-875
Mfg #: 9915-875
Availability: Ships in 2-3 weeks$735.00 - Additel 9080Cold Junction Kit (incl TC Plug, Cable, S,R,B,K,J,T,E,N)
Order #: 9080ADT
Mfg #: 9080
Availability: Ships in 2-3 weeks$468.00 - Additel ADT878-TPW-KITMini triple point of water cell kit for the ADT878-160
Order #: ADT878-TPW-KIT
Mfg #: ADT878-TPW-KIT
Availability: Ships in 2-3 weeks$1,553.00 - Additel ADT110-878-H-INSERT-AInsert A for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-A
Mfg #: ADT110-878-H-INSERT-A
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-BInsert B for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-B
Mfg #: ADT110-878-H-INSERT-B
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-CInsert C for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-C
Mfg #: ADT110-878-H-INSERT-C
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-DInsert D for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-D
Mfg #: ADT110-878-H-INSERT-D
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-EInsert E for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-E
Mfg #: ADT110-878-H-INSERT-E
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-FInsert F for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-F
Mfg #: ADT110-878-H-INSERT-F
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-GInsert G for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-G
Mfg #: ADT110-878-H-INSERT-G
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-HInsert H for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-H
Mfg #: ADT110-878-H-INSERT-H
Availability: Ships in 2-3 weeks$788.00 - Additel ADT110-878-H-INSERT-ZInsert Z for ADT878, High Temperature
Order #: ADT110-878-H-INSERT-Z
Mfg #: ADT110-878-H-INSERT-Z
Availability: Ships in 2-3 weeks$482.00 - Additel ADT110-878-L-INSERT-AInsert A for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-A
Mfg #: ADT110-878-L-INSERT-A
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-L-INSERT-BInsert B for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-B
Mfg #: ADT110-878-L-INSERT-B
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-L-INSERT-CInsert C for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-C
Mfg #: ADT110-878-L-INSERT-C
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-L-INSERT-DInsert D for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-D
Mfg #: ADT110-878-L-INSERT-D
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-L-INSERT-EInsert E for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-E
Mfg #: ADT110-878-L-INSERT-E
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-L-INSERT-FInsert F for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-F
Mfg #: ADT110-878-L-INSERT-F
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-L-INSERT-GInsert G for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-G
Mfg #: ADT110-878-L-INSERT-G
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-L-INSERT-HInsert H for ADT878, Low Temperature
Order #: ADT110-878-L-INSERT-H
Mfg #: ADT110-878-L-INSERT-H
Availability: Ships in 2-3 weeks$470.00 - Additel ADT110-878-TC-INSERT-ARInsert AR for ADT878-1210 Thermocouple Calibration Furn.
Order #: ADT110-878-TC-INSERT-AR
Mfg #: ADT110-878-TC-INSERT-AR
Availability: Ships in 2-3 weeks$1,131.00 - Additel ADT110-878-TC-INSERT-DRInsert DR for ADT878-1210 Thermocouple Calibration Furn
Order #: ADT110-878-TC-INSERT-DR
Mfg #: ADT110-878-TC-INSERT-DR
Availability: Ships in 3-4 Weeks$950.00 - Additel ADT110-878-TC-INSERT-FSInsert FS for ADT878-1210 Thermocouple Calibration Furn
Order #: ADT110-878-TC-INSERT-FS
Mfg #: ADT110-878-TC-INSERT-FS
Availability: Ships in 3-4 Weeks$1,077.00 - Additel ADT110-878-TC-INSERT-HRInsert HR for ADT878-1210 Thermocouple Ref.Calibr.Furnace
Order #: ADT110-878-TC-INSERT-HR
Mfg #: ADT110-878-TC-INSERT-HR
Availability: Ships in 2-3 weeks$1,131.00
Reference Dry Well Specifications | |||
---|---|---|---|
Specification | 878-160 | 878-425 | 878-700 |
Temperature Range at 23°C | -40°C to 160°C | 33°C to 425°C | 33°C to 700°C |
Display Accuracy | ±0.1°C at Full Range | ±0.2°C at Full Range | ±0.20°C at 33°C |
±0.20°C at 425°C | |||
±0.25°C at 660°C | |||
Stability (30 min) | ±0.005°C at Full Range | ±0.005°C at 100°C | ±0.005°C at 100°C |
±0.010°C at 225°C | ±0.015°C at 425°C | ||
±0.015°C at 425°C | ±0.030°C at 700°C | ||
Axial Uniformity at 60 mm (2.4 in) | ±0.025°C at -40°C | ±0.10°C at 100°C | ±0.10°C at 100°C |
±0.020°C at 0°C | ±0.15°C at 225°C | ±0.25°C at 425°C | |
±0.050°C at 160°C | ±0.25°C at 425°C | ±0.40°C at 700°C | |
Axial Uniformity at 80 mm (3.15 in) | ±0.050°C at -40°C | ±0.15°C at 100°C | ±0.15°C at 100°C |
±0.040°C at 0°C | ±0.20°C at 225°C | ±0.30°C at 425°C | |
±0.050°C at 160°C | ±0.30°C at 425°C | ±0.60°C at 700°C | |
Radial Uniformity | ±0.01°C at Full Range | ±0.025°C at 100°C | ±0.025°C at 100°C |
±0.030°C at 225°C | ±0.040°C at 425°C | ||
±0.040°C at 425°C | ±0.060°C at 700°C | ||
Loading Effect | ±0.08°C (Display Sensor) | ±0.05°C (Display Sensor) | ±0.02°C at 100°C |
±0.05°C at 425°C | |||
±0.15°C at 700°C | |||
±0.010°C (External Sensor) | ±0.01°C (External Sensor) | ±0.01°C at 100°C | |
±0.02°C at 425°C | |||
±0.03°C at 700°C | |||
Hysteresis (Display Sensor) | 0.025°C | 0.04°C | 0.07°C |
Environmental Conditions | 8°C to 38°C guaranteed accuracy | ||
0°C to 50°C, 0% to 90% RH non-condensing | |||
Storage Conditions | -20°C to 60°C | ||
IP Rating | IP20 | ||
Immersion Depth | 160 mm (1.30 in) | 193 mm (7.60 in) | |
Insert OD | 31.9 mm (1.26 in) | 30.8 mm (1.21 in) | |
Heating Time | 4 min: -40°C to 23°C | 15 min: 23°C to 425°C | 25 min: 23°C to 700°C |
10 min: 23°C to 160°C | |||
Cooling Time | 8 min: 160°C to 23°C | 24 min: 425°C to 100°C | 30 min: 700°C to 100°C |
15 min: 23°C to -40°C | 15 min: 100°C to 50°C | 15 min: 100°C to 50°C | |
Typical Time to Stability | 10 min | ||
Resolution | 0.001°C | ||
Units | °C, °F, and K | ||
Display | 6.5 in (165 mm) color touch screen | ||
Size (H x W x D) | 170 x 345 x 330 mm (6.69 x 13.58 x 13.0 in) | ||
Weight | 11.2 kg (24.7 lbs) | 9.7 kg (21.4 lbs) | |
Power Requirements | 90-254 VAC, 45-65 Hz, 580 W | 90-25 VAC, 45-65 Hz, 1400 W | |
Communication | USB A, USB B, RJ45, WiFi, Bluetooth | ||
Localization | English, Chinese, Japanese, Russian, German, Fr | ||
Warranty | 1 year |
Secondary PRT Information | |||
---|---|---|---|
Specification | AM1710 Series | AM1730 Series | AM1751 Series |
Temperature Range | -60°C to 160°C | -200°C to 420°C | -200°C to 670°C |
Resistance at 0°C | Nominal 100? | ||
Temperature Coefficient | 0.003925 ? / ? / °C | ||
Accuracy | ±0.025°C at -40°C | ±0.025°C at -196°C | ±0.025°C at -196°C |
±0.015°C at 0.01°C | ±0.015°C at 0.01°C | ±0.015°C at 0.01°C | |
±0.025°C at 160°C | ±0.035°C at 420°C | ±0.035°C at 420°C | |
±0.05°C at 661°C | |||
Drift | ±0.01°C at TPW after 100 hours at 160°C | ±0.01°C at TPW after 100 hours at 420°C | ±0.01°C at TPW after 100 hours at 661°C |
Short Term Stability | ±0.007°C | ||
Thermal Shock | ±0.005°C after 10 times thermal cycles from minimum to maximum temperatures | ||
Hysteresis | <=0.005°C | ||
Self-heating | 50 mW/°C | ||
Response Time | 9 seconds for 63% response to step change in water moving at 3 feet per second | ||
Measurement Current | 0.5 mA or 1 mA | ||
Sensor Length | 32 mm | ||
Sensor Location | 5 mm from tip | ||
Insulation Resistance | >1000 M? at room temperature | ||
Sheath Material | Stainless Steel | Inconeltm | |
Dimension | AM1710-12-ADT, 0.25 in dia X 12 in (6.35 mm X 305 mm) | AM1730-12-ADT, 0.25 in dia X 12 in (6.35 mm X 305 mm) | AM1751-12-ADT, 0.25 in dia X 12 in (6.35 mm X 305 mm) |
AM1710-BEND-ADT, 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end | AM1730-BEND-ADT, 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end | AM1751-BEND-ADT, 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end | |
External Leads | Teflontm -insulated copper wire, 4 leads, 2.5 meters | ||
Handle Dimension | 15 mm (OD) x 65 mm (L) | ||
Handle Temperature Range[1] | -50°C to 160°C | -50°C to 180°C | |
Optional Calibration | NIST traceable calibration and data available per request | ||
[1] Handle temperature outside this range will cause damage to the probe. | |||
* PRT Information from www.accumac.com |
Specifications | |
---|---|
Specification | Display |
Uncertainty | <0.0005°C [1] |
Immersion depth/ID | 115 mm X 8 mm |
External Dimensions | 160 mm X 25 mm |
Cell material | Borosilicate Glass |
Realization time | 20 mins |
Estimated working time | 2 hours |
Recommended thermal Fluid | Ethanol |
Warranty | 1 year |
