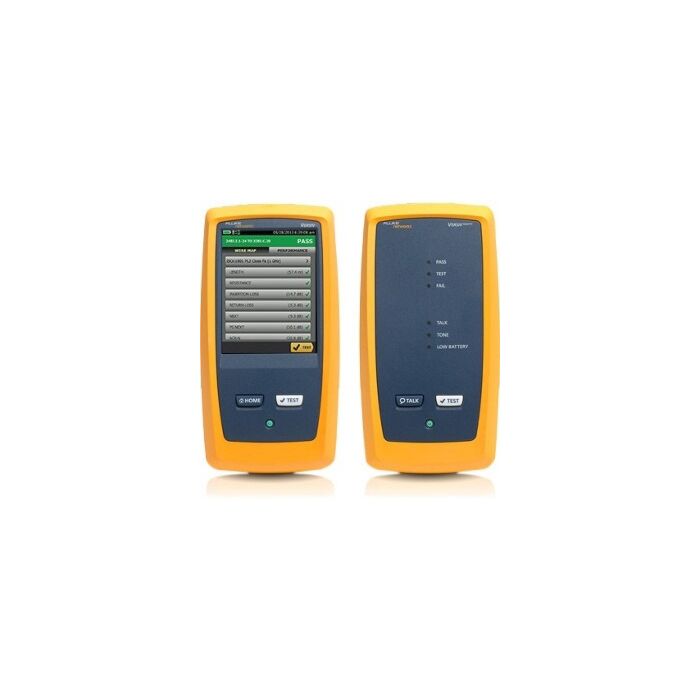

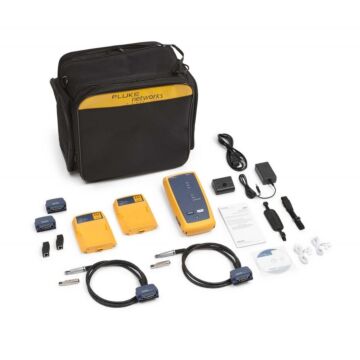

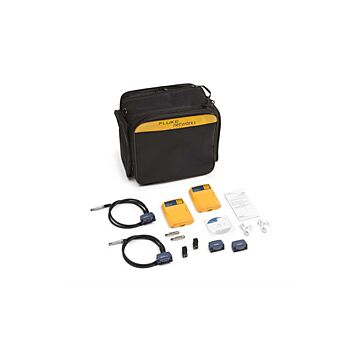

Fluke Networks DSX-5000 MOD 1GHz DSX Replacement Module for DSX-5000

Order # DSX-5000 MOD | Mfg # 4329735

$5,644.07

Ships in 2-3 weeks

The Fluke Networks DSX-5000 MOD is the DSX-5000 Module Add-on Kit. This item should be ordered when you already own a Versiv Mainframe, but need DSX-5000 CableAnalyzer Modules for Copper Certification. The Fluke Networks Versiv family of cable testers offer modular solutions for every copper and fiber cable testing application. Check out our DSX-5000 product page to view all of your ordering options.

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States only.

Overview

Product Highlights

This is a 1 GHZ DSX Replacement Module.

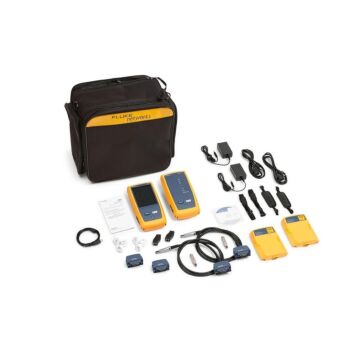

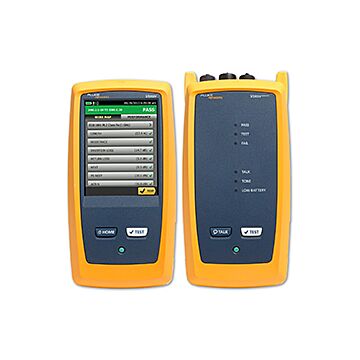

Fluke DSX CableAnalyzer Features

Built-in Versiv technology allows operators to quickly and accurately test cables while reducing the need for multiple testing systems
LinkWare™ management software provides detailed, easily understood test result analysis with professional-grade report development
ETL Verified to IEC Level V and recommended by leading cabling vendors
Onboard Dedicated Diagnostics functionality included with all DSX tools, which helps reduce the time needed to fix faulty cables
Well-lit, easy-to-use Taptive™ interface designed for technicians of all skill levels
ProjX system designed to keep tasks in order from start to finish and help remove repetitive steps that could slow the testing process
Tough, durable construction that can handle harsh environments
Highly valuable multi-tool system capable of handling copper certification processes, fiber loss, and Wi-Fi system troubleshooting for multiple industries

Technical Resources

Fluke Networks Versiv Product Datasheet
Fluke Networks DSX CableAnalyzer Brochure
Fluke Networks DSX CableAnalyzer Datasheet

Specifications

Cable Types
Shielded and unshielded pair LAN cabling	TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω

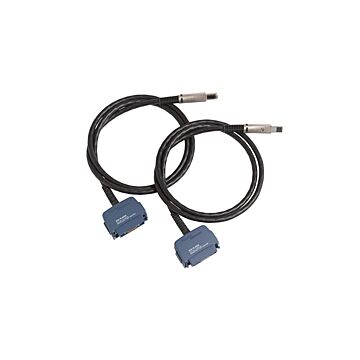

Standard Link Interface Adapters
Permanent link adapters	Plug type: shielded RJ45

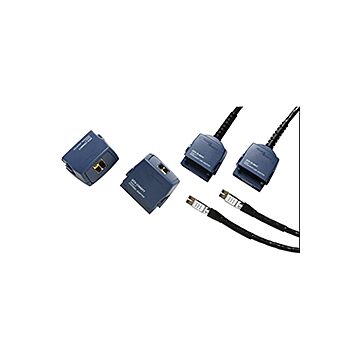

Permanent link adapters	Optional Plug type: Tera

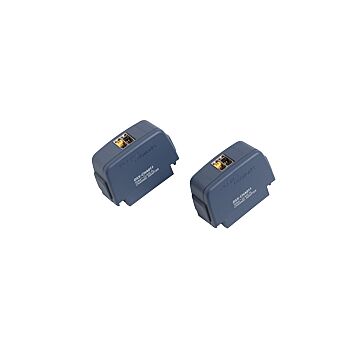

Channel Adapters	Jack type: shielded RJ45

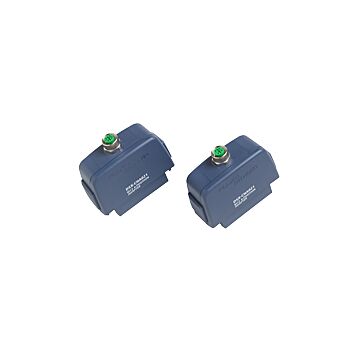

Channel Adapters	Optional Jack type: Tera
Test Standards
TIA	Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
ISO/IEC	Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments
Maximum frequency	1200 MHz
General Specifications
Speed of Autotest	Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests)	Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-tocrosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection	Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display	5.7 in LCD display with a projected capacitance touchscreen
Case	High impact plastic with show absorbing overmold
Dimensions	Main Versiv unit with DSX-5000 module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight	Main Versiv unit with DSX-5000 module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote	Lithium ion battery pack, 7.2 V
Typical battery life	8 hours
Charge time*	Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
Languages supported	English, French, German, Spanish, Portuguese, Italian, Japanese and Simplified Chinese
Calibration	Service center calibration period is 1 year
