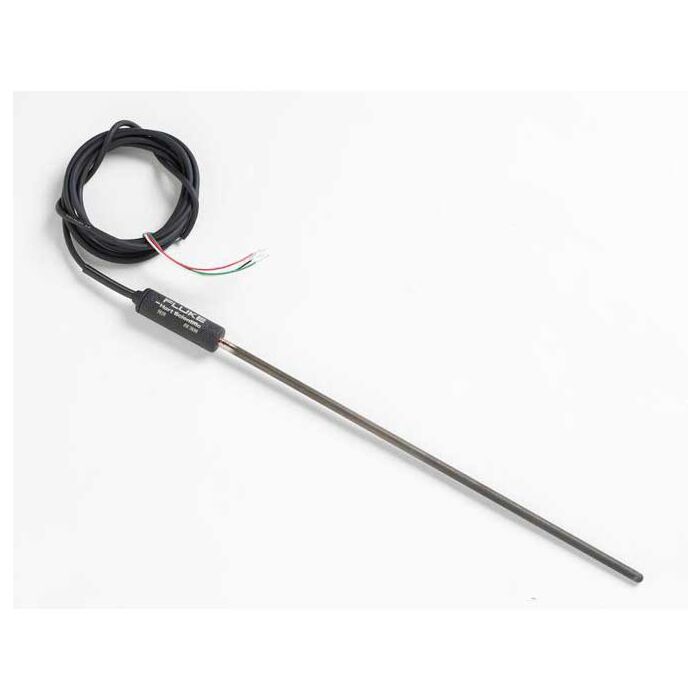

Fluke Calibration 5628-15-D Secondary Standard PRT, 0.25" x 15", 25ohm, -200C to 661C, 5-pin DI
Secondary Std PRT, 0.25" x 15", 25ohm, -200C to 661C, 5-pin DI
Order #: 5628-15-D
Mfg #: 1654573
$3,343.00
Fluke Calibration 5628-15-D Secondary Standard PRT, 0.25" x 15", 25ohm, -200C to 661C, 5-pin DI
Secondary Std PRT, 0.25" x 15", 25ohm, -200C to 661C, 5-pin DI
Order #: 5628-15-D
Mfg #: 1654573
$3,343.00
Availability: Call for availability
Product Highlights
- Secondary Standard PRT Temperature Sensors
- High-temp PRT, 25.5Ω
- Temperature Range: –200 °C to 661 °C
- Handle Temp: 0 °C to 80 °C
- RTPW: 25.5Ω (±0.5Ω)
- W(Ga): ³ 1.11807
- Calibration Uncertainty (k=2): ±0.006 °C at –200 °C ±0.004 °C at 0 °C ±0.009 °C at 420 °C ±0.014 °C at 661 °C
- Stability: ±0.003 °C
- Long-Term Drift: < 0.03 °C/500 hours at 661 °C
- Immersion: At least 12.7 cm (5 in) recommended
- Sheath: Inconel™ 600
- Lead Wires: 4-wire Super-Flex PVC, 22 AGW
- Termination: 5 Pin DIN for 1502A
- Size: 0.25" dia. x 15"
Each Unit Includes
- Accredited Calibration
