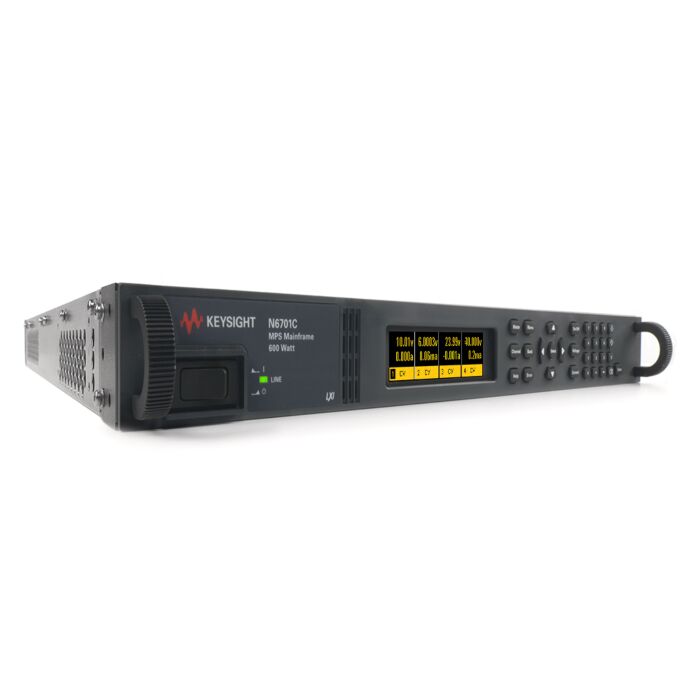

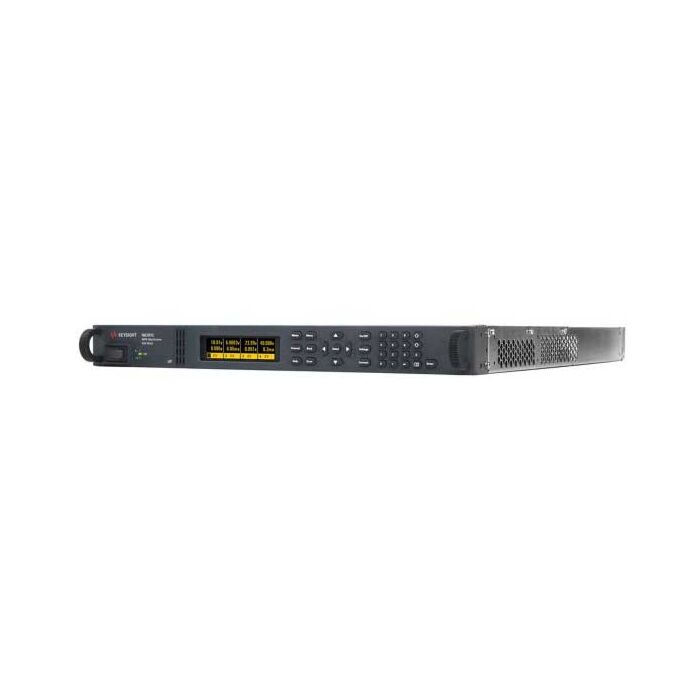

Keysight N6701C Lo-Profile Modular Power System Mainframe, 600W, GPIB, LAN, USB, LX

Order # N6701C

Mfg # N6701C

800-828-1470

$4,251.00

Overview
Technical Resources
Accessories

Home

Keysight N6701C Lo-Profile Modular Power System Mainframe, 600W, GPIB, LAN, USB, LX

Keysight N6701C Lo-Profile Modular Power System Mainframe, 600W, GPIB, LAN, USB, LX

Order # N6701C | Mfg # N6701C

$4,251.00

In stock

Log in for Member Pricing

Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

The MPS (Modular Power System) power supplies series of N6700C Keysight (formerly Agilent's Electronic Test) is a modular configuration of power supply with a height of only one height unit for multiple applications in laboratory and production environments. Thanks to the wide selection of different power supply modules, the N6700C Modular Power Supply is ideally suited to any user application.

For integration into test benches and remote control applications via a PC, the N6700 power supply can be controlled via the standard USB, GPIB or LAN interface. The N6700 is fully LXI compatible and offers an integrated web server for remote control over LAN.

Maximum total output power (= Sum of Total Module Output Power)
- 600 W when operating from 100 - 240 VAC input
AC input
- Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
- Input Range: 86 VAC - 264 VAC
- Power Consumption: 1500 VA typical
- Fuse Internal fuse (not customer accessible)
Protection response characteristics
- INH input: 5 µs from receipt of inhibit to start of shutdown
- Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)
Modular design, max. 4 DC power supply modules possible
Maximum output power 400W for all outputs common
Over 30 DC power modules up to max. 150V / 50A available
4 outputs with fine sense (sense) for the test voltage supply
Parallel / serial switching of outputs possible
Readback of current and voltage (integrated in power supply modules)
Memory for device settings
Synchronization to other measuring devices via trigger inputs and outputs
Protection functions can be set for all outputs (overvoltage, overcurrent and overtemperature protection)
Off / On Switch for outputs (optional for the individual DC power modules)
Temperature controlled fan

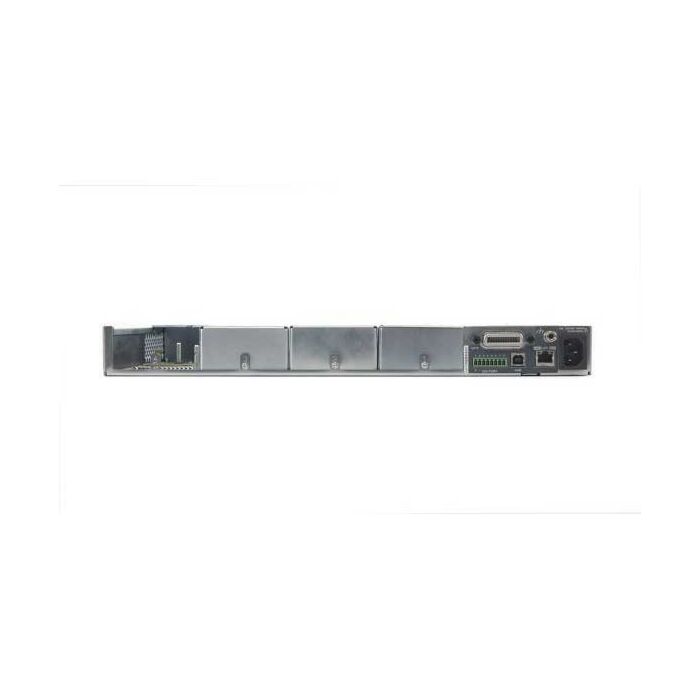

Interfaces: USB 2.0, GPIB interface, LAN interface
LXI Class C compatible
Built-in web server for remote control
Dimensions: B432.5 x D 549.7 x H44.45 mm (19 inches - 1HE)
Weight with 4 DC power supply modules: 12.73 kg
Warranty: 3 years
Includes BV0003B Power Supply app

Technical Resources

Keysight Technologies N6700 Series Datasheet
Keysight Technologies N6700 Series User Manual
Keysight Technologies N6700 Series Specifications Guide
Keysight Technologies N6700 Series Fact Sheet

Keysight N6701C Lo-Profile Modular Power System Mainframe, 600W, GPIB, LAN, USB, LX Accessories

Select

Keysight Agilent N6708A Filler Panel Kit

Keysight N6708A Filler Panel Kit for Low- Profile MPS Mainframes, 3 panels

$76.49

Select

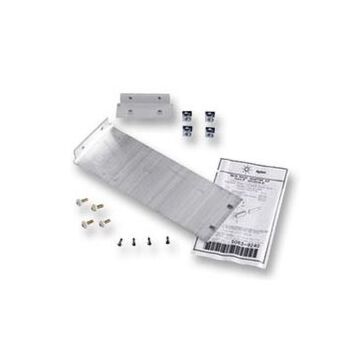

Keysight N6709C Rack Mount Kit for Low-Profile Modular Power System Mainframes

$199.00

Select

Keysight Technologies N6731B DC Power Module 5V,10A, 50W, N6700 Series

Keysight N6731B DC Power Module, 5V, 10A, 50W, N6700 Series

$780.00

Select

Keysight Agilent N6732B DC Power Module 8V, 6.25A, 50W

Keysight N6732B DC Power Module, 8V, 6.25A, 50W, N6700 Series

$780.00

Select

Keysight Agilent N6733B DC Power Module, 20V, 2.5A, 50W

Keysight N6733B DC Power Module, 20V, 2.5A, 50W, N6700 Series

$780.00

Select

Keysight Technologies N6733B-A6J Instrument Option

Keysight N6733B-A6J Certificate of Calibration - ANSI/NCSL Z540, Printed

$326.00

Select

Keysight Agilent N6734B DC Power Module, 35V, 1.5A, 50W

Keysight N6700 DC Power Module, 35V/1.5A/50W

$780.00

Select

Keysight Agilent N6736B DC Power Module,100V, .5A, 50W

Keysight N6736B DC Power Module, 100V, .5A, 50W, N6700 Series

$780.00

Select

Keysight Agilent N6741B DC Power Module, 5V, 20A,100W

Keysight N6741B DC Power Module, 5V, 20A, 100W, N6700 Series

$1,430.00

Select

Keysight Agilent N6742B DC Power Module, 8V, 12.5A, 100W

Keysight N6742B DC Power Module, 8V, 12.5A, 100W, N6700 Series

$1,430.00

Select

Keysight Technologies N6743B

Keysight N6743B DC Power Module, 20V, 5A, 100W, N6700 Series

$1,430.00

Select

Keysight Agilent N6744B DC Power Module, 35V, 3A,100W

Keysight N6744B DC Power Module, 35V, 3A, 100W, N6700 Series

$1,430.00

Select

Keysight N6745B DC Power Module, 60V, 1.6A, 100W

Keysight N6745B DC Power Module, 60V, 1.6A, 100W

$1,430.00

Select

Keysight Agilent N6746B DC Power Module, 100V, 1A, 100W

Keysight N6746B DC Power Module, 100V, 1A, 100W, N6700 Series

$1,430.00

Select

Keysight N6751A High Performance Autoranging DC Power Module, 50W

Keysight N6751A High Performance Autoranging DC Power Module, 50W

$1,774.00

Select

Keysight Agilent N6752A DC Power Module,100W

Keysight N6752A High Performance Autoranging DC Power Module, 100W, N6700 Series

$2,444.00

Select

Keysight Agilent N6753A DC Power Module, 20V, 50A, 300W

Keysight N6753A DC Power Module, 20V, 50A, 300W, N6700 Series

$3,763.00

Select

Keysight Technologies N6754A DC Power Module, 60V, 20A, 300W, N6700 Series

Keysight N6754A DC Power Module, 60V, 20A, 300W, N6700 Series

$3,763.00

Select

Keysight Agilent N6755A DC Power Module, 20V, 50A, 500W

Keysight N6755A DC Power Module, 20V, 50A, 500W, N6700 Series

$4,288.00

Select

Keysight Technologies N6755A-761 Instrument Option

Keysight N6755A-761 Output Disconnect Relays for N6755A

$631.00

Select

Keysight Agilent N6756A DC Power Module 60V 17A 500W

Keysight N6756A DC Power Module, 60V, 17A, 500W, N6700 Series

$4,288.00

Select

Keysight Technologies N6761A Precision DC Power Module, 50W, 50V, 1.5A, N6700 Series

Keysight N6761A Precision DC Power Module, 50W, 50V, 1.5A, N6700 Series

$3,479.00

Select

Keysight N6762A Precision DC Power Module, 100 with 50V/3A

Keysight N6762A Precision DC Power Module, 100 with 50V/3A

$4,148.00

Select

Keysight Technologies N6763A Precision DC Power Module, 20V, 50A, 300W, N6700 Series

Keysight N6763A Precision DC Power Module, 20V, 50A, 300W, N6700 Series

$5,207.00

Select

Keysight Technologies N6764A Precision DC Power Module, 60V, 20A, 300W, N6700 Series

Keysight N6764A Precision DC Power Module, 60V, 20A, 300W, N6700 Series

$5,207.00

Select

Keysight Agilent N6765A Precision DC Power Module

Keysight N6765A Precision DC Power Module, 20V, 50A, 500W, N6700 Series

$5,973.00

Select

Keysight Technologies N6766A Precision DC Power Module, 60V, 17A, 500W, N6700 Series

Keysight N6766A Precision DC Power Module, 60V, 17A, 500W, N6700 Series

$5,973.00

Select

Keysight Technologies N6773A DC Power Module, 20V, 15A, 300W, N6700 Series

Keysight N6773A DC Power Module, 20V, 15A, 300W, N6700 Series

$2,092.00

Select

Keysight N6774A DC Power Module, 35V, 9A, 300W

Keysight N6774A DC Power Module, 35V, 9A, 300W

$2,092.00

Select

Keysight Technologies N6774A-760 Instrument Option

Keysight N6774A-760 Open/Close and Polarity Reversal Relays

$658.00

Select

Keysight Technologies N6775A DC Power Module, 60V, 5A, 300W, N6700 Series

Keysight N6775A DC Power Module, 60V, 5A, 300W, N6700 Series

$2,092.00

Select

Keysight Technologies N6776A DC Power Module,100V, 3A, 300W, N6700 Series

Keysight N6776A DC Power Module, 100V, 3A, 300W, N6700 Series

$2,092.00

Select

Keysight Technologies N6777A DC Power Module, 150V, 2A, 300W, N6700 Series

Keysight N6777A DC Power Module, 150V, 2A, 300W, N6700 Series

$2,092.00

Select

Keysight N6781A Source/Measure Unit for Battery Drain Analysis

Keysight N6781A Source/Measure Unit for Battery Drain Analysis

$8,422.00

Select

Keysight Technologies N6782A

Keysight N6782A Source/Measure Unit for Functional Test, 2-Quadrant

$6,725.00

Select

Keysight N6784A Source/Measure Unit, General Purpose, 4-Quadrant

Keysight N6784A Source/Measure Unit, General Purpose, 4-Quadrant

$5,905.00

Select

Keysight N6785A Source/Measure Unit for Battery Drain Analysis

Keysight N6785A Source/Measure Unit for Battery Drain Analysis

$11,479.00

Select

Keysight Technologies N6786A Source/Measure Unit Functional Test,Multiple Range

Keysight N6786A Source/Measure Unit Functional Test, Multiple Range

$9,785.00

Select

Keysight Technologies N6754A-761 Instrument Option

Keysight N6754A-761 Output Disconnect Relays option for the N6700 Series

$434.00

Select

Keysight Technologies N6705C-RBP Instrument Option

Keysight N6705C-RBP Recessed Binding Posts option for the N6700 Series

$337.00

Select

Keysight Technologies N6751A-054 Instrument Option

Keysight N6751A-054 High-Speed Test Extensions option for the N6700 Series

$987.00

Select

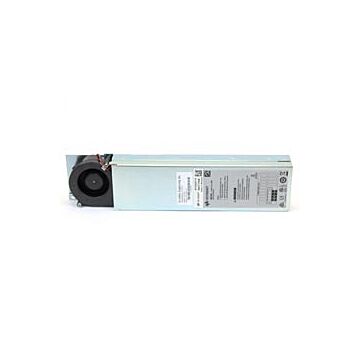

Used Keysight Technologies N6776A DC Power Module, 100V, 3A

Used Keysight / Agilent N6776A DC Power Module, 100V, 3A, 300W

$1,079.00

Select

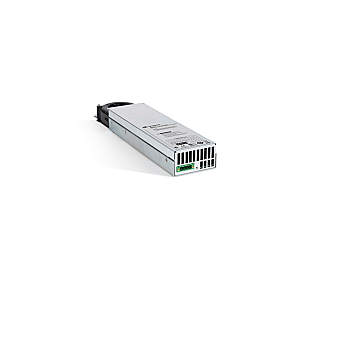

Keysight / Agilent N6752A 240x240
