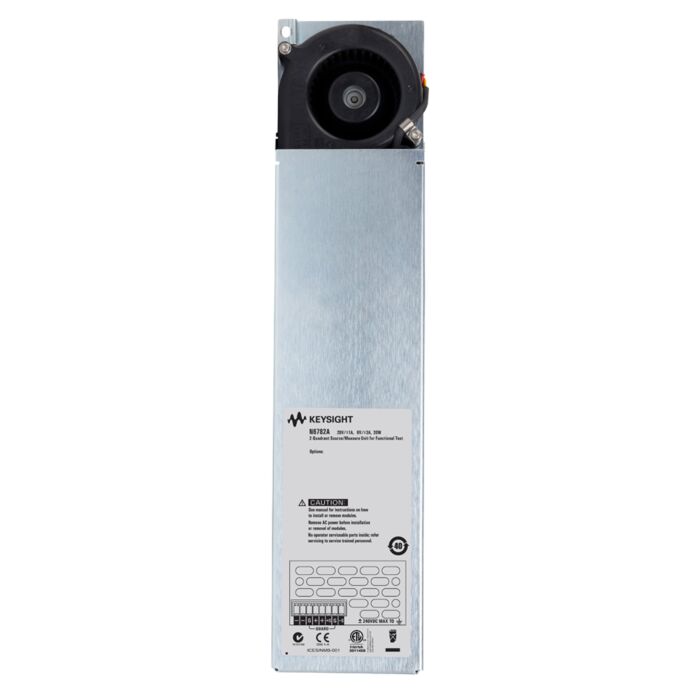

Keysight N6782A

Source/Measure Unit for Functional Test, 2-Quadrant

Order #: N6782A

Mfg #: N6782A

Questions about availability or need help? Contact Us:

$6,481.00

Qty

Keysight N6782A

Source/Measure Unit for Functional Test, 2-Quadrant

Order #: N6782A

Mfg #: N6782A

$6,481.00

Availability: Ships in 4-6 weeks

New Purchase Calibration

None

Calibration without Data + $265.65

Calibration with Data + $353.85

Accredited Calibration with Data and Uncertainties + $462.00

Add Calibration

Qty

This product is available for shipping to the United States and Canada only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Output Ratings:
Voltage: Up to 20 V
Current: Up to ±3 A
Power: 20 W
Programming Accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program):
Voltage, 20 V range: 0.025% + 1.8 mV
Voltage, 6 V range: 0.025% + 600 µV
Current, 3 A and 1 A ranges: 0.04% + 300 µA
Current, 300 mA range: 0.03% + 150 µA
Output Programming Speed:
Output voltage can change in 10 µs or at 100 kHz into a resistive load
Measurement Accuracy (at 23°C ± 5°C):
Voltage, 20 V range: 0.025% + 1.2 mV*
Current, 3 A range: 0.03% + 250 µA*
Current, 100 mA range: 0.025% + 10 µA*
Current 10 µA range: 0.025% + 8 nA
*Agilent patented feature: Seamless Measurement Ranging
