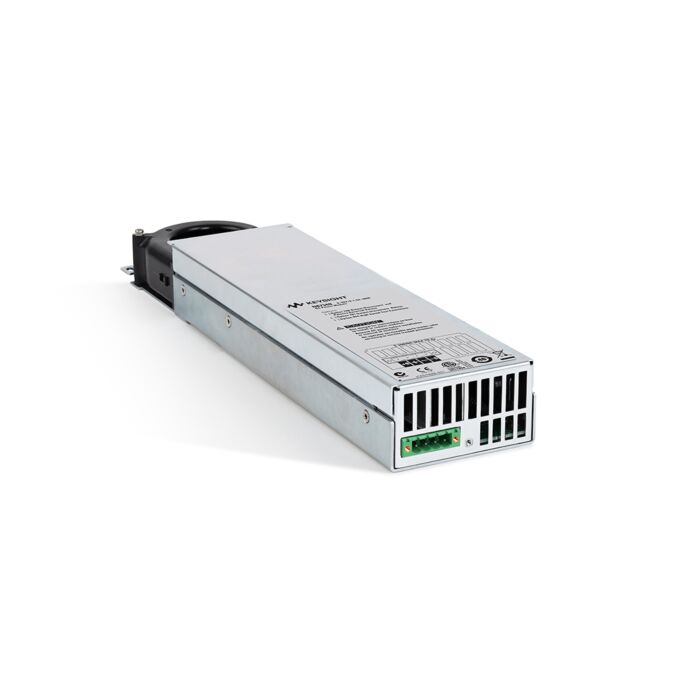

Keysight N6700 DC Power Module, 35V/1.5A/50W
DC Power Module,35V/1.5A/50W
Order #: N6734B
Mfg #: N6734B
$780.00
Keysight N6700 DC Power Module, 35V/1.5A/50W
DC Power Module,35V/1.5A/50W
Order #: N6734B
Mfg #: N6734B
$780.00
Availability: Ships in 4-6 weeks
Product Highlights
Guide to Agilent Power Supplies
Application Notes:
- Create Complex Sequences with a DC Power Supply
- Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit
- Achieve Cleaner Power Signals by Minimizing Common Sources of Noise
- Voltage: 35 V
- Current (derated 1% per °C above 40°C): 1.5 A / 3 A
- Power: 52.5 W / 105 W
- Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
- Voltage: 0.1% + 35 mV
- Current: 0.15% + 20 mA
- Ripple & Noise from 20 Hz to 20 MHz
- CV peak-to-peak: 15 mV
- CV rms: 5 mV
- (PARD) CC rms: 2 mA
- Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
- Voltage: 11 mV
- Current: 2 mA
