Keysight N6700C Lo-Profile Modular Power System Mainframe, 400W, GPIB, LAN, USB, LX

Order # N6700C

Mfg # N6700C

800-828-1470

$3,749.00

Overview
Technical Resources
Accessories

Home

Keysight N6700C Lo-Profile Modular Power System Mainframe, 400W, GPIB, LAN, USB, LX

Keysight N6700C Lo-Profile Modular Power System Mainframe, 400W, GPIB, LAN, USB, LX

Order # N6700C | Mfg # N6700C

$3,749.00

In stock

Log in for Member Pricing

Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

Maximum Total Output Power (= Sum of Total Module Output Power)
- 400 W when operating from 100 - 240 VAC input
AC Input
- Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
- Input Range: 86 VAC - 264 VAC
- Power Consumption: 1000 VA typical
- Fuse Internal fuse (not customer accessible)
Protection Response Characteristics
- INH input: 5 µs from receipt of inhibit to start of shutdown
- Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)

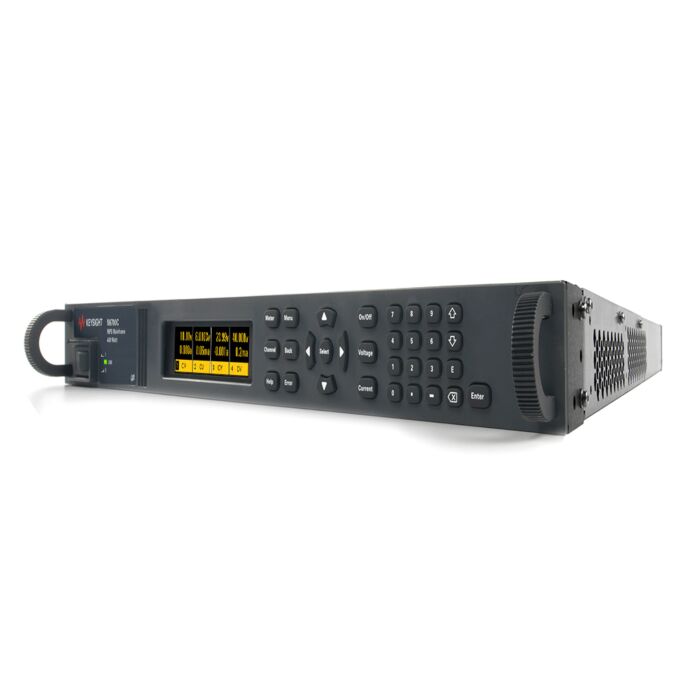

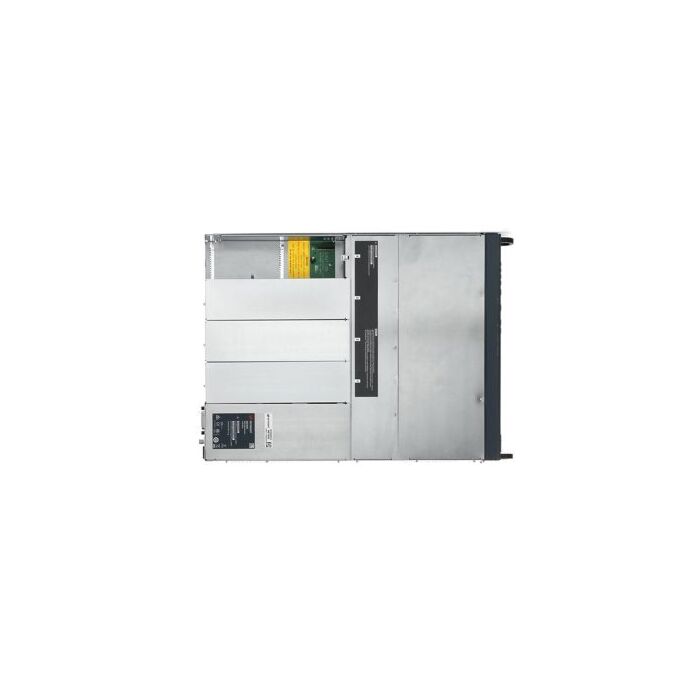

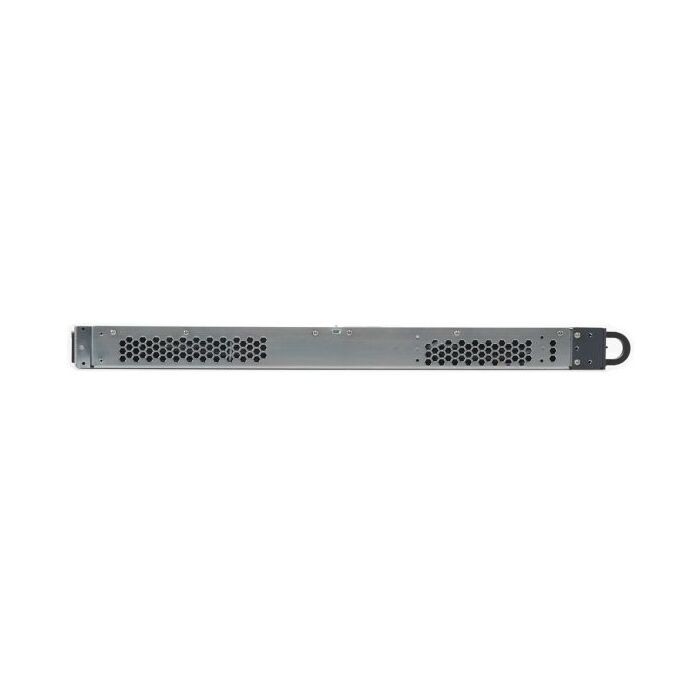

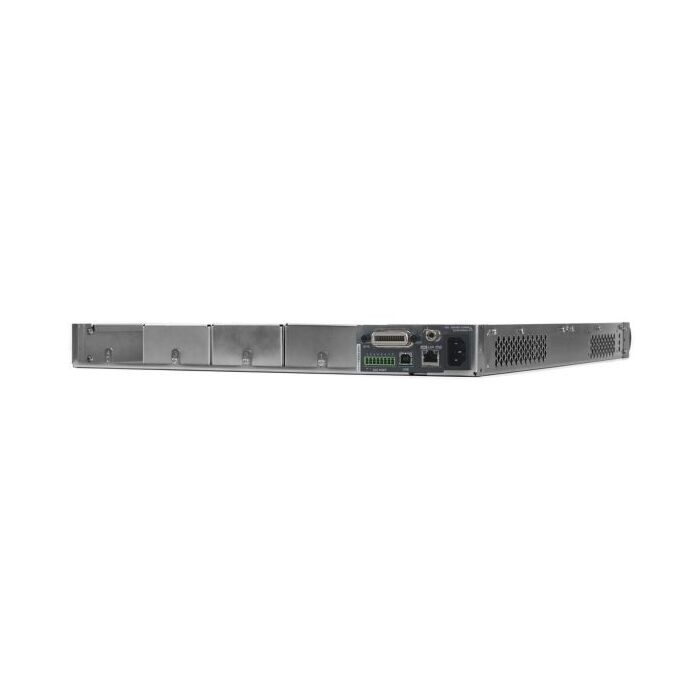

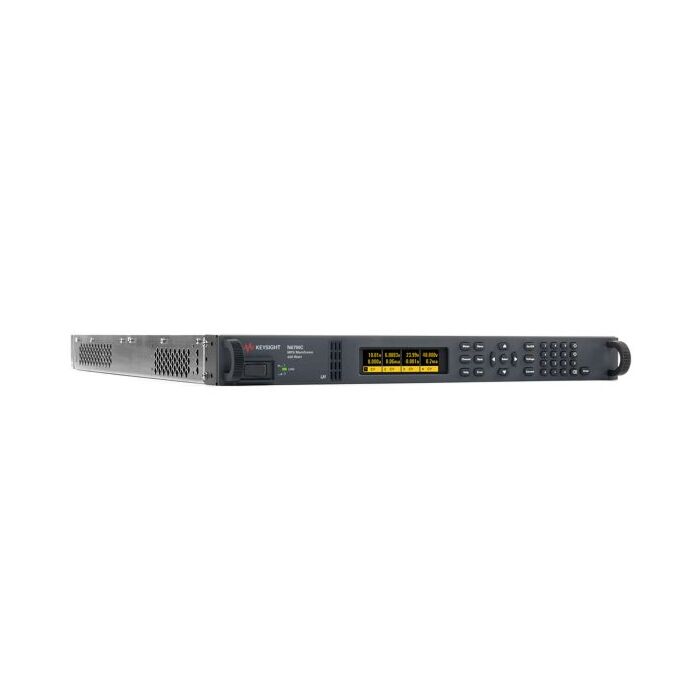

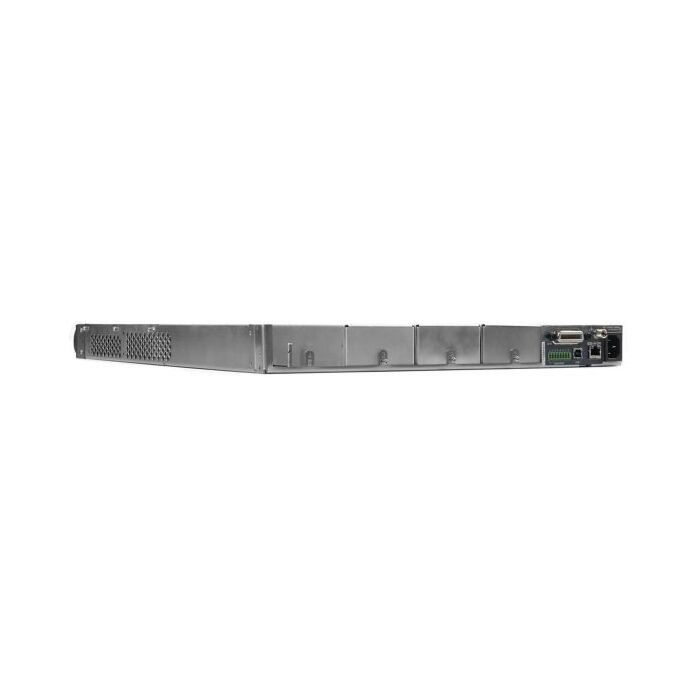

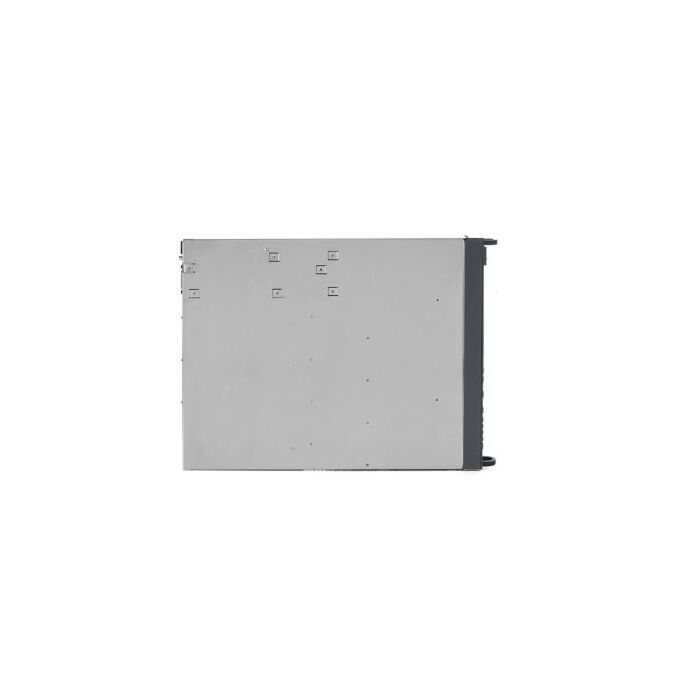

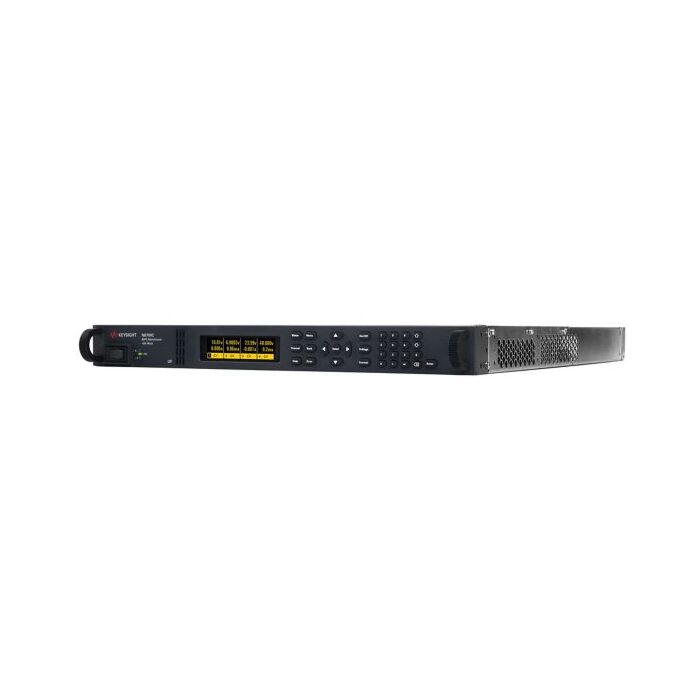

The Keysight N6700C is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700C offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 30 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 500 W.

BenchVue software enabled: Do more with your PC and instrument together, no programming required. Easily control your power supplies to set parameters and quickly build automated tests on your PC.

Technical Resources

Keysight Technologies N6700 Series Datasheet
Keysight Technologies N6700 Series User Manual
Keysight Technologies N6700 Series Specifications Guide
Keysight Technologies N6700 Series Fact Sheet

Keysight N6700C Lo-Profile Modular Power System Mainframe, 400W, GPIB, LAN, USB, LX Accessories

Select

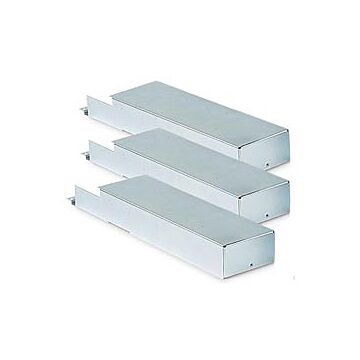

Keysight Agilent N6708A Filler Panel Kit
