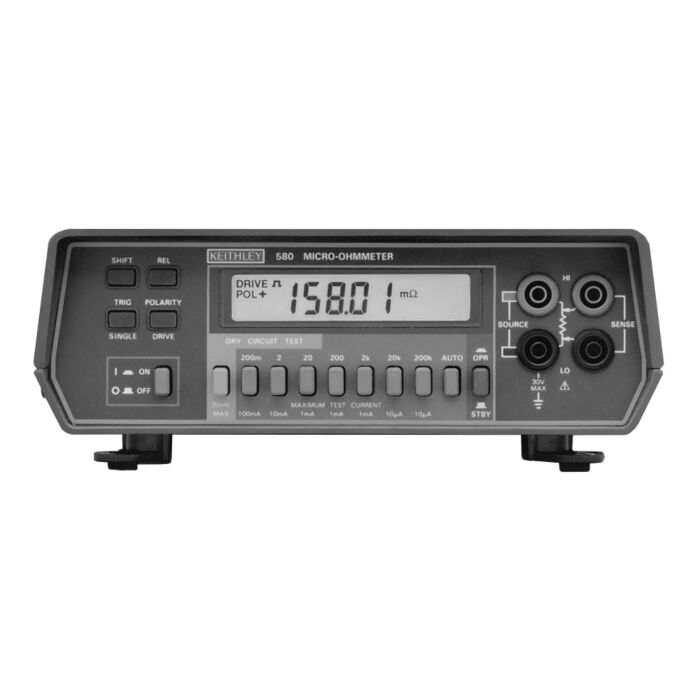

Keithley 580 for Rent, Micro-Ohmmeter, 0Hz to 60Hz
Micro-Ohmmeter, 0Hz to 60Hz

Order #: 580-RENT2

Mfg #: 580-RENT2

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Keithley 580 for Rent, Micro-Ohmmeter, 0Hz to 60Hz

Micro-Ohmmeter, 0Hz to 60Hz

Order #: 580-RENT2

Mfg #: 580-RENT2

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability:
In stock
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • 10µ sensitivity
  • 20mV voltage clamp
  • Selectable test current waveforms
  • Optional IEEE-488 interface (not included)
  • Optional battery (not included)

The Keithley 580 Micro-ohmmeter combines high accuracy, resolution, and sensitivity with three special capabilities that make micro-ohm measurements easier and more versatile than ever. When measuring contact and connector resistances, it is important not to puncture oxides and films that may have formed. The Model 580 ensures this dry-circuit condition by clamping the open-circuit test voltage to 20mV on the 200m, 2, and 20 ranges when the 20mV MAX button is pressed.

The Keithley 580 can test more devices by enabling both test current polarity and waveform (DC or pulsed) to be selected. When using pulsed test current, the Model 580 automatically compensates for thermoelectric EMFs. Tests on inductive devices are best performed using DC test current, as this avoids the effects of time constants on pulsed current resistance measurements. For temperature-sensitive components, a single trigger mode of operation minimizes power delivered to the device.
